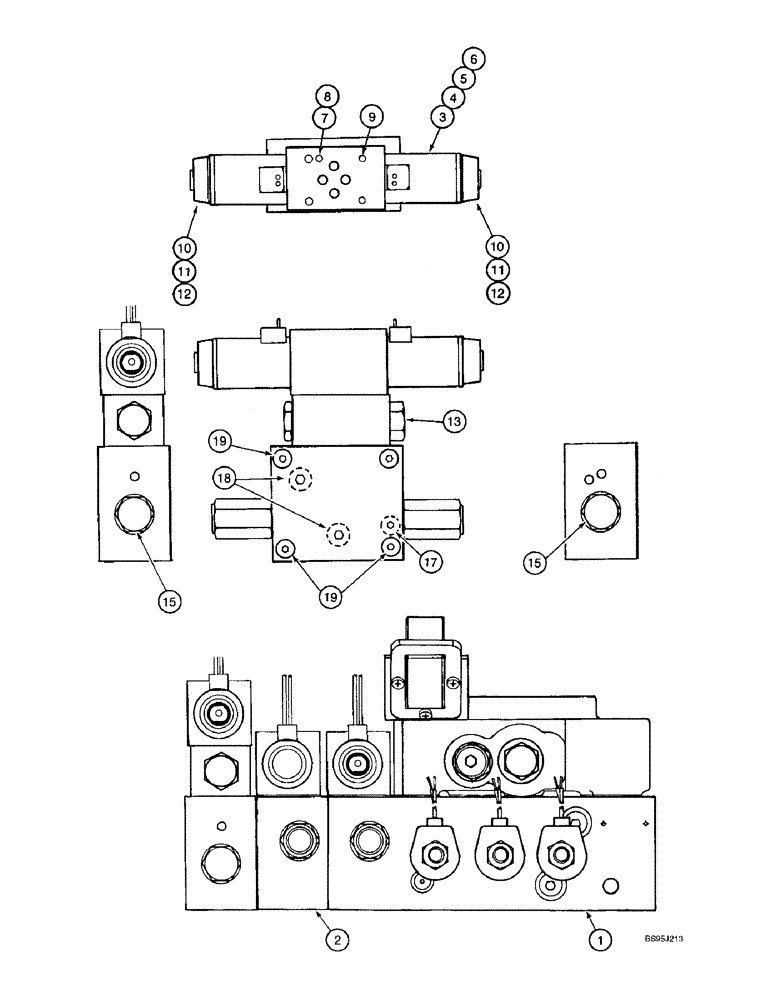

Запчасти Case IH 2188 (8-36) - CONTROL VALVE, HEADER LIFT W/FORE AND AFT AND FIELD TRACKER ASSEMBLY (07) - HYDRAULICS

124567A3

VALVE, CONTROL

VALVE ASSEMBLY - header lift with reel fore and aft and field tracker, Includes: Ref. 1 - 20

1шт.

124567A3R

REMAN-HYD VALVE

REMAN VALVE ASSEMBLY - header lift with reel fore and aft and field tracker, Includes: Ref. 1 - 20

1шт.

124567A3C

CORE-VALVE HYD

Core Return Number

1шт.

1

124565A3

VALVE, CONTROL

VALVE ASSEMBLY - header lift, parts list Figures 8-32 and 8-33A, Includes: Ref. 2 - 20

1шт.

2

131153A2

CONTROL VALVE

VALVE ASSEMBLY - reel fore and aft, parts list Figure 8-34, Includes: Ref. 3 - 20

1шт.

114854A1

CONTROL VALVE

VALVE ASSEMBLY - field tracker, Includes: Ref. 3 - 20

1шт.

190984A1

VALVE

ASSEMBLY - 4-way, 3 position, stack, Includes: Ref. 3 - 12

1шт.

3

196736A1

BODY

ARMATURE - solenoid

2шт.

4

196737A1

SPLIT PIN/SAFETY PIN

PIN - push

2шт.

5

196738A1

SPRING

- centering

2шт.

6

196739A1

WASHER

- special

2шт.

7

196710A1

PLUG

- orifice

1шт.

8

196711A1

PLUG

- orifice

1шт.

191120A1

SEAL KIT

KIT - seal replacement, 4-way, 3 position valve, not shown, parts list Figure 8-33A

1шт.

9

61-31020

HEX SOC SCREW,#10 - 24 x 1 1/4"

SCREW, , Mounting Hex Soc Hd, #10-24 x 1 1/4"

4шт.

10

191119A1

SOLENOID

- coil, with diode, 12 volt, DC

2шт.

11

188106A1

NUT

- special, solenoid coil

2шт.

12

238-5017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

-017, 70 Duro, .676" ID x .070" Thk

2шт.

13

190985A1

VALVE

ASSEMBLY - check, double pilot operated, Includes: Ref. 14

1шт.

14

191120A1

SEAL KIT

KIT - seal replacement, check valve, not shown

1шт.

15

190986A1

VALVE PRESSURE RELIE,7/8" - 14

VALVE ASSEMBLY - relief, cartridge, Includes: Ref. 16

2шт.

16

149942C1

SEAL KIT

KIT - seal replacement, relief valve, not shown

1шт.

17

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

1шт.

18

238-5117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

4шт.

19

861-10130

HEX SOC SCREW,M10 x 130mm, Cl 12.9

BOLT - hex socket, 10 - 1.5 x 130 mm, class 12.9

4шт.

20

864-10070

HEX SOC SCREW,M10 x 70mm, Cl 8.8

SCREW - hex socket, 10 - 1.5 x 70 mm, Not Used in this Application, Not shown

4шт.
