Запчасти Case IH 2188 (8-33A) - CONTROL VALVE, 4-WAY, 3 POSITION (07) - HYDRAULICS

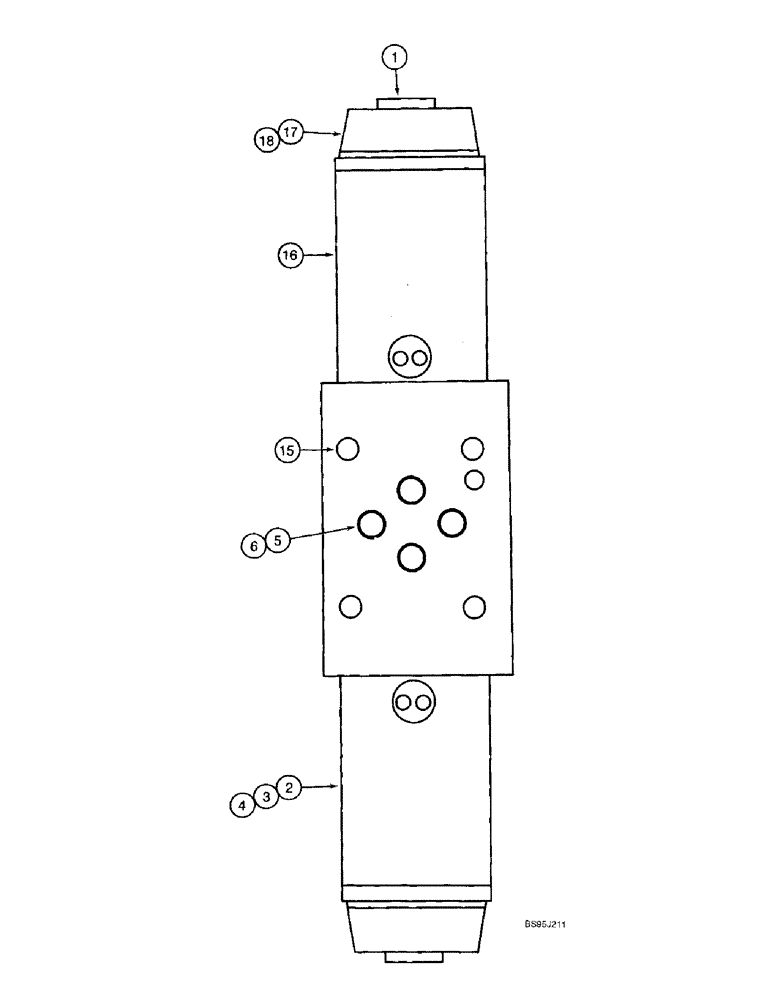

Схема запчастей Case IH 2188 - (8-33A) - CONTROL VALVE, 4-WAY, 3 POSITION (07) - HYDRAULICS
5
17
6
1
2
16
18
15
4
3

Артикул

Название

Примечание

Количество

190717A1

VALVE

ASSEMBLY - 4-way, 3 position, stack, complete, Includes: Ref. 1 - 18

1шт.

1

196736A1

BODY

ARMATURE - solenoid

2шт.

2

196737A1

SPLIT PIN/SAFETY PIN

PIN - push

2шт.

3

196738A1

SPRING

- centering

2шт.

4

196739A1

WASHER

- special

2шт.

5

196710A1

PLUG

- orifice, 0.030 inch diameter.

1шт.

6

196711A1

PLUG

- orifice, 0.040 inch diameter

1шт.

191120A1

SEAL KIT

KIT - seal replacement, 4-way, 3 position valve, not shown, no longer available, order components, Includes: Ref. 7 - 12

1шт.

7

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk

4шт.

8

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

2шт.

9

238-5017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

-017, 70 Duro, .676" ID x .070" Thk

2шт.

10

238-5020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 5, 75 Duro

-020, 70 Duro, .864" ID x .070" Thk

2шт.

11

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

2шт.

12

S83071

BACK-UP RING

RING - backup

2шт.

15

61-31020

HEX SOC SCREW,#10 - 24 x 1 1/4"

SCREW, , Mounting Hex Soc Hd, #10-24 x 1 1/4"

4шт.

16

191119A1

SOLENOID

- coil, with diode, 12 volt, DC

2шт.

17

188106A1

NUT

- special, solenoid coil

2шт.

18

238-5017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

-017, 70 Duro, .676" ID x .070" Thk

2шт.

19

235719A1

PORT

ORIFICE - restrictor, unloader swing valve, 0.026 inch diameter, not shown

1шт.

Выбрано товаров: 19
