Запчасти Case IH 2188 (8-32) - CONTROL VALVE, HEADER LIFT VALVE ASSEMBLY (07) - HYDRAULICS

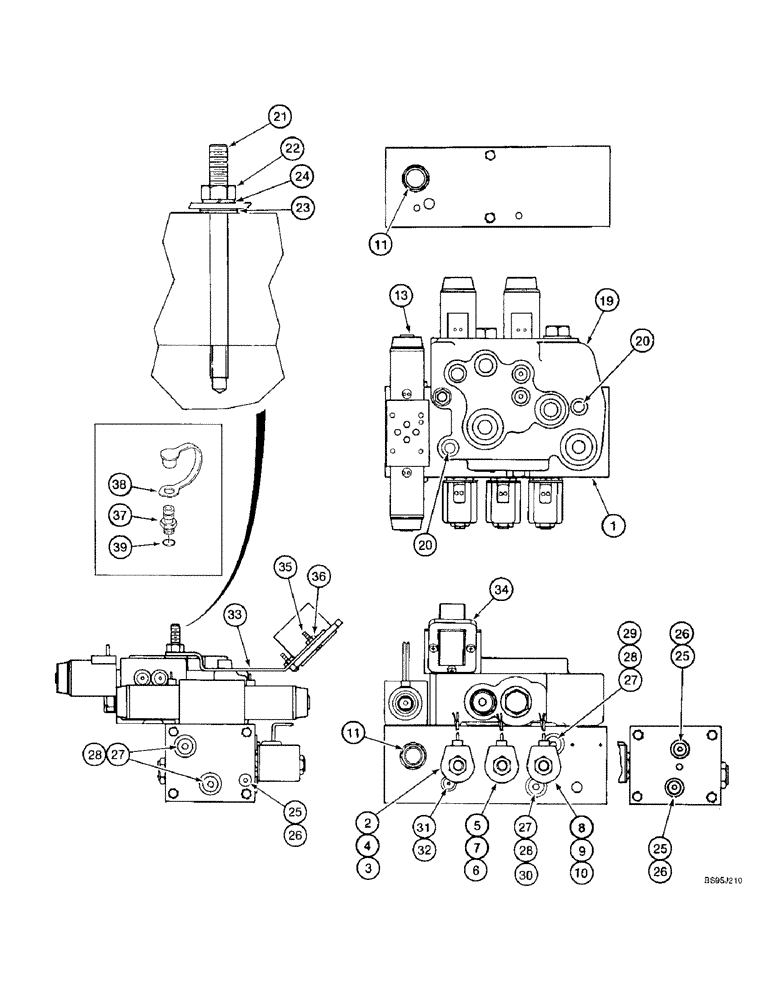

Схема запчастей Case IH 2188 - (8-32) - CONTROL VALVE, HEADER LIFT VALVE ASSEMBLY (07) - HYDRAULICS
30
27
22
26
25
24
27
9
3
39
27
6
10
11
28
28
33
7
38
26
1
25
36
20
23
31
5
29
32
26
35
34
4
13
25
20
21
19
37
28
8
2
11

Артикул

Название

Примечание

Количество

124565A3

VALVE, CONTROL

VALVE ASSEMBLY - header lift, Includes: Ref. 1 - 36

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - header lift valve, order valve assembly 124565A3

1шт.

NSS

NOT SOLD SEPARAT

VALVE ASSEMBLY - solenoid, 2-way, sense line, order components, Includes: Ref. 2 - 4

1шт.

2

191121A1

VALVE

- solenoid, 2-way, cartridge only, sense line

1шт.

3

149942C1

SEAL KIT

KIT - seal replacement, 2-way solenoid valve

1шт.

4

190715A1

SOLENOID

- coil, with diode and connector, 12 volt, DC

1шт.

190715A1 there is no plastic cover for this part. it is incorporated in the coil. NSS.

1шт.

NSS

NOT SOLD SEPARAT

VALVE ASSEMBLY - solenoid, 2-way, reel lift, order components, Includes: Ref. 5 - 7

1шт.

5

190710A1

VALVE

- solenoid, 2-way, cartridge only, reel lift

1шт.

6

149942C1

SEAL KIT

KIT - seal replacement, 2-way solenoid valve

1шт.

7

190715A1

SOLENOID

- coil, with diode and connector, 12 volt, DC

1шт.

NSS

NOT SOLD SEPARAT

VALVE ASSEMBLY - solenoid, 3-way, reel lift, order components, Includes: Ref. 8 - 10

1шт.

8

190711A1

VALVE

ASSEMBLY - solenoid, 3-way, cartridge only, reel lift

1шт.

9

1260872C91

SEAL KIT

KIT - seal replacement, 3-way solenoid valve

1шт.

10

190715A1

SOLENOID

- coil, with diode and connector, 12 volt, DC

1шт.

11

190712A1

VALVE

ASSEMBLY - check, single pilot operated, Includes: Ref. 12

2шт.

12

1260872C91

SEAL KIT

KIT - seal replacement, check valve, not shown

1шт.

13

190717A1

VALVE

ASSEMBLY - 4-way, 3 position, stack, complete, parts list Figure 8-27A

1шт.

19

186572A1

CONTROL VALVE

VALVE ASSEMBLY - header height, parts list Figure 8-38

1шт.

20

864-10080

HEX SOC SCREW,M10 x 80mm, Cl 8.8

2шт.

21

190716A1

STUD

- special, 10 - 1.5 x 130 mm

1шт.

22

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

23

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

24

892-11010

LOCK WASHER,M10

1шт.

25

278548

PLUG,Hex, 7/16"-20 ORB

Incl Ref 26 Hex Soc, 7/16"-20 ORB

3шт.

26

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

27

9625178

PLUG,9/16" - 18 ORB

Incl. Ref. 28 Hex Soc, 9/16"-18 ORB

4шт.

29

190713A1

PLUG

- orifice, 0.036 inch diameter

1шт.

30

190714A1

PLUG

- orifice, 0.055 inch diameter

1шт.

31

86632547

PLUG,Hex, 5/16"-24 ORB

Includes Ref. 32 Hex Soc, 5/16"-24 ORB

4шт.

32

237-6002

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

2-1, .239" ID x .064" Thk

1шт.

33

141440A1

SUPPORT

BRACKET - electrical connector

1шт.

34

225417C1

ELEC CONNECTOR,Male, 24 Pin, 16 - 18

CONNECTOR - electrical, 24 pin

1шт.

35

840-1420

SCREW,Pan, M4 x 20mm, Cl 4.8

- machine, pan Phillips, 4 - 0.7 x 20 mm

3шт.

36

832-10404

NUT,M4 x 0.7, Cl 8.8

NUT - hex, self-locking, 4 mm - 0.7

3шт.

37

1541849C1

COUPLING

ASSEMBLY - diagnostic, not included with header lift valve assembly, Includes: Ref. 38 and 39

2шт.

38

H434163

DUST CAP

CAP - dust

1шт.

40

235719A1

PORT

ORIFICE - restrictor, unloader swing valve, .26 inch diameter, not shown

1шт.

28

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

39

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

Выбрано товаров: 40
