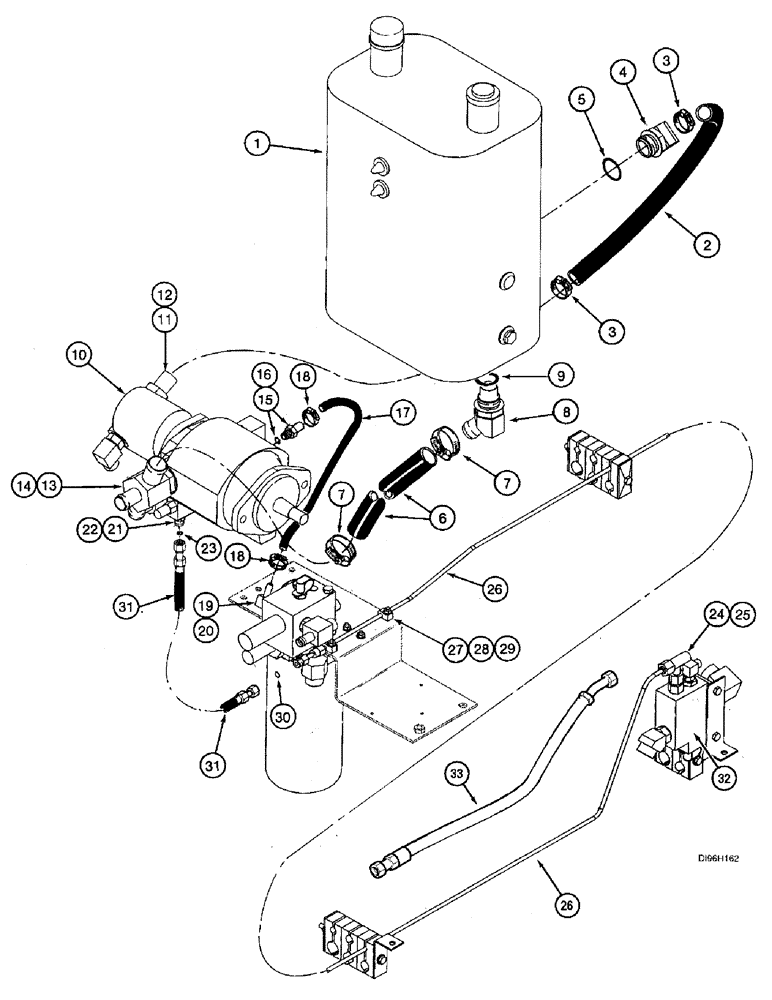

Запчасти Case IH 2188 (8-20) - AUXILIARY PUMP SUPPLY SYSTEM (07) - HYDRAULICS

1

123413A3

TANK, HYDRAULIC OIL

RESERVOIR ASSEMBLY - hydraulic oil, parts list Figure 8-2

1шт.

2

1541692C1

FLEXIBLE HOSE

HOSE - suction to reel drive pump, 25-3/16 inch (640 mm) long, cut from 1541952C1 bulk hose below

1шт.

See Figure 8-22 for tube clamps.

1шт.

3

214-3228

HOSE CLAMP,1" - 1-7/8", HD Worm, W/ Liner

CLAMP, HOSE, , Adjustable 1.00/1.875 HD Worm, W/liner

2шт.

4

217-322

FITTING,45 Degree Elbow, 1" Hose Barb x 1-5/8" - 12 Male ORB

ELBOW - 45º, 1 stem end x 1-5/8-12 inch adjustable O-ring, Incl Ref. 5

1шт.

5

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

6

184618A1

FLEXIBLE HOSE

HOSE - suction to header lift pump, 12 inch (305 mm) long, cut from 1541953C1 bulk hose below

1шт.

See Figure 8-22 for tube clamps.

1шт.

7

214-3232

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm, W/ Liner

CLAMP, HOSE, , Adjustable 1.25/2.125 HD Worm, W/liner

2шт.

8

182811A1

ELBOW

- special, 45 degree with stand pipe, Includes: Ref. 9

1шт.

9

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

10

123266A2

PUMP, HYDRAULIC

PUMP ASSEMBLY - auxiliary, tandem, parts list Figure 8-24

1шт.

11

217-179

FITTING,1" Hose Barb x 1-5/16" - 12 Male ORB

Adapter, Includes Ref. 12 1" Hose X 1 5/16"-12 ORB, Beaded

1шт.

12

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

13

182813A1

TEE

- special, 1-1/4 x 1 x 1 inch beaded tube, Includes: Ref. 14

1шт.

14

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

15

217-387

FITTING,3/8" Hose Barb x 9/16" - 18 Male ORB

ADAPTER - straight, 3/8 stem end x 9/16-18 inch O-ring boss, Includes: Ref. 16

1шт.

17

NSS

NOT SOLD SEPARAT

HOSE - pump case drain, 17-1/2 inch (445 mm) long, cut from S118400X bulk hose below

1шт.

See figure 8-22 for tube clamps.

1шт.

18

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

CLAMP, HOSE, , Adjustable #6, 0.44/0.78 Type M Worm

2шт.

19

113896A1

TEE

- special, 3/8 x 3/8 inch beaded tube, Includes: Ref. 20

1шт.

21

201-100

HYD CONNECTOR,9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

ADAPTER - straight, 9/16-18 face seal x 7/16-20 inch O-ring boss, Includes: Ref. 22 and 23

1шт.

22

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

23

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

24

201-434

TEE,11/16"-18 ORFS x 11/16"-18 Sw Br

- 11/16-16 inch swivel face seal branch x face seal x face seal, Includes: Ref. 25

1шт.

25

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

26

124378A2

HYD TUBE

TUBE - pump signal, at priority valve, no longer available, order Ref. 34 - 38

1шт.

See Figuree 8-22 for tube clamps.

1шт.

27

183820C1

CLAMP

- pump signal tube, if used

2шт.

28

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

2шт.

29

231-5344

FLANGE NUT,Flg, 1/4"-20

NUT, LOCK, Flg, 1/4"-20

2шт.

30

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

If used -011, 90 Duro, .301" ID x .070" Thk

1шт.

255786A1

PACKAGE

KIT - signal hose, includes instructions, Includes: Ref. 31and 31A

1шт.

31

127993A1

HOSE

- pump signal, at pump, 20-7/8 inch (530 mm) long, order kit

1шт.

31a

201-145

REDUCER,9/16"-18 Male x 11/16"-16 Fem, ORFS

ADAPTER - reducing, 9/16-18 face seal x 11/16-16 inch female face, not shown

1шт.

32

114851A2

VALVE

ASSEMBLY - priority, steering, parts list Figure 5-50

1шт.

33

249348A1

TUBE,230 mm Length

HOSE - 9-3/64 inch (230 mm) long

1шт.

34

252596A1

TUBE,0.375" OD, 2106.5 mm Length

- signal, not shown

1шт.

This is the new larger diameter 3/8 inch tube to replace the old 1/4 inch diameter line.

1шт.

35

249348A1

TUBE,230 mm Length

HOSE - signal tube, 9-3/64 inch (230 mm) long, not shown

2шт.

Is used to repair the old 1/4 signal line tubing if the failure is at steering priority valve. See NHE SB 027 97 BB

1шт.

36

255212A1

CLAMP

- hydraulic tube, not shown

2шт.

38

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Not shown -012, 90 Duro, .364" ID x .070" Thk

1шт.

1541952C1

HOSE,25.4mm ID x 7620mm L

- bulk, 1 (25) ID x 300 inch (7620 mm) long

1шт.

See Figure 8-22 for tube clamps.

1шт.

1541953C1

HOSE

- bulk, 1-1/4 (32) ID x 300 inch (7620 mm) long

1шт.

See Figure 8-22 for tube clamps.

1шт.

S118400X

LARGE HOSE,9.53mm ID x 7620mm L, SAE 30R2

HOSE - bulk, 3/8 (10) x 5/8 (15) x 300 inch (7620 mm) long

1шт.

See Figure 8-22 for tube clamps.

1шт.

37

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

Not shown Hex, 1/4"-20 x 1 1/4", G5

2шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

20

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
