Запчасти Case IH 2188 (8-18) - AUXILIARY OIL COOLER AND MOUNTING, RICE COMBINE (07) - HYDRAULICS

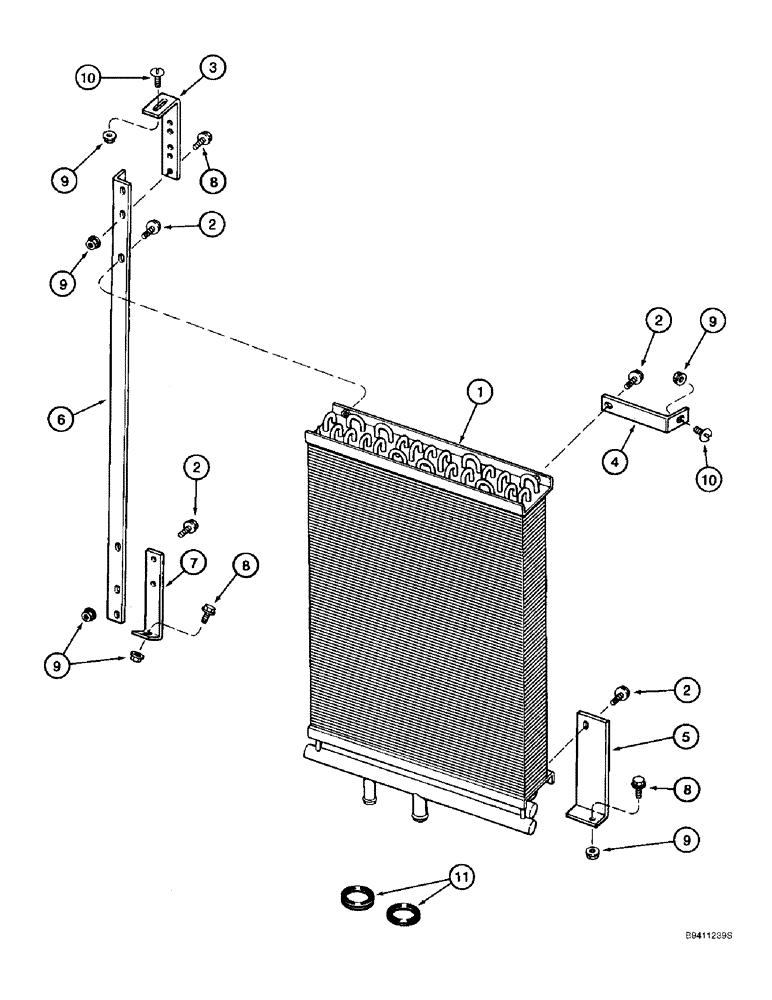

Схема запчастей Case IH 2188 - (8-18) - AUXILIARY OIL COOLER AND MOUNTING, RICE COMBINE (07) - HYDRAULICS
5
11
2
8
9
2
7
3
9
1
9
9
2
8
4
10
6
9
8
10
2

Артикул

Название

Примечание

Количество

1

135483A1

COOLER

- hydraulic oil

1шт.

2

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

4шт.

3

1979632C2

SUPPORT

- oil cooler, upper, left-hand

1шт.

4

1979674C1

SUPPORT

- oil cooler, upper, right-hand

1шт.

5

1979787C2

SUPPORT

- oil cooler, lower, right-hand

1шт.

6

1979633C2

SUPPORT

- oil cooler, left-hand

1шт.

7

1979673C2

SUPPORT

- oil cooler, lower, left-hand

1шт.

8

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

6шт.

9

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

8шт.

10

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

2шт.

11

1970461C1

GROMMET

- rubber, 1-3/8 x 2 x 5/16

2шт.

Выбрано товаров: 11
