Запчасти Case IH 2188 (8-16) - OIL COOLER AND MOUNTING, PRIOR TO COMBINE P.I.N. JJC0191483 (07) - HYDRAULICS

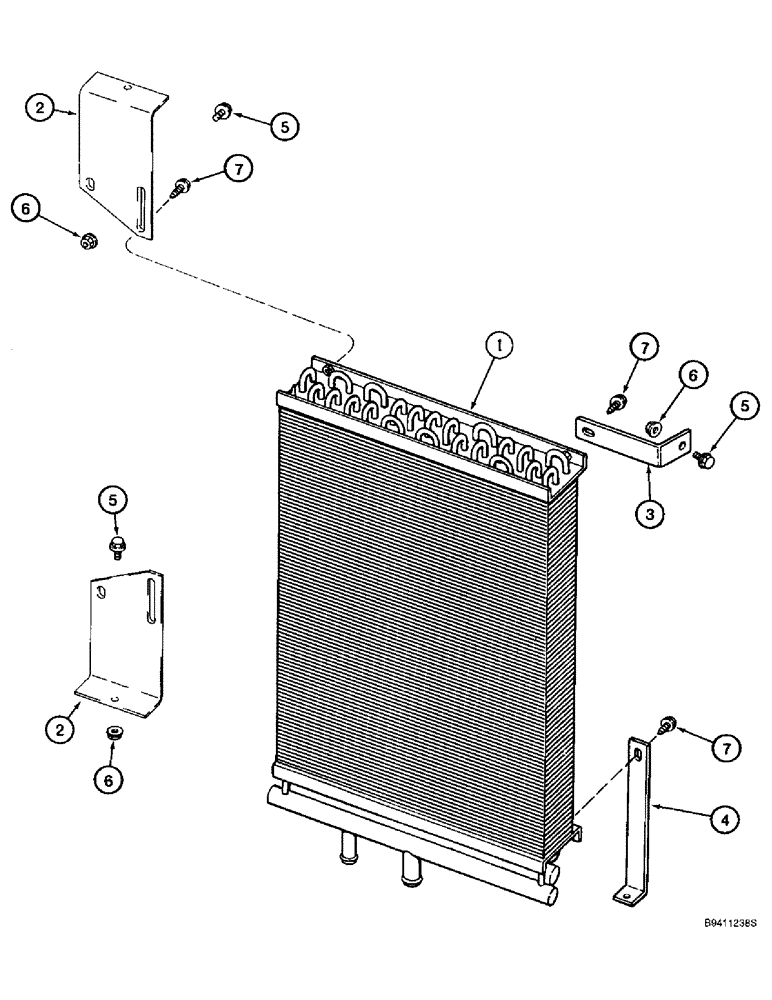

Схема запчастей Case IH 2188 - (8-16) - OIL COOLER AND MOUNTING, PRIOR TO COMBINE P.I.N. JJC0191483 (07) - HYDRAULICS
5
2
6
3
2
6
5
5
4
7
1
6
7
7

Артикул

Название

Примечание

Количество

1

135483A1

COOLER

- hydraulic oil

1шт.

2

1541786C4

SUPPORT

- oil cooler, left-hand

2шт.

3

1541787C2

ANGLE

SUPPORT - oil cooler, upper, right-hand

1шт.

4

1324914C3

ANGLE

SUPPORT - oil cooler, lower, right-hand

1шт.

5

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

4шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

7

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

4шт.

Выбрано товаров: 7
