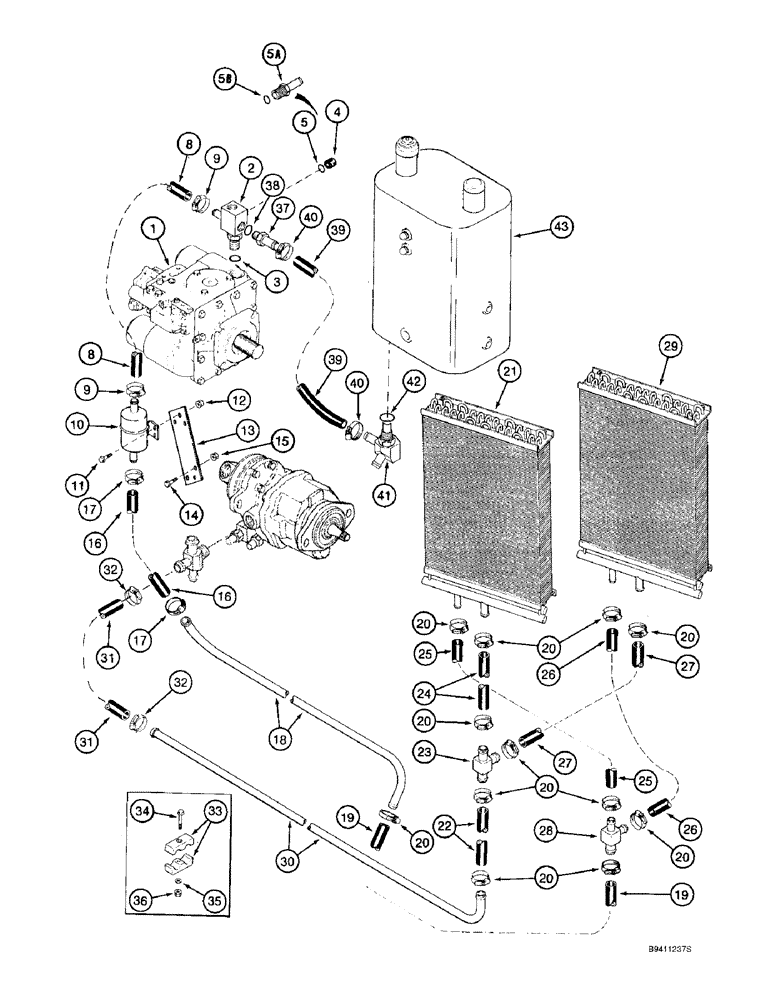

Запчасти Case IH 2188 (8-12) - OIL COOLER SYSTEM, RICE COMBINE (07) - HYDRAULICS

1

REF

INSTRUCTION

PUMP ASSEMBLY - hydrostatic, parts list Figures 6-22 - 6-29 and 6-32

1шт.

2

123521A2

TEE

- special, Includes: Ref. 3

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

4

76349

PLUG,9/16" - 18 ORB

Not used with Power Guide Axle, Incl. Ref. 5 Hex Hd, 9/16"-18 ORB

1шт.

5a

217-397

FITTING,1/2" Hose Barb x 9/16" - 18 Male ORB

Adapter - straight, 1/2 stem end x 9/16-18 inch Adj O-ring boss, Used with Power Guide Axle, Incl Ref 5B

1шт.

6

177678A1

TEMPERATURE SWITCH

- hydraulic oil temperature, not shown, see Figure 4-6, Ref. 22, Includes: Ref. 7

1шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Not shown, See Figure 4-6, Ref. 22A

1шт.

8

NSS

NOT SOLD SEPARAT

HOSE - pump to filter, 24-1/4 inch (610 mm) long, cut from 364361C1 bulk hose below

1шт.

9

214-1516

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm, W/ Liner

CLAMP, HOSE, , Adjustable #16, .81/1.50 Type F Worm, W/liner

2шт.

10

123488A1

FILTER SCREEN

SCREEN, FILTER - in-line

1шт.

11

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

2шт.

12

231-5146

FLANGE NUT,3/8"-16

2шт.

13

134173A1

SUPPORT

- in-line filter, if fitted

1шт.

14

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

2шт.

15

231-5146

FLANGE NUT,3/8"-16

2шт.

16

NSS

NOT SOLD SEPARAT

HOSE - filter to tube, 23 inch (585 mm) long, cut from 1541952C1 bulk hose below

1шт.

17

214-3228

HOSE CLAMP,1" - 1-7/8", HD Worm, W/ Liner

CLAMP, HOSE, , Adjustable 1.00/1.875 HD Worm, W/liner

2шт.

18

126851A1

TUBE,1832, 284 mm Length

- oil cooler supply

1шт.

19

NSS

NOT SOLD SEPARAT

HOSE - tube to tee, 40-15/16 inch (1040 mm) long, cut from 364361C1 bulk hose below

1шт.

20

214-1516

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm, W/ Liner

CLAMP, HOSE, , Adjustable #16, .81/1.50 Type F Worm, W/liner

11шт.

21

135483A1

COOLER

- hydraulic oil, prior to combine P.I.N. JJC0191483

1шт.

21a

195441A2

COOLER

- combination, fuel and oil, combine P.I.N. JJC0191483 and after, not shown, see Figure 8-17A for illustration

1шт.

22

NSS

NOT SOLD SEPARAT

HOSE - tube to tee, 18-7/8 inch (480 mm) long, cut from 364361C1 bulk hose below

1шт.

23

1979672C1

TEE

- 1 inch stem end

1шт.

24

NSS

NOT SOLD SEPARAT

HOSE - tee to primary hydraulic oil cooler, 24-1/4 inch (610 mm) long, cut from 364361C1 bulk hose below

1шт.

25

NSS

NOT SOLD SEPARAT

HOSE - primary hydraulic oil cooler to auxiliary oil cooler tee, 18-7/8 inch (480 mm) long, cut from 364361C1 bulk hose below

1шт.

26

NSS

NOT SOLD SEPARAT

HOSE - auxiliary hydraulic oil cooler to tee, 15-1/2 inch (394 mm) long, cut from 364361C1 bulk hose below

1шт.

27

NSS

NOT SOLD SEPARAT

HOSE - auxiliary hydraulic oil cooler to primary hydraulic oil cooler tee, 18-7/8 inch (480 mm) long, cut from 364361C1 bulk hose below

1шт.

28

1979672C1

TEE

- 1 inch stem end

1шт.

29

135483A1

COOLER

- hydraulic oil, auxiliary

1шт.

364361C1

HOSE

- bulk, 1 (25) ID x 600 inch (15240 mm) long

1шт.

1541952C1

HOSE,25.4mm ID x 7620mm L

- bulk, 1 (25) ID x 300 inch (7620 mm) long

1шт.

30

126850A1

TUBE,1832, 127 mm Length

- cooler return

1шт.

31

NSS

NOT SOLD SEPARAT

HOSE - tube to bypass valve, 30 inch (762 mm) long, cut from 1541952C1 bulk hose below

1шт.

32

214-3228

HOSE CLAMP,1" - 1-7/8", HD Worm, W/ Liner

CLAMP, HOSE, , Adjustable 1.00/1.875 HD Worm, W/liner

2шт.

33

1347071C1

CLAMP

- 1 inch OD

2шт.

34

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

- hex, 5/16 NC x 2-1/2 inch

2шт.

35

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

2шт.

36

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

37

123487A1

VALVE

ASSEMBLY - bypass, 40 psi, Includes: Ref. 38

1шт.

38

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

39

NSS

NOT SOLD SEPARAT

HOSE - bypass valve to tee at reservoir, 26 inch (660 mm) long, cut from 364361C1 bulk hose below

1шт.

40

214-3228

HOSE CLAMP,1" - 1-7/8", HD Worm, W/ Liner

CLAMP, HOSE, , Adjustable 1.00/1.875 HD Worm, W/liner

2шт.

41

182812A1

TEE

- special, Includes: Ref. 42

1шт.

42

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

43

123413A3

TANK, HYDRAULIC OIL

RESERVOIR ASSEMBLY - hydraulic oil, parts list Figure 8-2

1шт.

364361C1

HOSE

- bulk, 1 (25) ID x 600 inch (15240 mm) long

1шт.

1541952C1

HOSE,25.4mm ID x 7620mm L

- bulk, 1 (25) ID x 300 inch (7620 mm) long

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

5b

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
