Запчасти Case IH 2188 (4-54) - BATTERY BOX (06) - ELECTRICAL

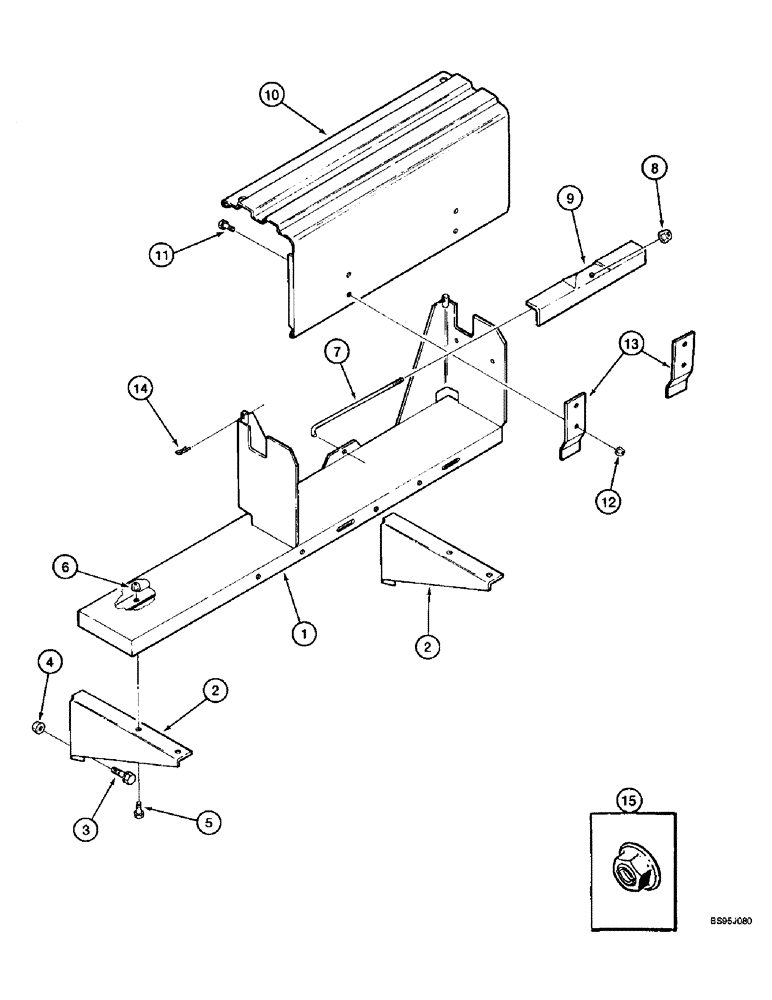

Схема запчастей Case IH 2188 - (4-54) - BATTERY BOX (06) - ELECTRICAL
9
2
2
1
14
8
3
15
12
6
13
4
11
10
7
5

Артикул

Название

Примечание

Количество

1

142490A2

SUPPORT

- battery box

1шт.

2

142495A2

SUPPORT

BRACKET - box support

2шт.

3

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

4шт.

4

231-5146

FLANGE NUT,3/8"-16

4шт.

5

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

4шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

7

A147915

BOLT

- hook, battery hold-down

1шт.

8

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

9

A162337

CLAMP

- hold down

1шт.

10

142496A1

COVER

- battery box

1шт.

11

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

4шт.

12

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

13

142497A1

STRAP

HINGE - cover

2шт.

14

480523R1

HAIR PIN COTTER

2шт.

15

131-415

JAM NUT,Push, Bolt Retainer, 3/8" x 25/32"

4шт.

16

135370A1

PROTECTION STRIP

TRIM - edge, 7-5/8 inch (194 mm) long, cut from 1330108CX bulk trim below

2шт.

Part of P/N 1330108CX Seal

1шт.

1330108CX

SEAL,304.8mm L

TRIM - edge, bulk, 600 inch (15240 mm) long, Includes: Ref. 16

1шт.

141546A2

BOX, TOOL

KIT

1шт.

A30338

PIN

"L" , for tool box

1шт.

Выбрано товаров: 20
