Запчасти Case IH 2188 (4-50) - GRAIN TANK LAMP MOUNTING (06) - ELECTRICAL

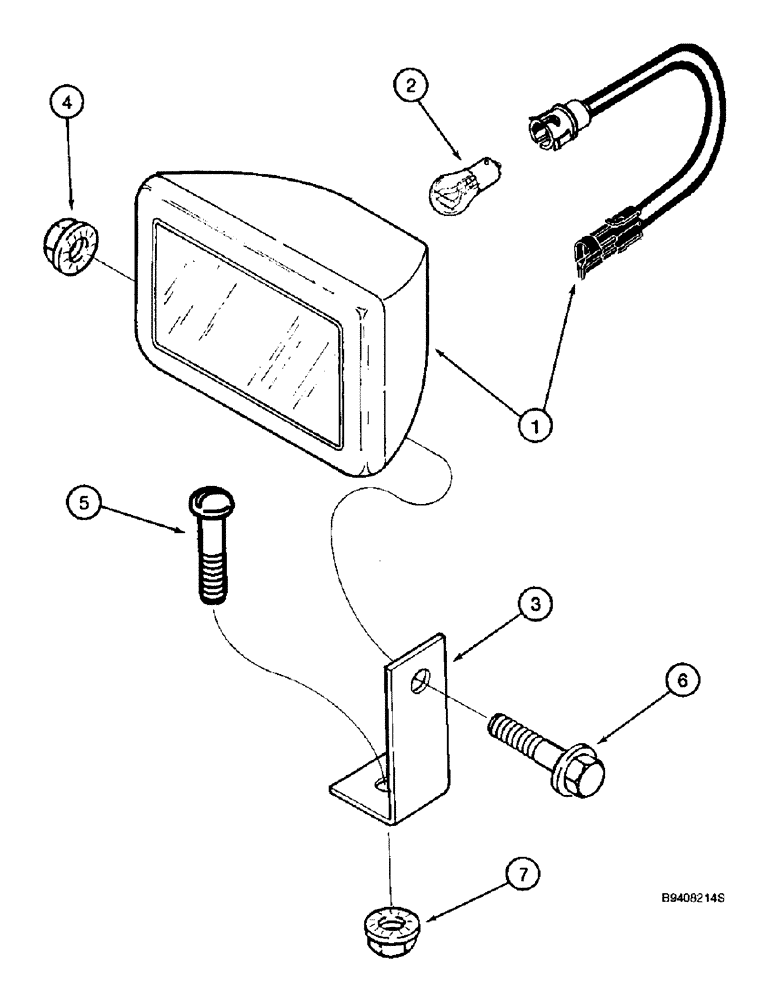

Схема запчастей Case IH 2188 - (4-50) - GRAIN TANK LAMP MOUNTING (06) - ELECTRICAL
5
3
6
2
1
7
4

Артикул

Название

Примечание

Количество

185119A1

HEADLIGHT,12V, 37.5W

LAMP ASSEMBLY - grain tank, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - lamp, order lamp assembly 185119A1

1шт.

2

A41264

BULB,#1156, 12V

Lamp #1156, 12V

1шт.

3

1317942C1

BRACKET

- lamp mounting

1шт.

4

231-5146

FLANGE NUT,3/8"-16

1шт.

5

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

BOLT - serrated slotted truss head, 5/16 NC x 1 inch

1шт.

6

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

1шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.
