Запчасти Case IH 2188 (4-42) - FIELD TRACKER, R, HARNESS (06) - ELECTRICAL

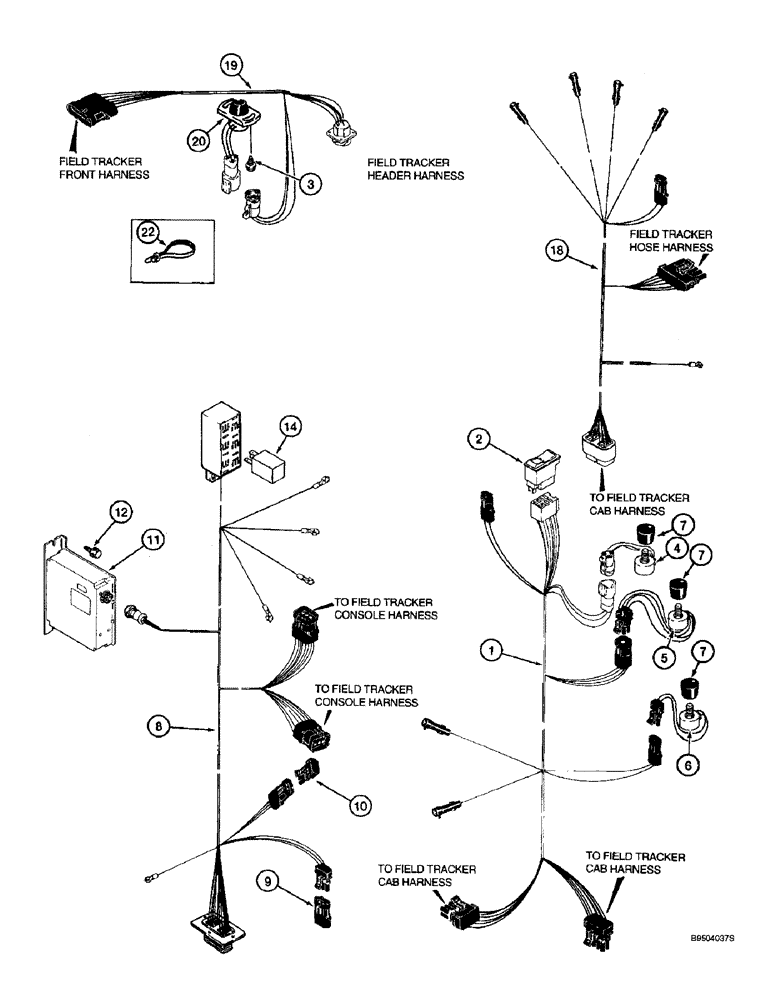

Схема запчастей Case IH 2188 - (4-42) - FIELD TRACKER, R, HARNESS (06) - ELECTRICAL
1
6
5
14
7
9
22
18
4
2
12
10
3
7
7
19
8
20
11

Артикул

Название

Примечание

Количество

1

125838A2

WIRE HARNESS

HARNESS - console, field tracker

1шт.

2

109814A1

SWITCH

- rocker, auto/manual

1шт.

3

1970588C1

SCREW

- hex washer head, self-tapping, special, No. 8 NC x 3/4 inch

2шт.

4

114551A1

POTENTIOMETER,2500 Ohm, 500V

Single, Balance 2500 Ohm, 500V

1шт.

5

114553A1

POTENTIOMETER,10,000 Ohm

Dual, Sensitivity 10,000 Ohm

1шт.

6

133498A1

POTENTIOMETER

Single, 50K, Response

1шт.

7

118780A1

KNOB

Potentiometer

3шт.

8

143310A2

HARNESS

ASSEMBLY - cab, field tracker, Includes: Ref. 9 and 10

1шт.

9

126011A1

DIODE

MODULE - resistor

1шт.

10

A187874

MODULE

MODULE - diode

1шт.

11

100275A1

CONTROL

- field tracker

1шт.

11

100275A2R

REMAN ELECT CONTROL

2188 CASE IH AXIAL-FLOW COMBINE (NA), field tracker (1/95-12/97), Reman for New PN 100275A1

1шт.

11

100275A2C

CORE-ELECTRONIC CONT

Return Number

1шт.

12

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

SCREW, SELF TAP, Hex Wash Hd, #10-24 x 5/8"

2шт.

14

105849A1

RELAY

- continuous duty, 20 amp

5шт.

16

442-10820

SCREW,Cross Oval Hd, #8-32 x 1 1/4"

- machine, oval Phillips, No. 8 NC x 1-1/4

1шт.

18

141728A1

HARNESS

- front, field tracker

1шт.

19

141729A1

WIRE HARNESS

HARNESS - hose, field tracker

1шт.

20

100283A1

POTENTIOMETER,4000 Ohm

Spring Loaded, Sensor 4000 Ohm

1шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

Выбрано товаров: 20
