Запчасти Case IH 2188 (4-40) - CHAFFER AND ROTOR HARNESSES, GRAIN SCAN SENSOR BLOCK (06) - ELECTRICAL

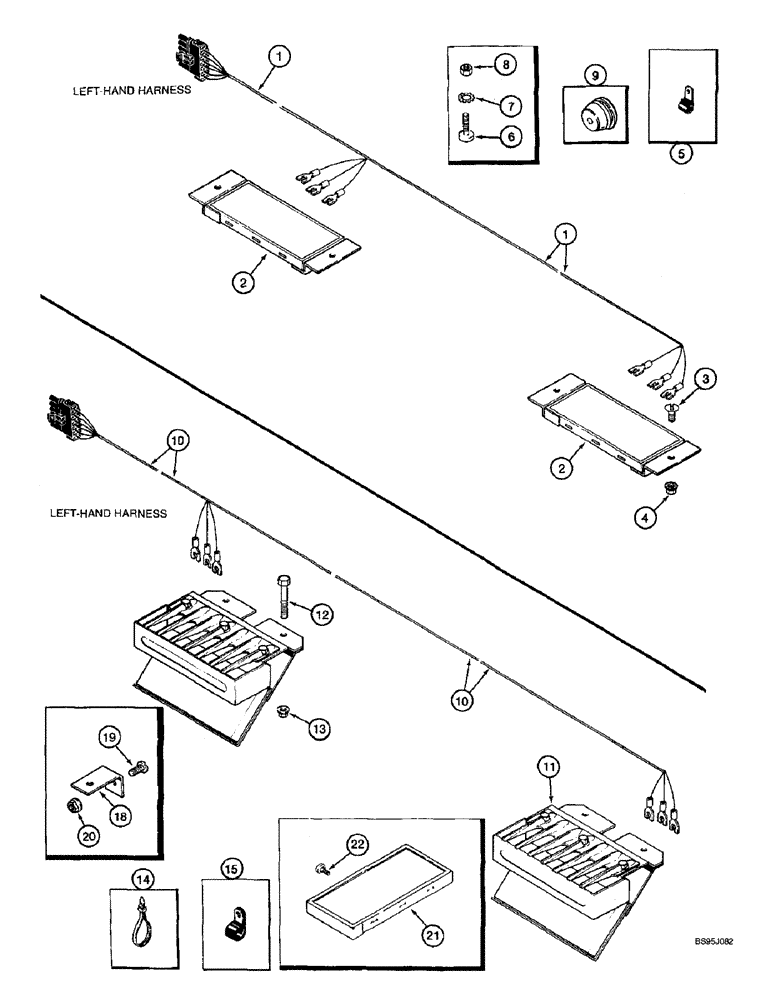

Схема запчастей Case IH 2188 - (4-40) - CHAFFER AND ROTOR HARNESSES, GRAIN SCAN SENSOR BLOCK (06) - ELECTRICAL
8
7
1
10
1
3
20
12
22
21
15
10
2
2
6
5
4
11
13
19
18
9
14

Артикул

Название

Примечание

Количество

1

127831A2

WIRE HARNESS

HARNESS - rotor sensor

1шт.

2

245362C1

TRANSMITTER

BLOCK - rotor sensor

2шт.

3

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

4шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

5

516-23127

CLAMP,9/16", Insul, 3/8" Bolt

Rotor harness J, 9/16" Insul, 3/8" Bolt

2шт.

5

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

8шт.

6

440-10610

SCREW,Phillips Drive, Pan HD, #6 - 32 x 5/8"

- machine, pan Phillips, No. 6 NC x 5/8 inch

4шт.

Rotor pad mounting hardware.

1шт.

7

493-11014

LOCK WASHER,Ext-Int Tooth, #6

WASHER - internal-external tooth lock, 1/8 inch

4шт.

Rotor pad mounting hardware.

1шт.

8

225-14106

NUT,#6-32

4шт.

Rotor pad mounting hardware.

1шт.

9

195806C1

GROMMET

- 3/4 inch ID, harness, left-hand panel

1шт.

10

92201C1

WIRE HARNESS

HARNESS - chaffer sensor

1шт.

11

245361C2

TRANSMITTER

BLOCK ASSEMBLY - chaffer sensor harness, Includes: Ref. 11A

2шт.

11a

231000A1

SIEVE

- seed comb, not shown, chaffer sensor harness

1шт.

12

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch, chaffer sensor harness

4шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC, Chaffer sensor harness

8шт.

14

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch, Chaffer sensor harness

1шт.

15

515-23175

CLAMP,11/16", Insul, 3/8" Bolt

- P-type, 7/8 inch ID, chaffer harness, used with bolt 844-8025, Ref. 16 and nut 825-2408, Ref. 17, if used, replaced by 515-23127 clamp, chaffer sensor harness

1шт.

15

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type, If used, Chaffer sensor harness 1/2", Insul, 3/8" Bolt

1шт.

15

515-2163

WIRE CLAMP,1/8", Insul, 1/4" Bolt

CLAMP - P-type, 1/4 inch ID, if used, chaffer sensor harness

2шт.

16

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

Clamp Mounting, Not Shown, If Used, Chaffer Sensor Harness Hex Flg, M8 x 25, 8.8

1шт.

17

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

M8 x 1.25", Flg, Cl 8, Clamp mounting, not shown, if used, chaffer sensor harness

1шт.

18

1301242C1

BRACKET

ANGLE - harness support, chaffer sensor harness

1шт.

19

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4", Chaffer sensor harness

1шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC, Chaffer sensor harness

1шт.

21

245884C1

TRANSMITTER

BLOCK - grain sensor, grain scan sensor block

1шт.

22

260-1356

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW - self-tapping, pan Phillips, No. 10-16 x 3/8 inch, grain scan sensor block

4шт.
