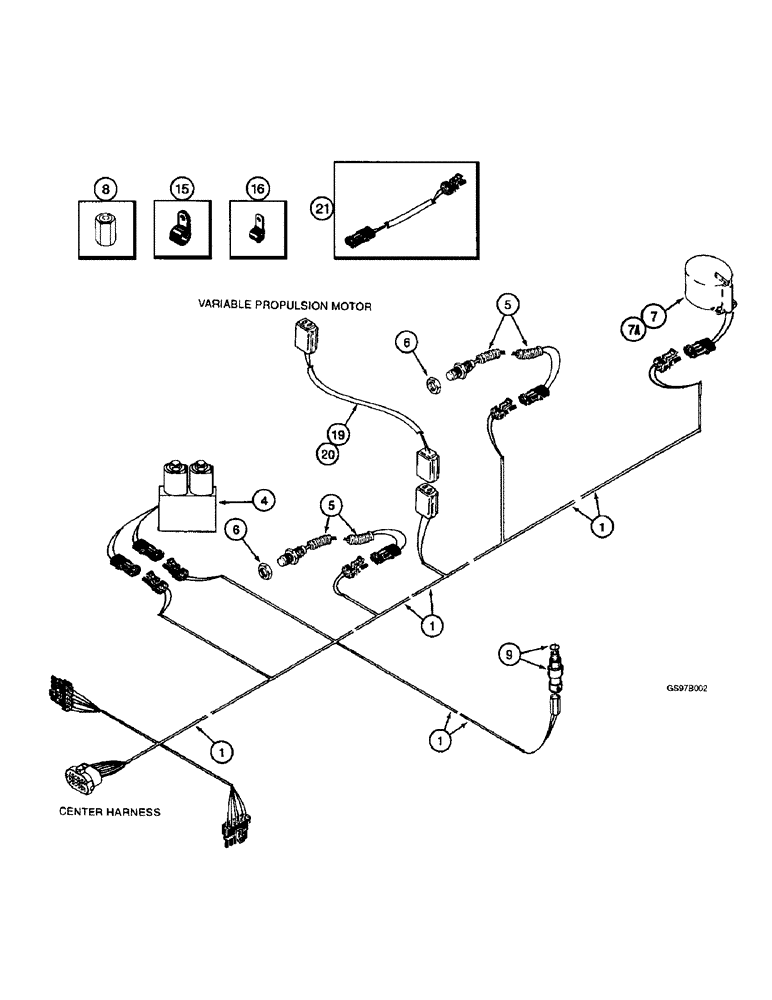

Запчасти Case IH 2188 (4-24) - LOWER HARNESS (06) - ELECTRICAL
№
Артикул
Название
Примечание
Количество
1
141727A2
HARNESS
ASSEMBLY - lower, prior to combine P.I.N. JJC0193725, Includes: Ref. 2 and 3
1шт.
1
243187A1
WIRE HARNESS
HARNESS ASSEMBLY - lower, combine P.I.N. JJC0193725 and after, Includes: Ref. 2 and 3
1шт.
2
187308A1
CAP
- splice connector, not shown
2шт.
3
187309A1
BAR
- buss, 6 terminal, not shown, cut as needed
2шт.
4
129010A3
VALVE
ASSEMBLY - parking brake and feeder clutch, parts list Figure 8-40
1шт.
IF LOOKING FOR THE SWITCH THAT CONNECTS TO THIS VAVLE ASSY. IT IS SHOWN ON PAGE 4-12 REF. NO# 2.
1шт.
5
245193C2
SENSOR
- ground speed and fan speed
2шт.
6
425-1512
JAM NUT,Jam, 3/4"-10, G5
- hex jam, 3/4 inch NF, ground and fan speed sensors
2шт.
7
143956A1
TRANSMITTER
SENSOR - clean grain speed, use with Ref. 21 adapter, no longer available, order sensor 143956A3, Ref. 7A
1шт.
7a
143956A3
TRANSMITTER
SENSOR - with resistor, clean grain speed, does not require Ref. 21 adapter
1шт.
8
106666A1
SPECIAL NUT
- hex, special, 3/8 inch NC, left-hand thread
1шт.
9
122761A1
SENSOR
- float pressure, includes O-ring, see Figure 8-28 for manifold
1шт.
15
92386C1
CLAMP,7/8", Insul, 7/16" Bolt
- P-type, 7/8 inch ID
3шт.
16
516-23127
CLAMP,9/16", Insul, 3/8" Bolt
(Replaces clamp 363444R1) J, 9/16" Insul, 3/8" Bolt
6шт.
17
844-8025
BOLT,Hvy Hex, M8 x 25mm, Cl 8.8
Not Shown Hex Flg, M8 x 25, 8.8
2шт.
18
825-2408
FLANGE NUT,M8 x 1.25, Flg, Cl 8
M8 x 1.25", Flg, Cl 8, Not shown
3шт.
19
226149A1
DIODE
ASSEMBLY - motor, two speed variable propulsion, solenoid to lower harness, if used, Includes: Ref. 20
1шт.
In 1997 production the diode was incorporated into the solenoid assembly. Therefore diode part #226149A1 is not used on the later production. See NHE SB 014.1 98 for coil part numbers.
1шт.
20
113699A1
RECTIFIER
- locking, 2-5/8 inch long
1шт.
21
224073A1
ADAPTER
- shaft speed sensor filter, use with Ref. 7 sensor to alleviate the flashing lamps of the grain scan monitor
1шт.
