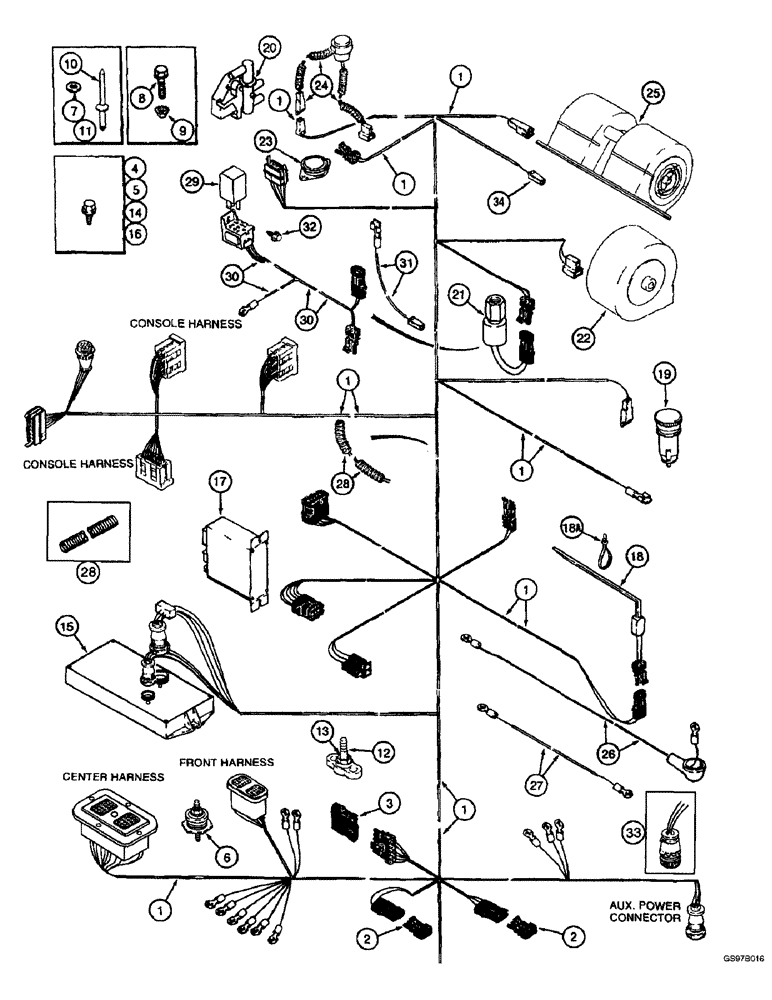

Запчасти Case IH 2188 (4-21C) - CAB HARNESS, LOWER REAR, COMBINE P.I.N. JJC0191483 AND AFTER (06) - ELECTRICAL

1

184513A4

HARNESS

ASSEMBLY - cab, Includes Refs. 2 and 3 on this Figure, Ref. 1A - 2A on Figure 4-21A and Ref. 1A and 1B on Figure 4-21E, combine P.I.N. JJC0191483 - JJC0193724

1шт.

See Figures 4-21A and 4-21E for continuation of cab harness.

1шт.

1

243186A2

HARNESS

ASSEMBLY - cab, includes Ref. 2 and 3 on this Figure, Ref. 1A - 2A on Figure 4-21A and Ref. 1A and 1B on Figure 4-21E, Start Serial: JJC0193725

1шт.

2

A187874

MODULE

MODULE - diode, unloader auger and concave clearance request

2шт.

3

127290A1

DIODE

MODULE - diode, rotor/fan speed request

1шт.

5

262-15516

SELF-TAP SCREW,Hex Pan Hd, #10 x 1"

SCREW - self-tapping, pan Phillips, No. 10-16 x 1 inch, junction block mounting

2шт.

6

A187523

JUNCTION BLOCK

BLOCK - cable junction, unswitched B+

1шт.

6

190158A1

BLOCK

- cable junction, unswitched B+ (alternate part)

1шт.

7

495-11138

WASHER,1 1/4", SAE

- flat, 1-3/8 x 2-1/2 x 3/16 inch

1шт.

8

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

- hex serrated flange, 3/8 NC x 1-1/4 inch

1шт.

9

231-5146

FLANGE NUT,3/8"-16

1шт.

10

151-507

RIVET,Pop, 1/8" x .575"

- break mandrel, 1/8 x 1/2 inch

4шт.

11

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

(Flat, 4.3 x 9 x 0.8 mm) M4

4шт.

12

20-1451T1

BLOCK

- junction, switched B+

1шт.

13

425-106

NUT,3/8"-16, Cl 5

1шт.

15

122760A4

CASE

MODULE - header control, includes instructions

1шт.

15

239938A8R

REMAN-MODULE

Reman for New PN 122760A4

1шт.

15

239938A8C

CORE-MODULE

Return Number

1шт.

17

141178A4

CASE

MODULE - air conditioning control

1шт.

18

184720A1

SENSOR

- temperature, evaporator

1шт.

18a

702093C1

CABLE TIE

STRAP - tie, wire to evaporator core temperature sensor

1шт.

19

1964773C14

LIGHTER - cigar, 12 volt (Replaces lighter 245576C1)

1шт.

20

141336A1

VALVE

- heater control

1шт.

21

122579A1

SWITCH, A/C LOW PRES

SWITCH - low pressure, air conditioning, see latching relay kit, Ref. 29-32

1шт.

22

175435A2

BLOWER

- pressurizer

1шт.

23

1983395C1

IGNITION SWITCH

SWITCH - seat

1шт.

24

180601A1

WIRE HARNESS

HARNESS - seat, operator present

1шт.

24a

180599A1

WIRE HARNESS

HARNESS - air suspension seat, not shown

1шт.

25

1977564C2

BLOWER

- cab

1шт.

25

355190A1R

REMAN-BLOWER,12V

Reman for New PN 1977564C2

1шт.

25

355190A1C

CORE-BLOWER,12V

Return Number

1шт.

26

128738A3

CABLE

- cab power

1шт.

27

128739A1

CABLE

- ground, cab

1шт.

28

124233A2

COVER

SLEEVE - corrugated, 64 x 84 x 990 mm long, harness guard

1шт.

220025A2

PACKAGE

KIT - air conditioning warning lamp latch, includes instructions, Includes: Ref. 29 - 32

1шт.

29

105849A1

RELAY

- continuous duty, 20 amp

1шт.

30

195578A1

HARNESS

- air condtioning adapter latching relay

1шт.

31

226148A1

DIODE

- air conditioning lamp

1шт.

32

282-17512

SCREW,Hex Wshr Hd, #10 - 16 x 3/4"

- self-drilling tapping, hex washer head, No. 10-16 x 3/4 inch

1шт.

33

187103A1

ELEC CONNECTOR

CONNECTOR - auxiliary power, order to use with add-on radios, phones, and other accessories

1шт.

34

225257C1

PLUG

- blower motor

1шт.

4

281-53510

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

SCREW, SELF TAP, , Bulkhead connector Hex Wash Hd, #10 x 5/8"

8шт.

14

281-53510

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

SCREW, SELF TAP, Hex Wash Hd, #10 x 5/8"

2шт.

16

281-53510

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

SCREW, SELF TAP, Hex Wash Hd, #10 x 5/8"

2шт.
