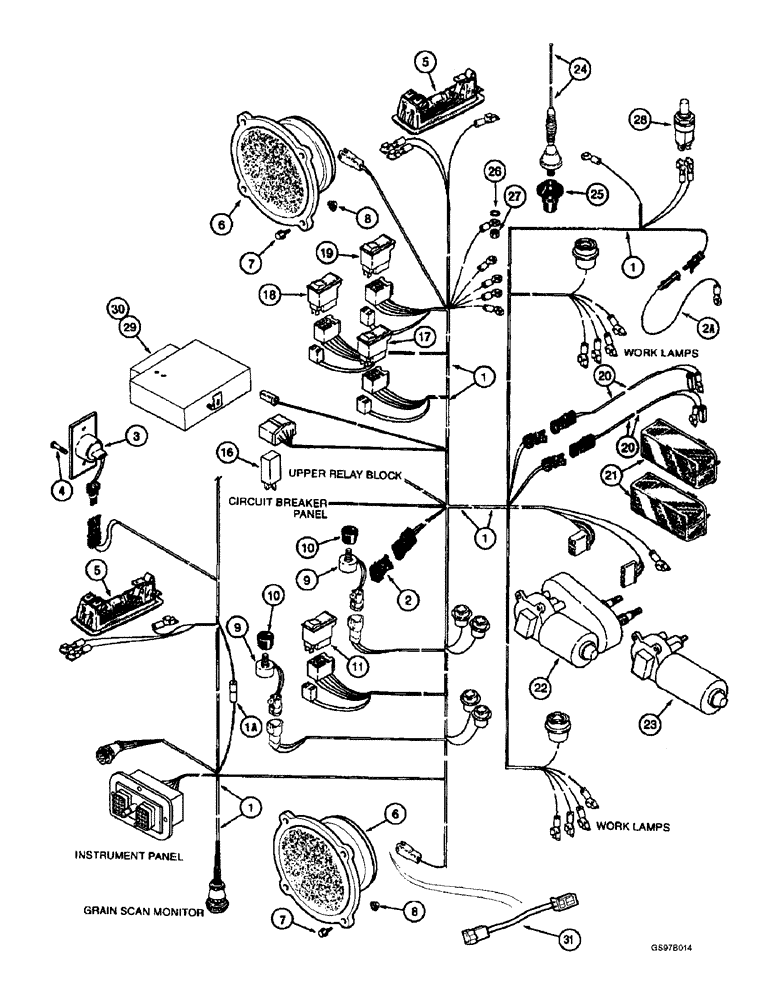

Запчасти Case IH 2188 (4-21A) - CAB HARNESS, OVERHEAD, COMBINE P.I.N. JJC0191483 AND AFTER (06) - ELECTRICAL

1

184513A4

HARNESS

ASSEMBLY - cab, Includes Ref. 1A - 2A on this Figure, Ref. 2 and 3 on Figure 4-21C and Ref. 1A and 1B on Figure 4-21E, combine P.I.N. JJC0191483 - JJC0193724

1шт.

1

243186A2

HARNESS

ASSEMBLY - cab, Includes Ref. 1A - 2A on this Figure, Ref. 2 and 3 on Figure 4-21C and Ref. 1A and 1B on Figure 4-21E, combine P.I.N. JJC0193725 and after

1шт.

1a

113699A1

RECTIFIER

- locking, 2-5/8 inch long

1шт.

2

A187874

MODULE

MODULE - diode

1шт.

2a

196133A1

HARNESS

WIRE - ground, radio antenna

1шт.

3

83882C91

LAMP

ASSEMBLY - console illumination, parts list Figure 4-48

1шт.

4

440-10812

SCREW,Cross Pan Hd, #8-32 x 3/4"

- machine, pan Phillips, No. 8 NC x 3/4 inch

2шт.

5

1983391C1

LAMP,12V, 10W

ASSEMBLY - dome, parts list Figure 4-48

2шт.

6

182721A1

SPEAKER

- radio, 5-1/4 inch, round (Replaces speaker 141924A1)

2шт.

7

281-53516

SELF-TAP SCREW,Hex Wash Hd, #10 x 1"

SCREW - self-tapping, hex washer head, No. 10 NC x 1 inch

8шт.

8

231-51409

SERRATED NUT,Flg, USR, #10-24

8шт.

9

114551A1

POTENTIOMETER,2500 Ohm, 500V

Single, Air Conditioning Fan Speed and Temperature 2500 Ohm, 500V

2шт.

10

1977521C1

BUTTON

KNOB - includes screw, potentiometer

2шт.

11

124535A1

SWITCH

- rocker, air conditioning

1шт.

12

26069R1

BULB

- lamp, No. 192, not shown

4шт.

13

139718A1

CIRCUIT-BREAKER,10 Amp, Mini

CIRCUIT BREAKER, , Not shown 10 Amp, Mini

1шт.

14

139719A1

CIRCUIT BREAKER,15 Amp, Mini

Not shown 15 Amp, Mini

2шт.

NOT ILLUSTRATED 14 volt dc, 15 amp....v/p USD 21115-01.

1шт.

15

139720A1

CIRCUIT-BREAKER,20 Amp, Mini

CIRCUIT BREAKER, 20 Amp, Not shown

3шт.

16

105849A1

RELAY

- continuous duty, 20 amp

5шт.

17

141488A1

WINDSHIELD WIPER SWI

SWITCH - rocker, wiper, standard

1шт.

17

176854A1

WINDSHIELD WIPER SWI

SWITCH - rocker, wiper, deluxe

1шт.

18

124095A1

LIGHT SWITCH

SWITCH - rocker, lamp

1шт.

19

124094A1

SWITCH

- rocker, hazard lamp

1шт.

20

143062A1

WIRE HARNESS

HARNESS - cab warning lamp

2шт.

21

130882C91

LAMP

LAMP ASSEMBLY - warning, parts list Figure 4-48

2шт.

22

137838A1

WIPER MOTOR

MOTOR ASSEMBLY - windshield wiper, double blade, parts list Figure 4-68

1шт.

23

137608A1

WIPER MOTOR

MOTOR ASSEMBLY - windshield wiper, includes mounting bracket, single blade, parts list Figure 4-66

1шт.

24

97080C1

ANTENNA

ASSEMBLY - radio, includes base, mast, cable, and hardware

1шт.

25

R54547

GROMMET

- 1-1/32 inch (26 mm) hole size

1шт.

26

893-11008

LOCK WASHER,Ext Tooth, M8

WASHER, LOCK, Ext Tooth, M8

1шт.

27

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

1шт.

28

1983341C1

SWITCH

- door jam

1шт.

29

ZAE1000

RADIO

- AM/FM/WB, order from ship direct (Replaces radio 141950A1)

1шт.

30

ZAE3000

RADIO

- AM/FM/WB with cassette player, order from ship direct (Replaces radio 141951A1)

1шт.

31

195551A1

HARNESS

- adapter, speakers to headliner harness, prior to combine P.I.N. JJC0193725

2шт.

144417A1

CONNECTING BLOCK

BLOCK Upper 6-way relay, To mount relays and circuit breakers in cab headliner (behind radio), not illustrated

1шт.

182163A1

ELECTRO/HYD CONTACT

BLOCK relay base, To mount relays and circuit breakers in cab headliner (behind radio), not illustrated

1шт.

182165A1

CONNECTOR, ELEC

LOCK (2 required), To mount relays and circuit breakers in cab headliner (behind radio), not illustrated

1шт.
