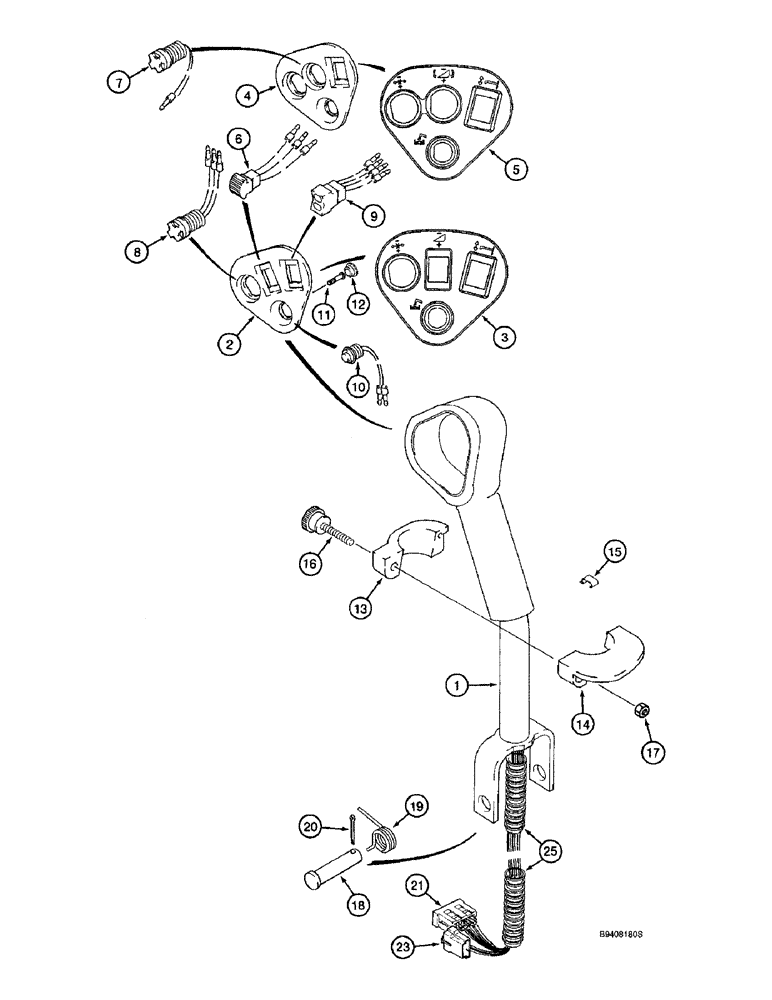

Запчасти Case IH 2188 (4-14) - PROPULSION CONTROL LEVER (06) - ELECTRICAL

1

113314A2

CONTROL LEVER

LEVER - propulsion control

1шт.

Ref. 1 - There is no "harness" for wires leading from switches to connectors, Refs. 21 and 23. These wires are components of individual switches.

1шт.

2

113315A1

LARGE PLATE

PLATE - cover, models without field tracker

1шт.

3

144107A2

DECAL

- propulsion control lever cover plate, models without field tracker

1шт.

4

124669A1

PLATE

- cover, models with field tracker

1шт.

5

144109A2

DECAL

- propulsion control lever cover plate

1шт.

6

118681A1

SWITCH

- header lift, models without field tracker, no longer available, order plate 124669A1, Ref. 4; decal 144109A2, Ref. 5; and switch 132001A1, Ref. 7

1шт.

7

132001A1

SWITCH

- header control

1шт.

8

118680A1

SWITCH

- reel control

1шт.

9

118683A1

SWITCH

- unloader swing

1шт.

10

127597A1

SWITCH

- unloader auger

1шт.

11

260-54310

SELF-TAP SCREW,Cross Pan Hd, #6 x 5/8"

SCREW - self-tapping, pan Phillips, No. 6-20 x 5/8 inch

1шт.

12

353-402

PLUG,Dome, .375" hole, Nylon

1шт.

13

116150A1

SUPPORT

- palm rest, left-hand

1шт.

14

116152A1

SUPPORT

- palm rest, right-hand

1шт.

15

1343962C1

CLIP,ELECTRICAL

CLIP - palm rest

1шт.

16

96860C1

KNOB

- palm rest

1шт.

17

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

18

27-8343

CLEVIS PIN,12.7mm OD x 87.33mm L

PIN - clevis, 1/2 x 3-7/16 inch, hardened

1шт.

19

128593A1

SPRING

- torsion

1шт.

20

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

21

225388C1

ELEC CONNECTOR,Male, 12 Pin

CONNECTOR - electrical, type NA

1шт.

22

225390C1

WEDGE

- electrical connector, type W12P, not shown

1шт.

23

225350C1

ELEC CONNECTOR,Male, 6 Pin

CONNECTOR - electrical, type LV

1шт.

24

225353C1

WEDGE,Lock, Black

- electrical connector, type W6P, not shown

1шт.

25

120344C1

CONDUIT

- convoluted insulation, 1 (26) x 1-17/64 (33) x 7-1/4 inch (184 mm) long

1шт.
