Запчасти Case IH 2188 (4-12) - CONSOLE HARNESS (06) - ELECTRICAL

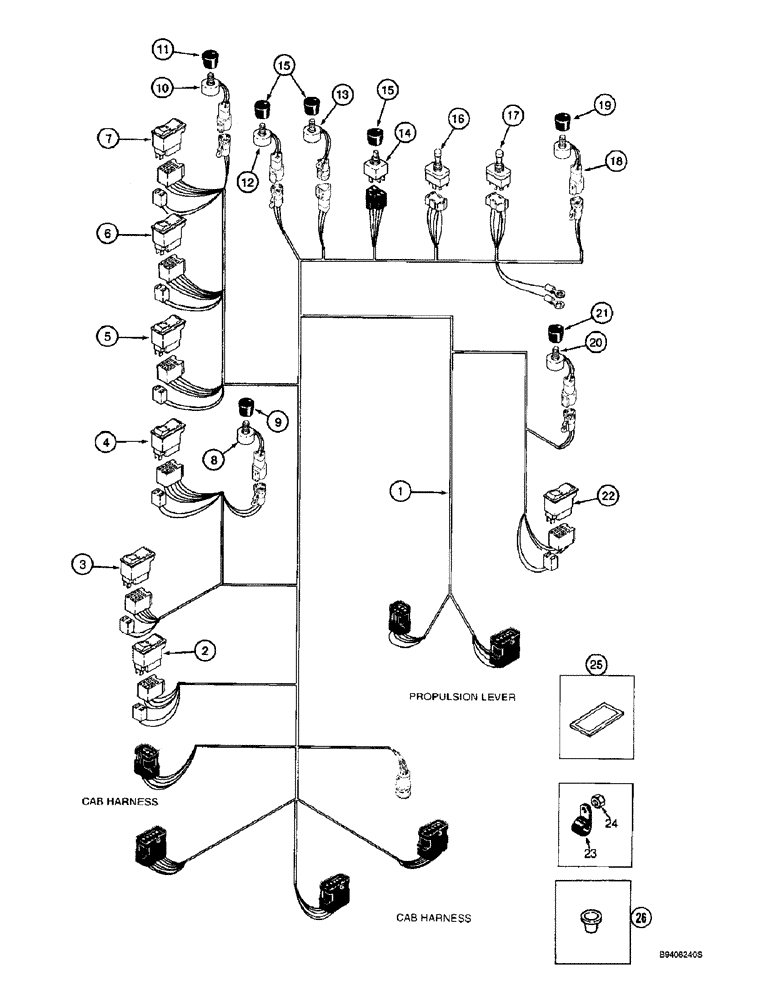

Схема запчастей Case IH 2188 - (4-12) - CONSOLE HARNESS (06) - ELECTRICAL
5
15
4
23
8
19
14
22
26
1
25
24
21
20
3
18
15
13
10
9
17
16
11
7
12
2
6

Артикул

Название

Примечание

Количество

1

142926A2

HARNESS

- console

1шт.

2

124098A1

SWITCH

- rocker, parking brake

1шт.

3

109821A1

SWITCH

- rocker, power axle, 4WD

1шт.

4

109822A1

SWITCH

- rocker, variable propulsion, models with two speed motor

1шт.

5

143503A1

SWITCH

- rocker, rotor speed

1шт.

6

143502A1

SWITCH

- rocker, fan speed

1шт.

7

143504A1

SWITCH

- rocker, concave adjust

1шт.

8

114551A1

POTENTIOMETER,2500 Ohm, 500V

Single, Min Reel Speed 2500 Ohm, 500V

1шт.

9

A186263

KNOB

Potentiometer

1шт.

10

114551A1

POTENTIOMETER,2500 Ohm, 500V

Single, Raise Rate 2500 Ohm, 500V

1шт.

11

A186263

KNOB

Potentiometerr

1шт.

12

114551A1

POTENTIOMETER,2500 Ohm, 500V

Single, Header Sensitivity 2500 Ohm, 500V

1шт.

13

114550A1

POTENTIOMETER,1000 Ohm, 500V

Single, Header Positionn 1000 Ohm, 500V

1шт.

14

129237A1

SWITCH

- header height

1шт.

15

118780A1

KNOB

Potentiometer

3шт.

16

245634C2

SWITCH

- toggle, feeder

1шт.

17

245632C2

SWITCH

- toggle, separator

1шт.

18

114551A1

POTENTIOMETER,2500 Ohm, 500V

Single, Lower Rate 2500 Ohm, 500V

1шт.

19

A186263

KNOB

Potentiometer

1шт.

20

114551A1

POTENTIOMETER,2500 Ohm, 500V

Single, Reel Ratio 2500 Ohm, 500V

1шт.

21

118780A1

KNOB

Potentiometer

1шт.

22

109817A1

SWITCH

- rocker, reel speed, auto/manual

1шт.

23

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

P-type 7/8", Insul, 3/8" Bolt

1шт.

24

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

25

245918C1

LENS

PLUG - rectangular, rocker switch, used on models without Power Guide Axle or two speed motor

1шт.

26

353-4

PLUG,Cap, .366" OD

- cap, 23/64 inch, used on models without automatic height control

1шт.

Выбрано товаров: 26
