Запчасти Case IH 2188 (5-48) - TRAILER HITCH (04) - STEERING

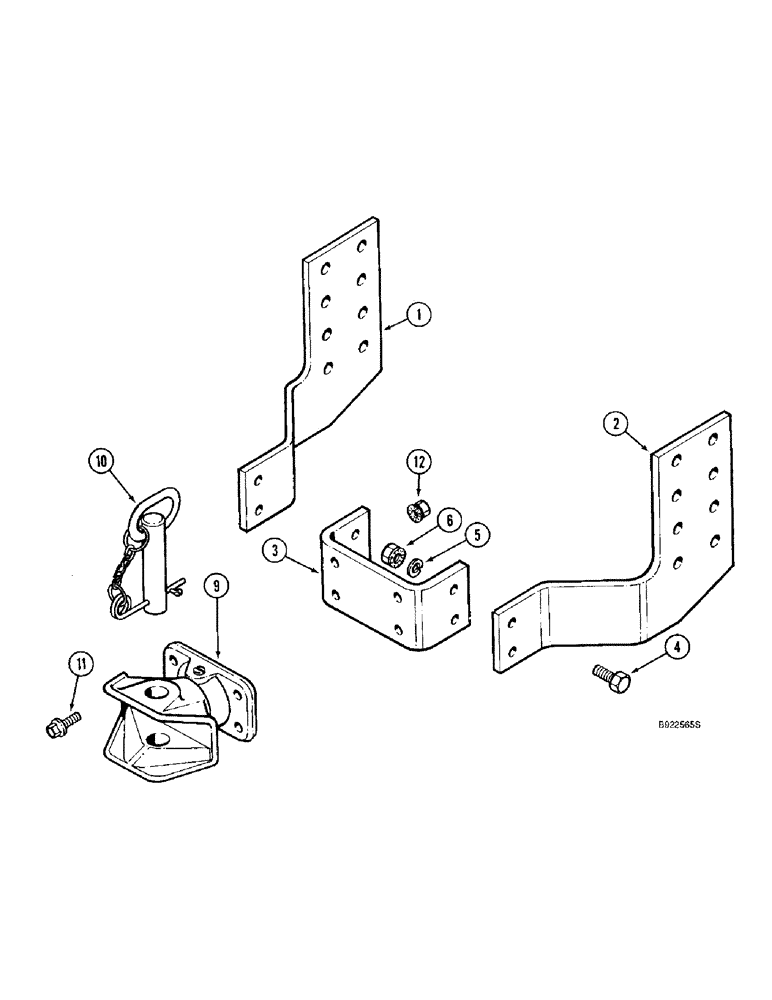

Схема запчастей Case IH 2188 - (5-48) - TRAILER HITCH (04) - STEERING
6
12
10
11
4
9
5
3
2
1

Артикул

Название

Примечание

Количество

1

1311092C3

SUPPORT

- trailer hitch, left-hand, used on models with 92-120 inch adjustable axle

1шт.

1

1979841C2

SUPPORT

- trailer hitch, left-hand, used on models with power guide axle

1шт.

2

1311093C3

SUPPORT

- trailer hitch, right-hand, used on models with 92-120 inch adjustable axle

1шт.

2

1979842C2

SUPPORT

- trailer hitch, right-hand, used on models with power guide axle

1шт.

3

1311094C1

BRACKET

CHANNEL - combine tow

1шт.

4

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex, 5/8 NC x 2-1/4 inch

4шт.

5

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

6

425-1010

NUT,5/8"-11, G5

4шт.

9

1311089C91

HOOK

ASSEMBLY - hitch, Includes: Ref. 10

1шт.

10

1311090C1

PIN

- hook, order hook assembly

1шт.

11

409-7832

BOLT,Hex Flg, 1/2" - 13 x 2", Spcl

- hex serrated flange, 1/2 NC x 2 inch

4шт.

12

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

Выбрано товаров: 12
