Запчасти Case IH 2188 (5-46) - STEERING AXLE WEIGHTS (04) - STEERING

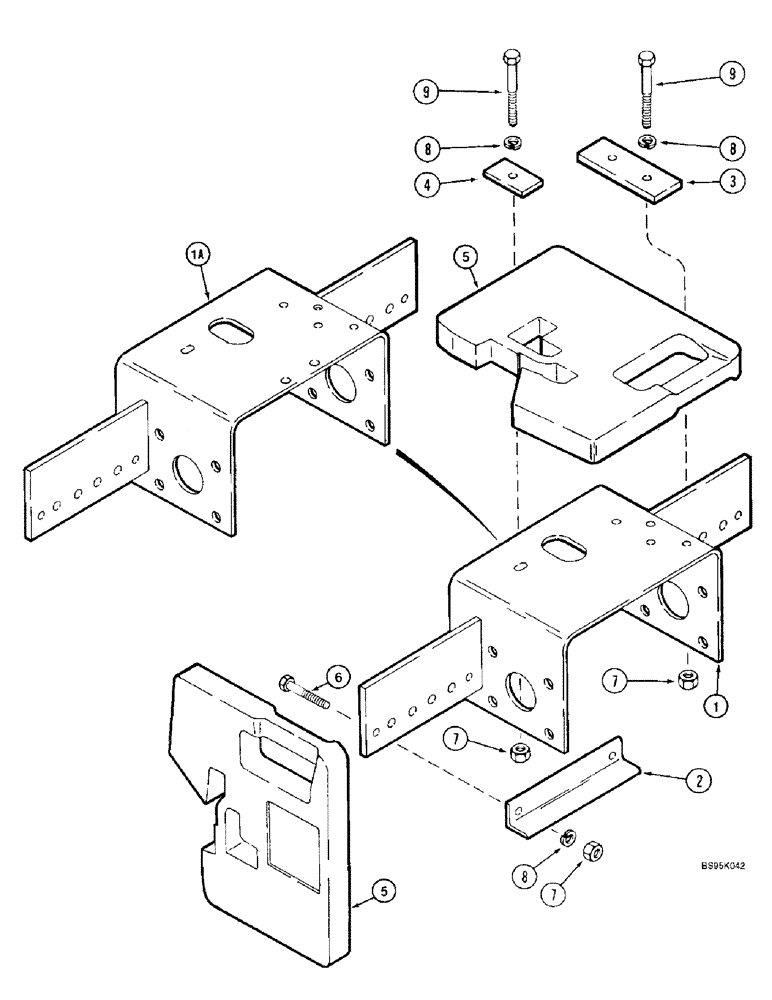

Схема запчастей Case IH 2188 - (5-46) - STEERING AXLE WEIGHTS (04) - STEERING
6
3
1a
7
5
9
4
2
9
5
8
7
8
7
8
1

Артикул

Название

Примечание

Количество

1

185365C1

SUPPORT

- weight, if used

1шт.

1a

185365C2

SUPPORT

- weight, if used

1шт.

2

1308872C1

BRACKET

ANGLE - weight retaining

2шт.

3

178434C1

CLAMP

- weight

1шт.

4

561838R1

PLATE

CLAMP - weight

1шт.

5

148347C1

WEIGHT,100 LB

WEIGHT - axle, 100 pound (Machinery item)

1шт.

6

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

4шт.

7

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

6шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

7шт.

9

413-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

- hex, 1/2 NC x 5-1/2 inch

3шт.

Выбрано товаров: 10
