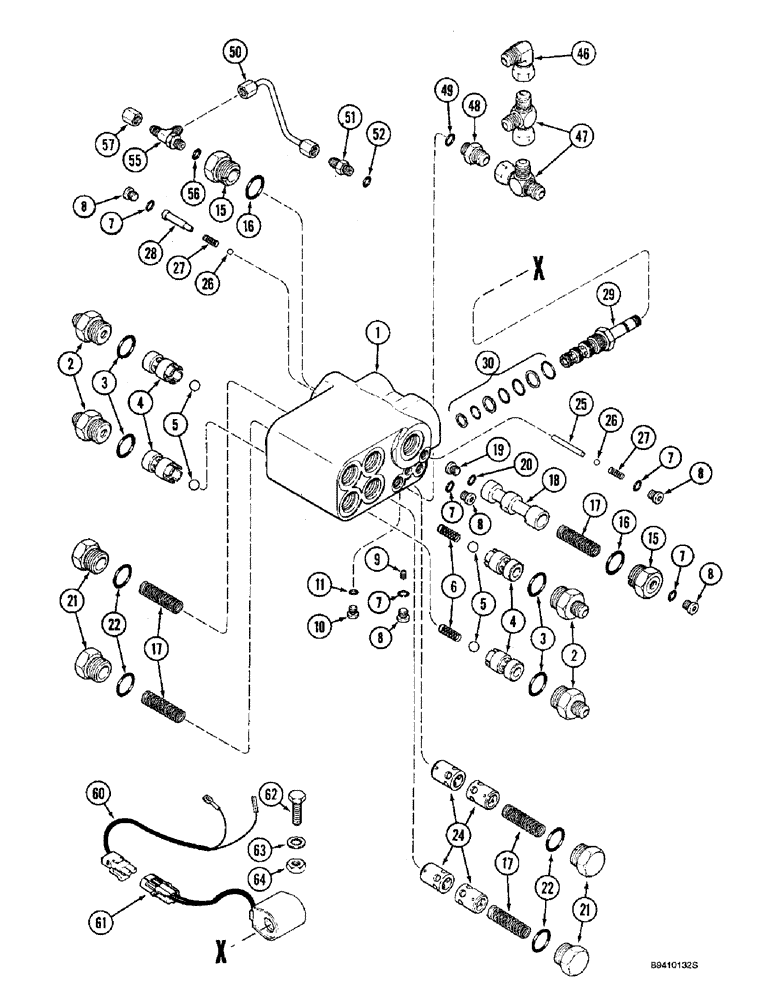

Запчасти Case IH 2188 (5-40) - SELECTOR VALVE ASSEMBLY, POWER GUIDE AXLE, RICE COMBINE (04) - STEERING

1347194C1

VALVE

ASSEMBLY - selector, steering, Includes: Ref. 1 - 30

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve, order valve assembly

1шт.

2

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 3/4-16 flare x 1-1/16-12 inch O-ring boss, Includes: Ref. 3

4шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Connector

1шт.

4

NSS

NOT SOLD SEPARAT

SEAT - check ball

4шт.

5

NSS

NOT SOLD SEPARAT

BALL - check, 9/16 inch diameter

4шт.

6

NSS

NOT SOLD SEPARAT

SPRING - check, reverse

2шт.

7

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

7шт.

8

278548

PLUG,Hex, 7/16"-20 ORB

6шт.

9

NSS

NOT SOLD SEPARAT

PLUG - orifice,1/16-27 PT

1шт.

10

218-5151

PLUG,Hex Hd, 5/16"-24 ORB

- hex, 5/16-24 inch O-ring boss, Includes: Ref. 11

1шт.

11

237-6002

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

2-1, .239" ID x .064" Thk

1шт.

15

1970176C1

PLUG

- hex, special

2шт.

16

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

2шт.

17

NSS

NOT SOLD SEPARAT

SPRING - spool, flow divider and selector

5шт.

18

NSS

NOT SOLD SEPARAT

SPOOL - selector

1шт.

19

NSS

NOT SOLD SEPARAT

PLUG - orifice

1шт.

20

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

21

1979118C1

PLUG

- hex

4шт.

22

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

4шт.

24

NSS

NOT SOLD SEPARAT

SPOOL - flow divider

4шт.

25

NSS

NOT SOLD SEPARAT

PIN - dowel

1шт.

26

211-1010

BALL,5/16" OD

- chrome alloy steel, 5/16 inch, grade 24

2шт.

27

NSS

NOT SOLD SEPARAT

SPRING - shuttle, low priority

2шт.

28

NSS

NOT SOLD SEPARAT

SPACER - spring

1шт.

29

187849C1

SOLENOID VALVE

VALVE ASSEMBLY - solenoid, 4-way, cartridge only, Includes: Ref. 30

1шт.

30

187850C1

SEAL KIT

KIT - seal replacement

1шт.

46

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, 3/4-16 inch flare x swivel

1шт.

47

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- 3/4-16 inch flare branch x flare x swivel

2шт.

48

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ADAPTER - straight, 3/4-16 flare x 9/16-18 inch O-ring boss, Includes: Ref. 49

1шт.

49

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

50

1970140C1

TUBE,4.78 mm ID

- pressure, charge

1шт.

51

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

ADAPTER - straight, 7/16-20 flare x O-ring boss, Incl. Ref. 52

1шт.

52

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

55

218-5289

TEE,7/16" - 20 Male JIC x 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 7/16-20 inch flare branch x flare x adjustable O-ring boss, Includes: Ref. 56

1шт.

56

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

57

218-752

CAP,37 Degree, 7/16"-20

Hex 37º, 7/16"-20

1шт.

1345300C1

KIT

- solenoid coil, included with valve assembly 1347194C1, Includes: Ref. 60 - 64

1шт.

60

1345302C1

WIRE HARNESS

HARNESS - solenoid

1шт.

61

1340843C1

SOLENOID,12V

KIT - solenoid coil, 12 volt

1шт.

62

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

63

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

WASHER - internal-external tooth lock, 3/8 inch

1шт.

64

425-106

NUT,3/8"-16, Cl 5

1шт.
