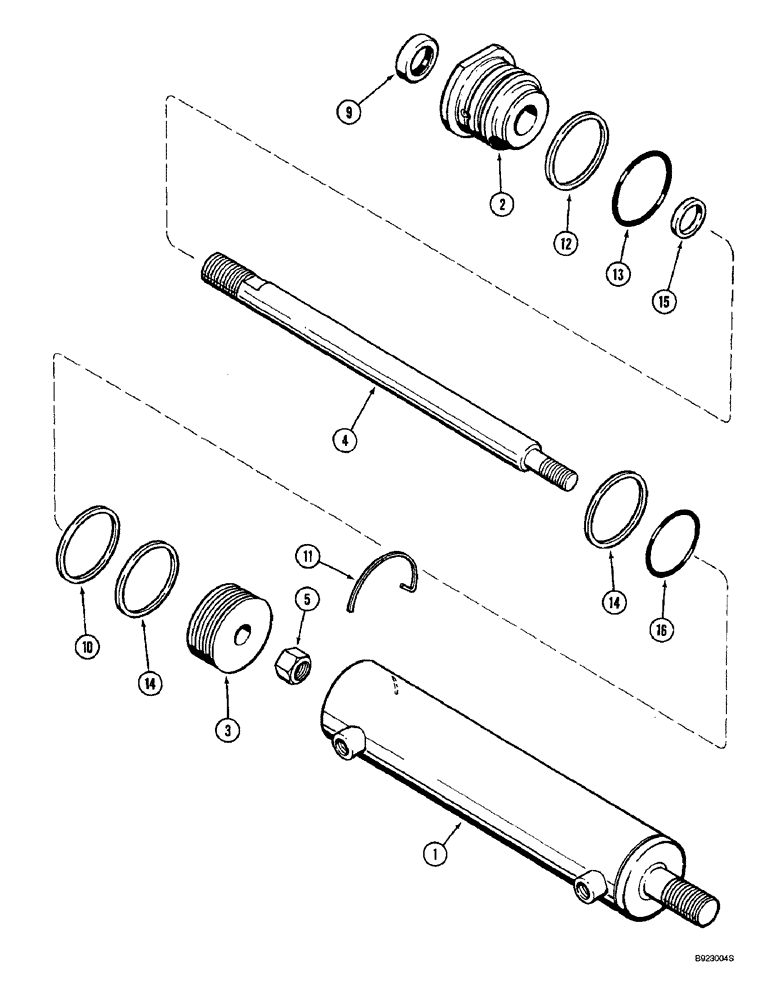

Запчасти Case IH 2188 (5-36) - STEERING CYLINDER ASSEMBLY (04) - STEERING

1958024C1

STEERING CYLINDER

CYLINDER ASSEMBLY - 2-1/2 (64) ID x 9 inch (229 mm) stroke, Includes: Ref. 1 - 16

1шт.

87337226R

REMAN-HYD CYLINDER

2188 ( 1/95 - 12/97 ) Reman For New P/N 1958024C1

1шт.

87337226C

CORE-HYD CYLINDER

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - cylinder, order cylinder assembly 1958024C1

1шт.

2

1958020C1

GLAND

- cylinder

1шт.

3

1958021C1

PISTON

- cylinder

1шт.

4

127920C2

PISTON ROD

ROD - piston

1шт.

5

232-46310

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

1971520C1

SEAL KIT

KIT - seal, Includes: Ref. 9 - 16

1шт.

9

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - rod, piston

1шт.

11

NSS

NOT SOLD SEPARAT

WIRE - retaining

1шт.

12

NSS

NOT SOLD SEPARAT

RING - backup, O-ring

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - head, 2-1/8 x 2-1/2 inch, class 5

1шт.

14

NSS

NOT SOLD SEPARAT

RING - piston

2шт.

15

NSS

NOT SOLD SEPARAT

RING - piston, teflon

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - piston, 2-1/16 x 2-1/4 inch

1шт.
