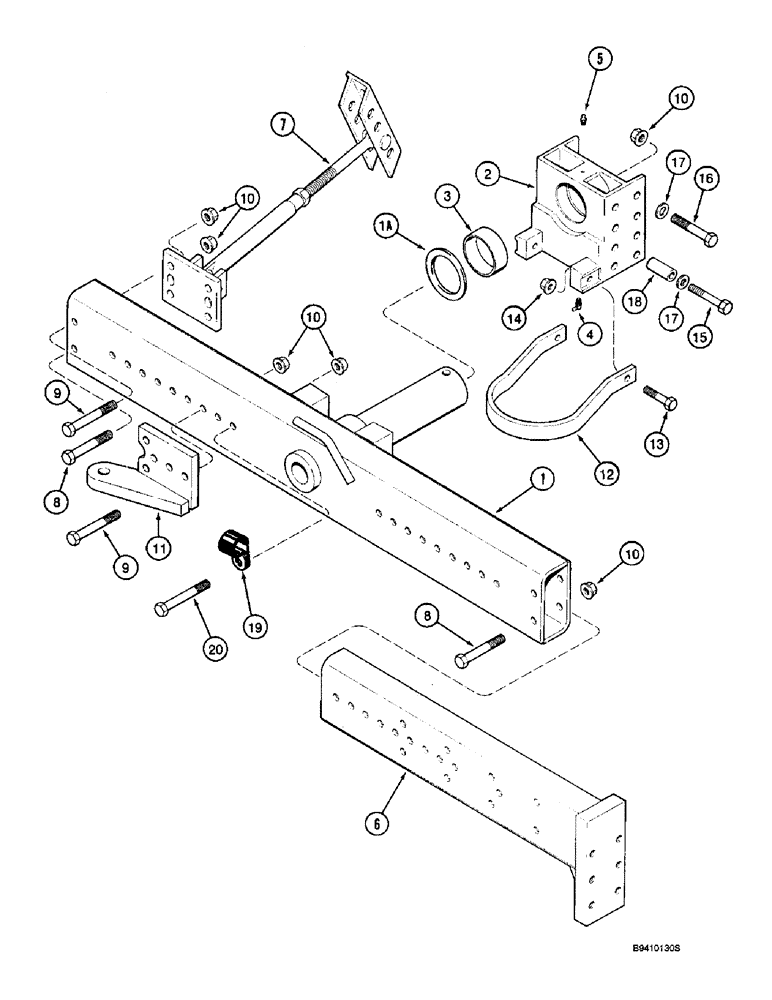

Запчасти Case IH 2188 (5-34) - STEERING AXLE AND EXTENSIONS, POWER GUIDE AXLE (04) - STEERING

1

1968991C1

AXLE

ASSEMBLY - adjustable, 108 to 144 inch, Includes: Ref. 1A

1шт.

1a

168385C2

WASHER,102.6mm ID x 127mm OD x 3.3mm Thk

- flat, special

2шт.

2

186599C93

SUPPORT

ASSEMBLY - axle pivot, Includes: Ref. 3

1шт.

3

177751C1

BUSHING,101.7mm ID x 106.36mm OD x 38.1mm L

- axle pivot support

2шт.

4

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

Special taper 90º, 1/4"-28 NPT x .75" lg, Drive

1шт.

5

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

6

1968992C1

AXLE

EXTENSION - axle

2шт.

7

REF

INSTRUCTION

SUPPORT ASSEMBLY - stay, axle, see Ref. 16 - 24, Figure 5-32

2шт.

8

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

- hex, 3/4 NC x 5 inch

11шт.

9

326-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 8

4шт.

10

232-51312

FLANGE NUT,Flg, USR, 3/4"-10

(G8) Flg, USR, 3/4"-10

1шт.

11

1968993C1

SUPPORT

- steering bracket

1шт.

12

1979114C1

STRAP

- tow

1шт.

13

326-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 8

2шт.

14

231-51410

FLANGE NUT,Flg, USR, 5/8"-11

2шт.

15

326-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 8

2шт.

16

413-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

- hex, 3/4 NC x 4-1/2 inch

6шт.

17

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

8шт.

18

177748C1

SPACER

- 13/16 x 1-1/4 x 2-13/16 inch

8шт.

19

195618A1

CLAMP

- P-type, special, 1-7/8 inch ID

1шт.

20

326-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 8

1шт.
