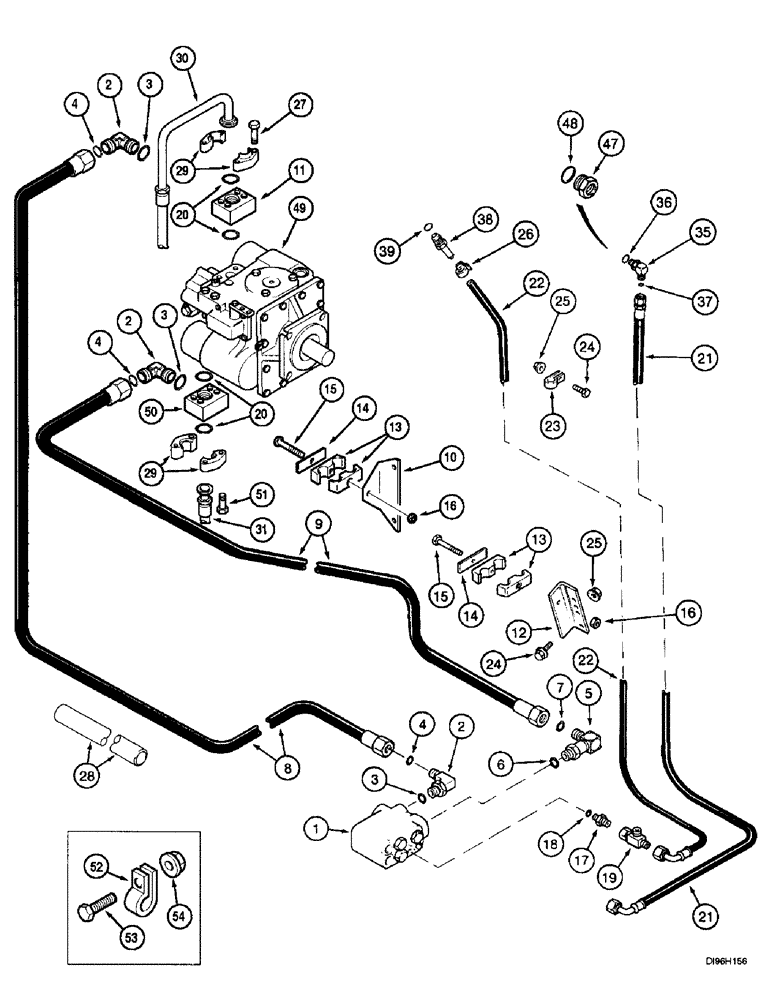

Запчасти Case IH 2188 (5-27A) - SELECTOR VALVE HYDRAULIC SYSTEM, POWER GUIDE AXLE, COMBINE S/N JJC0193725 AND AFTER (04) - STEERING

1

1978000C1

VALVE

ASSEMBLY - selector, corn and grain, parts list Figure 5-38

1шт.

2

201-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

- 90 degree, 1-3/16-12 face seal x 1-1/16-12 inch adjustable O-ring boss, Includes: Ref. 3 and 4

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

4

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

5

201-365

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

- 90º long, 1-3/16-12 face seal x 1-1/16-12 inch Adj O-ring boss, Incl Ref. 6 and 7

1шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

7

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

8

227643A1

HOSE,19.05mm ID x 3050mm L

- 120-5/64 inch (3050 mm) long

1шт.

9

227642A1

HOSE,19.05mm ID x 2540mm L

- 100 inch (2540 mm) long

1шт.

10

235195A1

SUPPORT

BRACKET - upper hose clamp

1шт.

11

226646A1

BLOCK

- adapter manifold

1шт.

12

1324467C2

ANGLE

BRACKET - hose angle

1шт.

13

1324473C1

CLAMP

- hose

2шт.

14

1324469C1

PLATE

- clamp

2шт.

15

326-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 8

5/16"-18 x 3 1/4", G8

2шт.

16

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.

17

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ADAPTER - straight, 3/4-16 flare x 9/16-18 inch O-ring boss, Includes: Ref. 18

1шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

19

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- 3/4-16 inch flare branch x flare x swivel

1шт.

20

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

4шт.

21

240455A1

HOSE

- 131-1/2 inch (3340 mm) long

1шт.

22

240456A1

HOSE,12.7mm ID x 3560mm L

- 140-5/32 inch (3560 mm) long

1шт.

23

L50062

SHIN

CLAMP - P-type

1шт.

24

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

3шт.

25

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

3шт.

26

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP, HOSE, #12, 0.69/1.25 Type F Worm

1шт.

27

413-756

BOLT,Hex, 7/16" - 14 x 3-1/2", Gr 5

- hex, 7/16 NC x 3-1/2 inch

2шт.

28

240575A1

HOSE PROTECTION

SLEEVE - nylon, 60 inch (1524 mm) long

2шт.

29

S97224

CLAMP

- split flange, 1 inch

4шт.

30

227641A2

HOSE

- 159-5/8 inch (4055 mm) long

1шт.

31

227640A1

HOSE,25.4mm ID x 3455mm L

- 136 inch (3455 mm) long

4шт.

35

135485A1

ELBOW

- 90 degree, special, with orifice

1шт.

36

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

37

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

38

217-397

FITTING,1/2" Hose Barb x 9/16" - 18 Male ORB

Adapter - straight, 1/2 stem end x 9/16-18 inch Adj O-ring boss, Incl Ref 39

1шт.

39

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

40

196443A1

REDUCER

ADAPTER - straight, special, 7/16-20 female x 7/8-14 inch O-ring boss, PGA flush supply hose, used on rice models

1шт.

41

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

47

196443A1

REDUCER

ADAPTER - straight, special, 7/16-20 female x 7/8-14 inch O-ring boss, PGA flush supply hose, used on rice models

1шт.

48

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

49

1343716C4

PUMP, HYDROSTATIC

PUMP ASSEMBLY - hydrostatic, see Figures 6-22 - 6-30

1шт.

49

87637528R

REMAN-HYDROSTAT PUMP

2188 (1/95-12/97), SELECTOR VALVE HYDRAULIC SYSTEM, POWER GUIDE AXLE, COMBINE S/N JJC0193725 AND AFTER. Reman for New P/N 1343716C4

1шт.

49

87637528C

CORE-HYDROSTAT PUMP

Return Part Number

1шт.

49

87659947

REMAN-HYDROSTAT PUMP

Remanufactured HYDROSTATIC PUMP

1шт.

49

400478A1C

CORE-HYDROSTAT PUMP

Return Part Number, HYDROSTATIC PUMP

1шт.

50

226647A1

ADAPTER

BLOCK - adaptor manifold

1шт.

51

413-788

BOLT,Hex, 7/16" - 14 x 5-1/2", Gr 5

- hex, 7/16 NC x 5-1/2 inch

4шт.

52

515-23175

CLAMP,11/16", Insul, 3/8" Bolt

- P-type, 7/8 inch ID

1шт.

52

515-23238

CLAMP,15/16", Insul, 3/8" Bolt

P-type 15/16", Insul, 3/8" Bolt

1шт.

52

515-23333

CLAMP,1 5/16", Insul, 3/8" Bolt

P-type 1 5/16", Insul, 3/8" Bolt

2шт.

53

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

4шт.

54

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.
