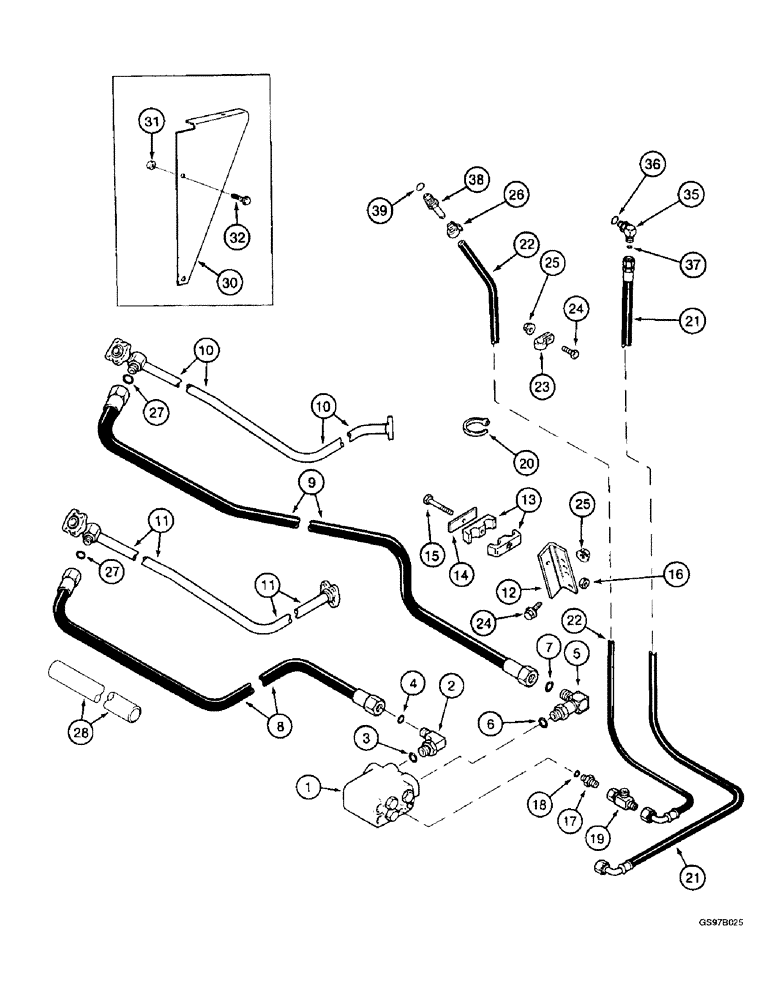

Запчасти Case IH 2188 (5-26) - SELECTOR VALVE HYDRAULIC SYSTEM, POWER GUIDE AXLE, PRIOR TO COMBINE S/N JJC0193725 (04) - STEERING

1

1978000C1

VALVE

ASSEMBLY - selector, corn and grain, parts list Figure 5-38

1шт.

1

1347194C1

VALVE

ASSEMBLY - selector, rice, parts list Figure 5-40

1шт.

2

201-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

- 90 degree, 1-3/16-12 face seal x 1-1/16-12 inch adjustable O-ring boss, Includes: Ref. 3 and 4

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

4

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

5

201-365

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

- 90º long, 1-3/16-12 face seal x 1-1/16-12 inch Adj O-ring boss, Incl Ref. 6 and 7

1шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

7

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

8

1989218C1

HOSE

- 77-3/8 inch (1965 mm) long

1шт.

9

1979171C1

HOSE,19.05mm ID x 2165mm L

- 85-1/4 inch (2165 mm) long

1шт.

10

1541756C2

HYD TUBE

TUBE - forward pressure

1шт.

11

1541757C2

HYD TUBE,1" OD, 2045.6, 225.2 mm Length

TUBE - reverse pressure

1шт.

12

1324467C2

ANGLE

BRACKET - hose angle

1шт.

13

1324473C1

CLAMP

- hose

2шт.

14

1324469C1

PLATE

- clamp

2шт.

15

326-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 8

5/16"-18 x 3 1/4", G8

2шт.

16

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.

17

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ADAPTER - straight, 3/4-16 flare x 9/16-18 inch O-ring boss18

1шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

19

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- 3/4-16 inch flare branch x flare x swivel

1шт.

20

702093C1

CABLE TIE

STRAP - tie

5шт.

21

129187A1

FLEXIBLE HOSE

HOSE - 135-7/8 inch (3450 mm) long

1шт.

22

1957283C3

HOSE

- 134-1/4 inch (3410 mm) long

1шт.

23

L50062

SHIN

CLAMP - P-type

1шт.

24

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

3шт.

25

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

3шт.

26

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

CLAMP, HOSE, , Adjustable #4, 0.25/0.62 Type M Worm

1шт.

27

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

28

1970108C1

PROTECTIVE COVER

SLEEVE - nylon, 2-3/8 (60) ID x 48 inch (1219 mm) long

2шт.

30

142499A1

SUPPORT

BRACKET - hose support

1шт.

31

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

32

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

4шт.

35

135485A1

ELBOW

- 90 degree, special, with orifice

1шт.

36

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

37

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

38

217-397

FITTING,1/2" Hose Barb x 9/16" - 18 Male ORB

Adapter - straight, 1/2 stem end x 9/16-18 inch Adj O-ring boss, Incl Ref 39

1шт.

39

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
