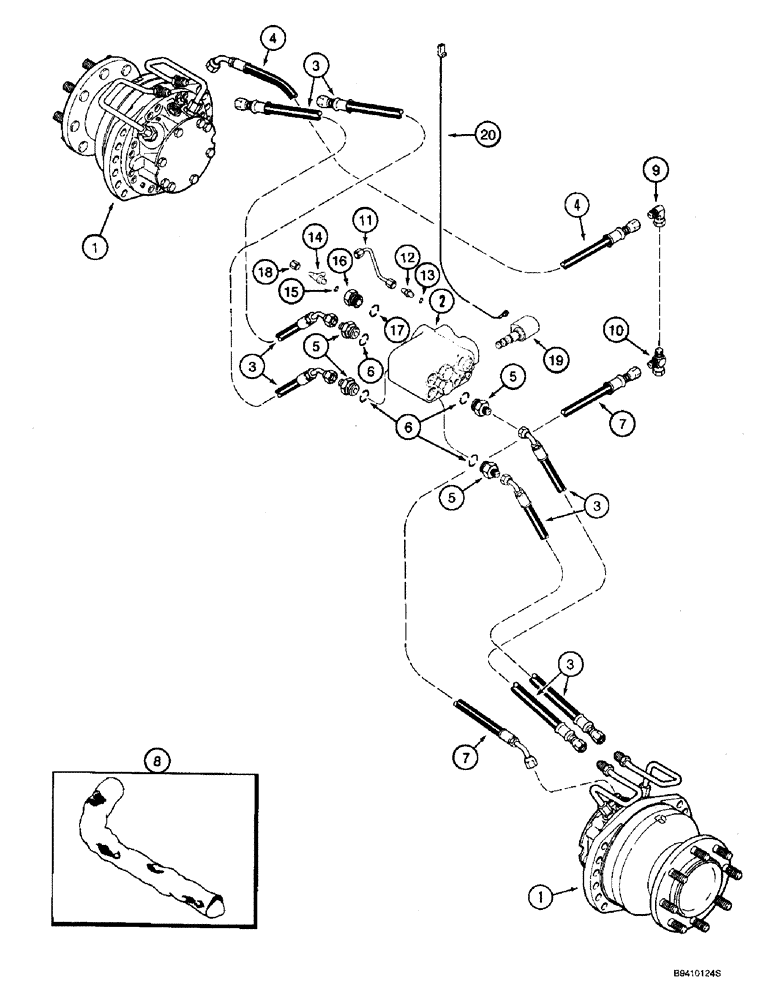

Запчасти Case IH 2188 (5-20) - AXLE HYDRAULIC MOTOR SYSTEM, POWER GUIDE AXLE (04) - STEERING

1

121436A1

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - drive, wheel, corn and grain, parts list Figure 5-42

2шт.

87300716R

REMAN-HYDROSTAT MOTO

2188 - CASE IH AXIAL-FLOW COMBINE - 1/95-12/97, Reman For New P/N's 121436A1 & 87300716

2шт.

87300716C

CORE-HYDROSTAT MOTOR

Return Number

1шт.

Motors do not include pressure tubes as shown in the illustration. See Figure 5-30 for pressure tubes.

1шт.

1

121437A1

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - drive, wheel, rice, parts list Figure 5-44

2шт.

Motors do not include pressure tubes as shown in the illustration. See Figure 5-30 for pressure tubes.

1шт.

2

1978000C1

VALVE

ASSEMBLY - selector, corn and grain, parts list Figure 5-38

1шт.

2

1347194C1

VALVE

ASSEMBLY - selector, rice, parts list Figure 5-40

1шт.

3

1968995C1

FLEXIBLE HOSE,12.7mm ID x 1752.6mm L, SAE 100R10

HOSE - 69 inch (1753 mm) long

4шт.

4

1968996C1

FLEXIBLE HOSE

HOSE - 79 inch (2007 mm) long

1шт.

5

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 3/4-16 flare x 1-1/16-12 inch O-ring boss, Includes: Ref. 6

4шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

7

1970135C1

HOSE

- 73 inch (1854 mm) long

1шт.

8

1970108C1

PROTECTIVE COVER

SLEEVE - nylon, 2-3/8 (60) ID x 48 inch (1219 mm) long

2шт.

9

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, 3/4-16 inch flare x swivel

1шт.

10

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- 3/4-16 inch flare branch x flare x swivel

1шт.

11

1970140C1

TUBE,4.78 mm ID

- pressure, charge

1шт.

12

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

ADAPTER - straight, 7/16-20 flare x O-ring boss, Incl. Ref. 13

1шт.

13

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

14

218-5289

TEE,7/16" - 20 Male JIC x 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 7/16-20 inch flare branch x flare x adjustable O-ring boss, Includes: Ref. 15

1шт.

15

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

16

1970176C1

PLUG

- hex, special, Includes: Ref. 17

1шт.

17

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

18

218-752

CAP,37 Degree, 7/16"-20

Hex 37º, 7/16"-20

1шт.

19

REF

INSTRUCTION

SOLENOID ASSEMBLY - spool, charge pressure, see Figure 5-38 or 5-40 for correct assembly, Ref. 60 - 64

1шт.

20

1964572C2

WIRE HARNESS

CABLE - power, solenoid

1шт.
