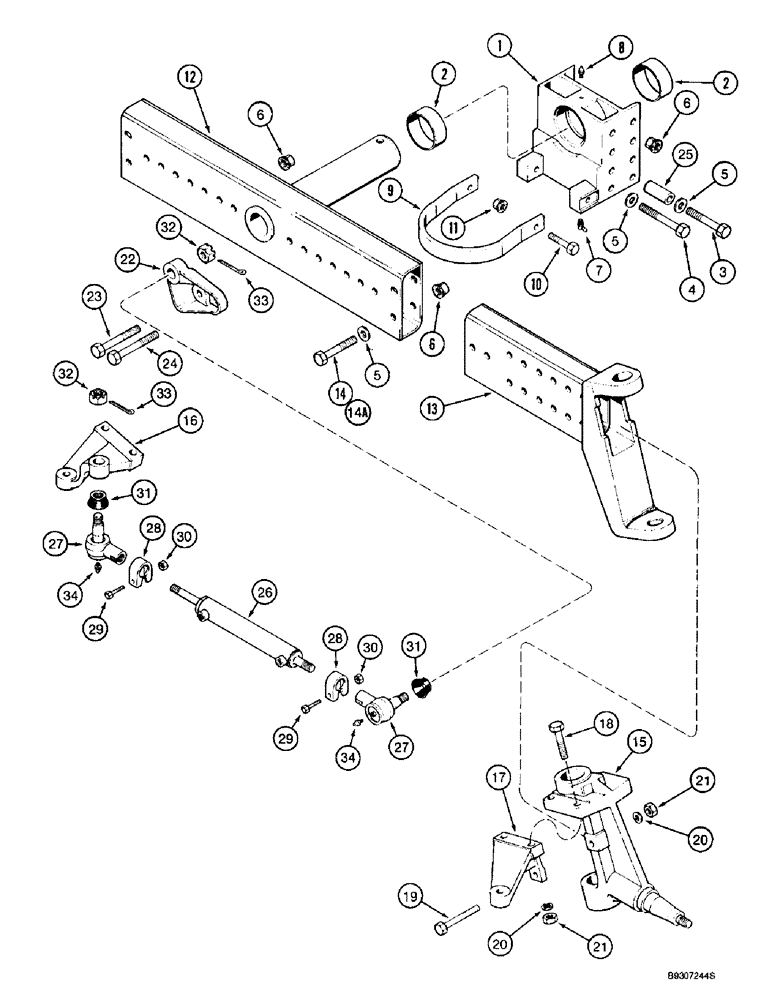

Запчасти Case IH 2188 (5-12) - STEERING AXLE, ADJUSTABLE (04) - STEERING

1

186599C93

SUPPORT

ASSEMBLY - axle pivot, Includes: Ref. 2

1шт.

2

177751C1

BUSHING,101.7mm ID x 106.36mm OD x 38.1mm L

- axle pivot

2шт.

3

326-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8

4шт.

3

326-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 8

2шт.

4

326-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 8

2шт.

5

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

12шт.

6

232-51312

FLANGE NUT,Flg, USR, 3/4"-10

(G8) Flg, USR, 3/4"-10

16шт.

7

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

Special taper 90º, 1/4"-28 NPT x .75" lg, Drive

1шт.

8

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

9

1302625C1

CHANNEL

STRAP - tow

1шт.

10

326-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 8

2шт.

11

231-51410

FLANGE NUT,Flg, USR, 5/8"-11

2шт.

12

242643A2

AXLE

- adjustable, 92 - 120 inch (Replaces axle 186317C3)

1шт.

SHIM THAT GOES BETWEEN REF #12 AND 13 TO ELIMINATE SIDE TO SIDE PLAY IS PART NUMBER 236028A2.

1шт.

13

186045C3

AXLE

EXTENSION - axle, 92 - 120 inch

2шт.

14

413-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

- hex, 3/4 NC x 4-1/2 inch

2шт.

14a

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

- hex, 3/4 NC x 5 inch

4шт.

15

REF

INSTRUCTION

KNUCKLE - steering, see Ref. 3, Figure 5-16

2шт.

16

186641C1

LEVER

ARM - steering

1шт.

17

186639C1

LEVER

ARM - steering

1шт.

18

326-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 8

4шт.

19

326-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 8

2шт.

20

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

21

429-1010

NUT,5/8"-11, G8

6шт.

22

133319A1

SUPPORT

ANCHOR - steering cylinder

1шт.

23

413-1292

BOLT,Hex, 3/4" -10 x 5-3/4", Gr 5

BOLT - hex, 3/4 NC x 5-3/4 inch

1шт.

24

413-1284

BOLT,Hex, 3/4" - 10 x 5-1/4", Gr 5

- hex, 3/4 NC x 5-1/4 inch

1шт.

25

177748C1

SPACER

- 13/16 x 1-1/4 x 2-13/16 inch

8шт.

26

1958024C1

STEERING CYLINDER

CYLINDER ASSEMBLY - 2-1/2 (64) ID x 9 inch (229 mm) stroke

1шт.

87337226R

REMAN-HYD CYLINDER

2188 ( 1/95 - 12/97 ) Reman For New P/N 1958024C1

1шт.

87337226C

CORE-HYD CYLINDER

Return Number

1шт.

27

186140C91

BALL JOINT

END ASSEMBLY - steering cylinder, Includes: Ref. 28 - 32

2шт.

28

446308C91

CLAMP

ASSEMBLY - steering cylinder end, Includes: Ref. 29 - 32

1шт.

29

413-730

BOLT,Hex, 7/16" - 14 x 1-7/8", Gr 5

- hex, 7/16 NC x 1-7/8 inch

1шт.

30

231-4117

LOCK NUT,7/16"-14, GB

NUT - hex, self-locking, 7/16 inch NC

1шт.

31

110373R1

DUST CAP

SEAL - end, cylinder

1шт.

32

425-1314

SLOTTED NUT,7/8"-14, G5

NUT - hex, slotted, 7/8 inch NF

1шт.

33

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

2шт.

34

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.
