(5-10) - STEERING AXLE SUPPORT, ADJUSTABLE AXLE

Запчасти Case IH 2188 (5-10) - STEERING AXLE SUPPORT, ADJUSTABLE AXLE (04) - STEERING

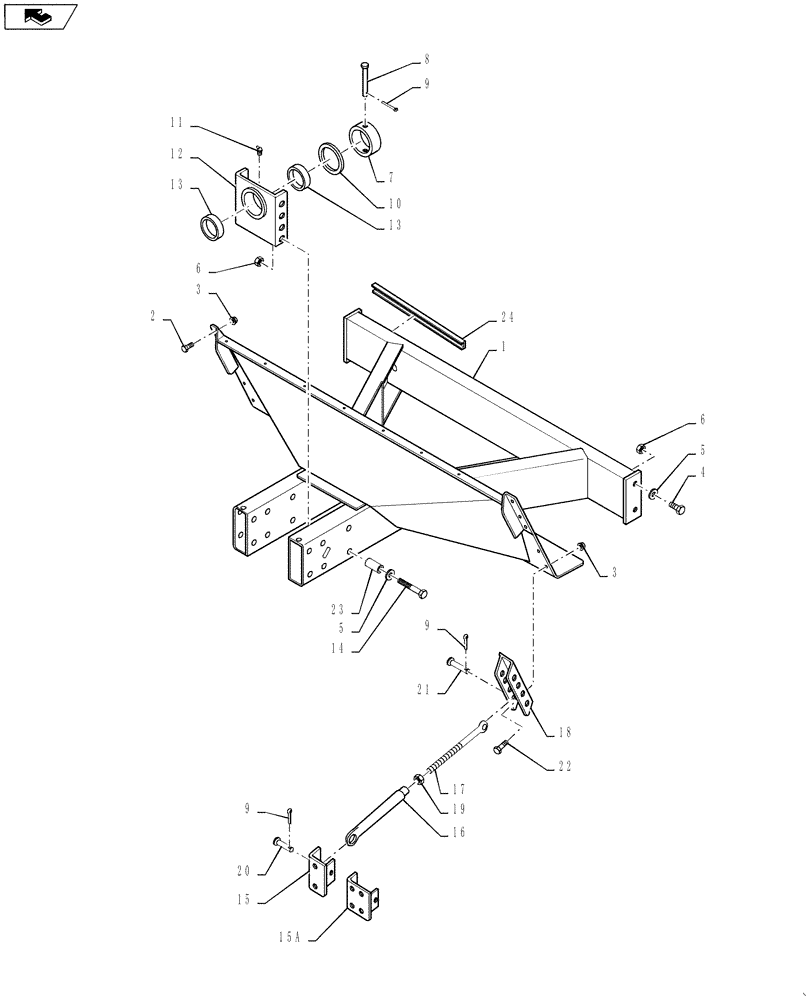

Схема запчастей Case IH 2188 - (5-10) - STEERING AXLE SUPPORT, ADJUSTABLE AXLE (04) - STEERING
24
21
19
11
6
3
7
13
22
3
17
9
5
20
1
15
home
9
16
5
8
6
2
18
23
12
14
10
4
13
15a
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1322259C3

SUPPORT

- steering axle

1шт.

2

426-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex, 1/2 NC x 1 inch, grade 8

12шт.

3

232-5138

FLANGE NUT,Flg, USR, 1/2"-13, G8

12шт.

4

426-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 8

- hex, 3/4 NC x 1-1/2 inch, grade 8

4шт.

5

496-21081

WASHER,13/16" x 1 1/2" x .179", HDN

8шт.

6

232-51312

FLANGE NUT,Flg, USR, 3/4"-10

(G8) Flg, USR, 3/4"-10

8шт.

7

182795C1

BUSHING,101.68mm ID x 127mm OD x 44.7mm L

- axle pivot

1шт.

8

439-11288

HEADED PIN,19.05mm OD x 139.7mm L

PIN - headed, 3/4 x 5-1/2 inch, grade 2

1шт.

9

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

10

168385C2

WASHER,102.6mm ID x 127mm OD x 3.3mm Thk

- flat, special

2шт.

11

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

FITTING - grease, 45 degree, 1/4-28 special taper x 13/16 inch, if used

2шт.

11a

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Not shown (Replaces 45 degree fitting 219-90) 1/4"-28 x .56" lg, Self-Tap

2шт.

12

182792C95

SUPPORT ASSY.

SUPPORT ASSEMBLY - pivot, front, Includes: Ref. 13

1шт.

13

182794C1

BUSHING,101.77mm ID x mm OD x 19.1mm L

BUSHING - axle pivot

2шт.

14

326-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8

4шт.

15

183152C1

SUPPORT

- rear, if used

2шт.

15a

254425A1

SUPPORT

- rear, if used

2шт.

If looking for spacer for Ref. # 15A, part number is 254598A1.

1шт.

16

181444C1

TIE-ROD,1" - 8

BODY - adjusting rod

2шт.

17

181442C3

EYEBOLT,1" - 8 x 381mm

ROD - adjusting

2шт.

18

1541603C1

SUPPORT

BRACKET - adjusting rod, front

2шт.

19

425-1016

NUT,1"-8, G5

- hex, 1 inch NC

2шт.

20

439-11488

HEADED PIN,22.23mm OD x 139.7mm L

PIN - headed, 7/8 x 5-1/2 inch, grade 2

2шт.

21

439-11456

HEADED PIN,22.23mm OD x 88.9mm L

PIN - headed, 7/8 x 3-1/2 inch, grade 2 (Replaces 3 inch pin 39-11448)

2шт.

22

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

- hex, 1/2 NC x 1-1/2 inch, grade 8

6шт.

23

177748C1

SPACER

- 13/16 x 1-1/4 x 2-13/16 inch

4шт.

24

120895A1

GROMMET

- steering axle support

1шт.
