Запчасти Case IH 2188 (5-08) - STEERING HAND PUMP ASSEMBLY (04) - STEERING

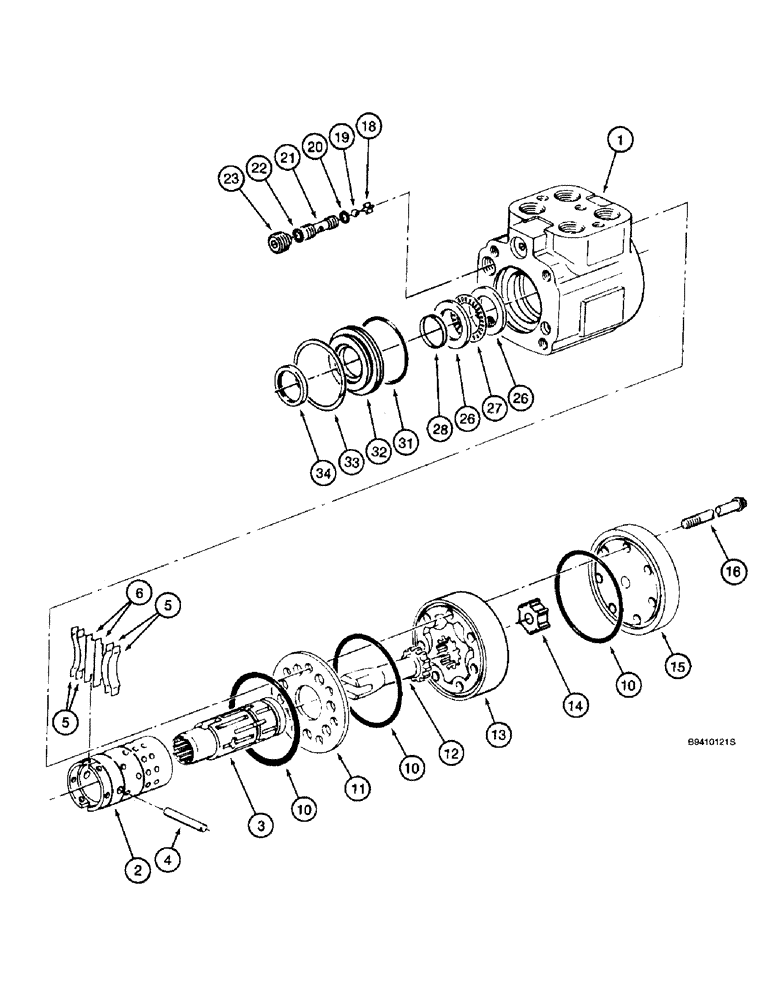

Схема запчастей Case IH 2188 - (5-08) - STEERING HAND PUMP ASSEMBLY (04) - STEERING
2
34
14
33
26
10
15
4
22
13
11
32
26
12
10
28
3
5
20
21
18
27
16
23
6
5
31
1
10
19

Артикул

Название

Примечание

Количество

123274A1

O-RING KIT

ASSEMBLY - steering, hand, Includes: Ref. 1 - 34

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY - pump

1шт.

NSS

NOT SOLD SEPARAT

VALVE - check, manual steering, not shown

1шт.

NSS

NOT SOLD SEPARAT

VALVE - check, inlet, not shown

1шт.

2

NSS

NOT SOLD SEPARAT

SLEEVE - control

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - control

1шт.

4

L30888

PIN

- roll

1шт.

1986600C1

KIT

- centering spring, Includes: Ref. 5 and 6

1шт.

5

NSS

NOT SOLD SEPARAT

SPRING - centering

1шт.

6

NSS

NOT SOLD SEPARAT

SPACER - spring

2шт.

10

238-6040

O-RING,0.07" Thk x 2.864" ID, -40, Cl 6, 90 Duro

3шт.

11

S113037

PLATE

- spacer

1шт.

12

L30878

DRIVE SHAFT

SHAFT - drive, gerotor

1шт.

13

143721A1

GEAR-SET

GEROTOR - pump

1шт.

14

1346276C1

SPACER

- gerotor

1шт.

15

136493A1

COVER

CAP - end (Replaces cap D82809)

1шт.

16

143717A1

SCREW,Torx Hd, Flg, 5/16" - 24 x 2"

BOLT - 12 point flange, special, 5/16 NC x 2 inch

7шт.

18

L35368

RETAINER

- check ball

1шт.

19

211-1010

BALL,5/16" OD

- chrome alloy steel, 5/16 inch, grade 24

1шт.

20

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

21

D82806

VALVE SEAT

SEAT - ball

1шт.

22

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk

1шт.

23

D82805

SET SCREW

SCREW - set

1шт.

26

D82804

RACE

- thrust, bearing

2шт.

27

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

BEARING, THRUST - Needle

1шт.

28

121179A1

SEAL

- teflon

1шт.

31

238-5225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

1шт.

32

N13312

CYLINDER END CAP

BUSHING - seal gland

1шт.

33

S110169

WASHER

RING - retaining

1шт.

34

697494R91

OIL SEAL

SEAL - 1 inch ID

1шт.

1343658C3

SEAL KIT

KIT - seal, low torque, Includes: Ref. 10, 20, 22, 28, 31 and 34

1шт.

Выбрано товаров: 31
