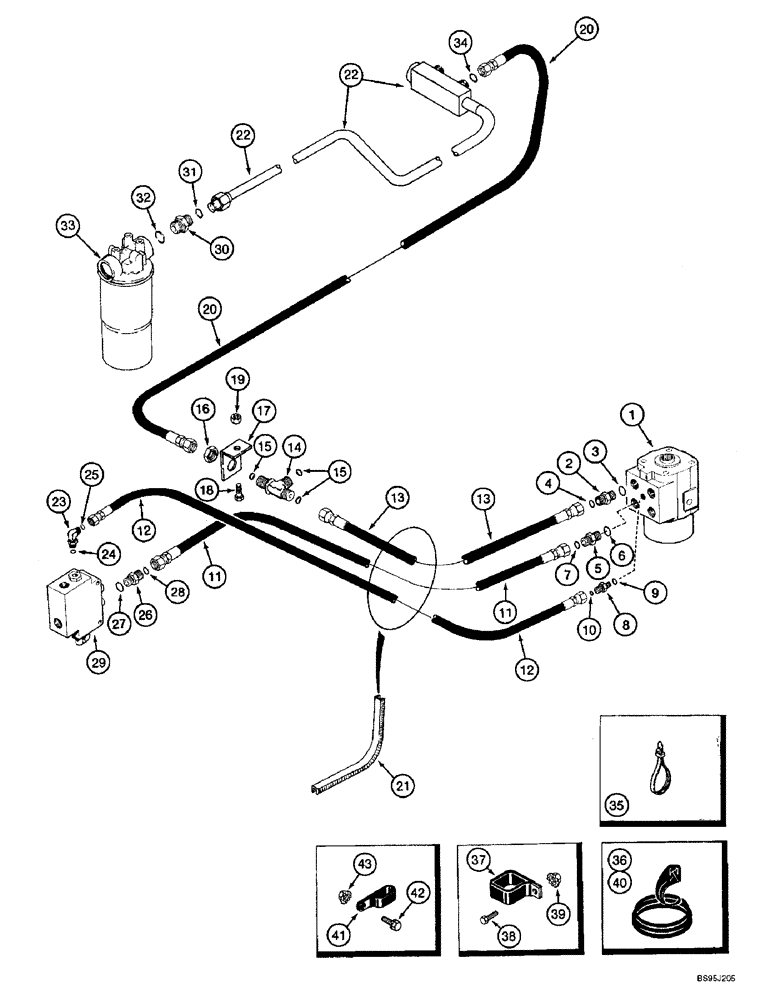

Запчасти Case IH 2188 (5-04) - POWER STEERING SYSTEM, SUPPLY AND RETURN (04) - STEERING
№
Артикул
Название
Примечание
Количество
1
123274A1
O-RING KIT
ASSEMBLY - steering, hand, parts list Figure 5-8
1шт.
2
201-102
HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB
ADAPTER - straight, 13/16-16 face seal x 3/4-16 inch O-ring boss, Includes Ref. 3 and 4
1шт.
3
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk
1шт.
5
175170A1
ADAPTER
- straight, special, 11/16-16 face seal x 3/4-16 inch O-ring, Includes: Ref. 6 anf 7
1шт.
6
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk
1шт.
7
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
8
201-100
HYD CONNECTOR,9/16" - 18 Male ORFS x 7/16" - 20 Male ORB
ADAPTER - straight, 9/16-18 face seal x 7/16-20 inch O-ring boss, Includes: Ref. 9 and 10
1шт.
9
237-6004
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
4-1, 90 Duro, .351" ID x .072" Thk
1шт.
10
238-6011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
1шт.
11
237430A1
FLEXIBLE HOSE
HOSE - steering supply, 85-1/16 inch (2160 mm) long (Replaces hose 128006A1)
1шт.
12
237432A1
FLEXIBLE HOSE
HOSE - steering signal, 88 inch (2235 mm) long (Replaces hose 128012A1)
1шт.
13
128009A1
FLEXIBLE HOSE
HOSE - steering return, 42-5/16 inch (1100 mm) long
1шт.
14
201-423
TEE,9/16"-18, Blkhd, Run, ORFS
- 13/16-16 inch face seal branch x face seal x bulkhead face seal, Includes: Ref. 15
1шт.
16
201-903
TUBE NUT,Blkhd, 13/16"-16
NUT, LOCK, Blkhd, 13/16"-16
1шт.
17
141130A1
SUPPORT
BRACKET - support, hydraulic line, bulkhead type
1шт.
18
614-8025
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd
- hex, full threads, 8 - 1.25 x 25 mm
1шт.
19
832-10408
NUT,M8 x 1.25, Cl 8.8
NUT, M8 x 1.25, Cl 8
1шт.
20
237431A1
FLEXIBLE HOSE
HOSE - 49-1/4 inch (1250 mm) long (Replaces hose 141128A1)
1шт.
21
137818A1
GROMMET
GUARD - nylon, flexible edging, 210 mm long
1шт.
22
124380A1
TUBE
- manifold, hydraulic return
1шт.
23
201-303
ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 7/16" - 20 Male ORB
- 90 degree, 9/16-18 face seal x 7/16-20 inch adjustable O-ring boss, Includes: Ref. 24 and 25
1шт.
24
237-6004
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
4-1, 90 Duro, .351" ID x .072" Thk
1шт.
25
238-6011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
1шт.
26
201-106
HYD CONNECTOR,11/16" - 16 Male ORFS x 3/4" - 16 Male ORB
ADAPTER - straight, 11/16-16 face seal x 3/4-16 inch O-ring boss, Includes: Ref. 27 and 28
1шт.
27
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk
1шт.
28
238-6012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
1шт.
29
114851A2
VALVE
ASSEMBLY - priority, steering, parts list Figure 5-50
1шт.
30
201-122
HYD CONNECTOR,1 7/16"-12 ORFS x 1 5/8"-12 ORB
ADAPTER - straight, 1-7/16-12 face seal x 1-5/8-12 inch O-ring boss, Includes: Ref. 31 and 32
1шт.
31
238-6021
O-RING,15/16 X 1 - 1/16, Cl 6
1шт.
32
237-6020
O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro
20-1, 90 Duro, 1.475" ID x .118" Thk
1шт.
33
87784C92
HYDRAULIC OIL FILTER
FILTER ASSEMBLY - hydraulic return, parts list Figure 8-6
1шт.
35
306132C1
CABLE TIE,14.5" L
STRAP - tie, 14 inch
1шт.
36
1327979C1
MOLDING
TRIM - edge, 6 inch (152 mm) long, cut from 1330108CX bulk trim below
1шт.
37
1301387C2
CLIP
CLAMP - square, 2 inch ID
1шт.
38
614-8025
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd
- hex, full threads, 8 - 1.25 x 25 mm
1шт.
39
825-5148
SERRATED NUT,M8, Flg Ser
1шт.
40
NSS
NOT SOLD SEPARAT
TRIM - edge, 12-5/16 inch (313 mm) long, cut from 1330108CX bulk trim below
1шт.
41
470375C1
CLAMP,1", Insul, 3/8" Bolt
- double, purchase locally
1шт.
42
409-7512
BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl
- hex serrated flange, 5/16 NC x 3/4 inch
1шт.
43
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
NUT - hex serrated flange, 5/16 inch NC
1шт.
1330108CX
SEAL,304.8mm L
TRIM - edge, bulk, 600 inch (15240 mm) long
1шт.
Выбрано товаров: 44
