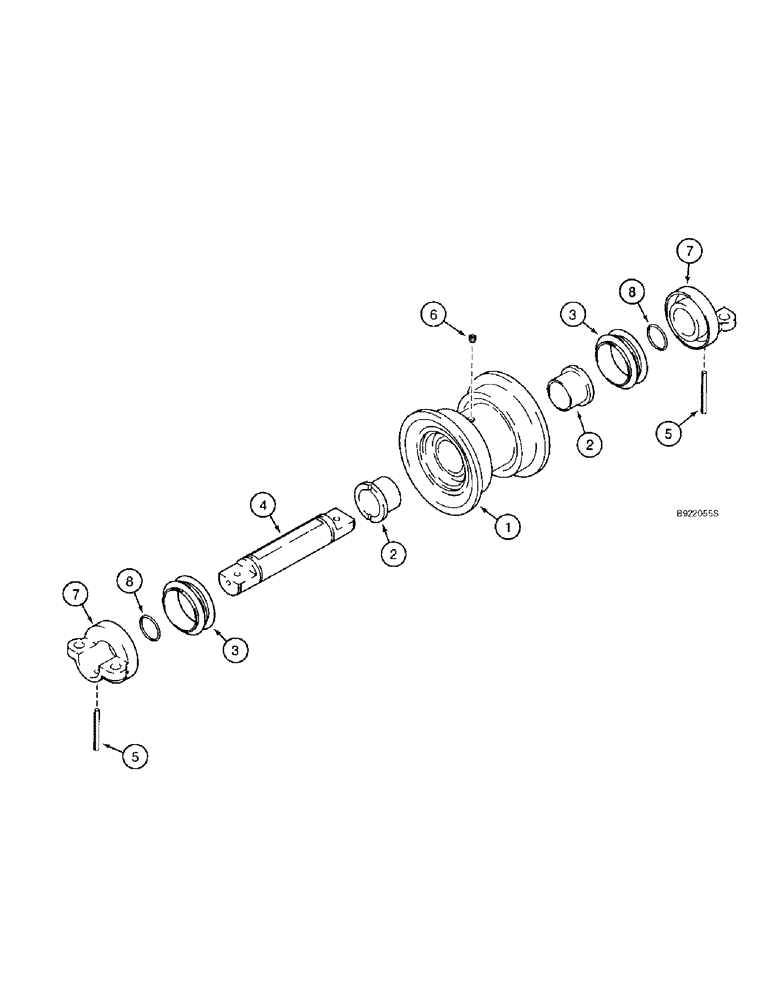

Запчасти Case IH 2188 (6-80) - TRACK ROLLER (03) - POWER TRAIN

R57357

TRACK ROLLER

ROLLER ASSEMBLY - track, Includes: Ref. 1 - 8

12шт.

1

R57360

ROLLER ASSY.

ROLLER ASSEMBLY - track, Includes: Ref. 2

1шт.

2

R33556

BUSHING,50.28mm ID x 70.5mm OD x 46mm L

- flanged

2шт.

3

S113075

SEAL

- face, shaft

2шт.

4

R33569

SHAFT

- roller

1шт.

5

R33570

PIN

- roll, special

2шт.

6

R33557

PLUG

- hex socket

1шт.

7

R33568

BRACKET

- track roller mounting and shaft support

2шт.

8

238-5224

O-RING,0.139" Thk x 1.734" ID, -224, Cl 5, 75 Duro

2шт.
