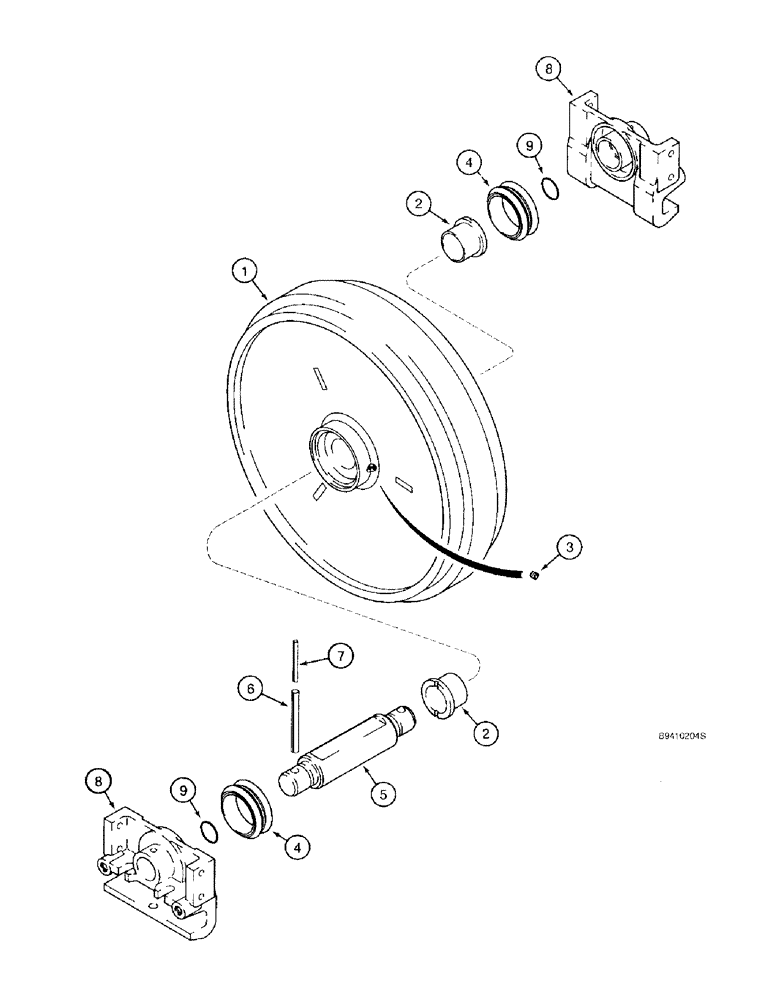

Запчасти Case IH 2188 (6-78) - TRACK IDLER (03) - POWER TRAIN

R53591

FRONT IDLER

IDLER ASSEMBLY - track, front and rear, Includes: Ref. 1 - 9

4шт.

1

NSS

NOT SOLD SEPARAT

IDLER ASSEMBLY - track, order idler assembly R53591, Includes: Ref. 2

1шт.

2

R33556

BUSHING,50.28mm ID x 70.5mm OD x 46mm L

- flanged

2шт.

3

R33557

PLUG

- hex socket

1шт.

4

S113075

SEAL

- oil, idler

2шт.

5

R53596

SHAFT

- idler

1шт.

6

838-51065

LOCK PIN,M10 x 65, Slotted

PIN - roll, 10 x 65 mm

2шт.

7

R53595

PIN, ROLL

PIN - roll, 6 x 65 mm

2шт.

8

R53599

BRACKET

SUPPORT - idler end cap

2шт.

9

238-5221

O-RING,0.139" Thk x 1.421" ID, -221, Cl 5, 75 Duro

2шт.
