(6-76) - TRACK CHAIN

Запчасти Case IH 2188 (6-76) - TRACK CHAIN (03) - POWER TRAIN

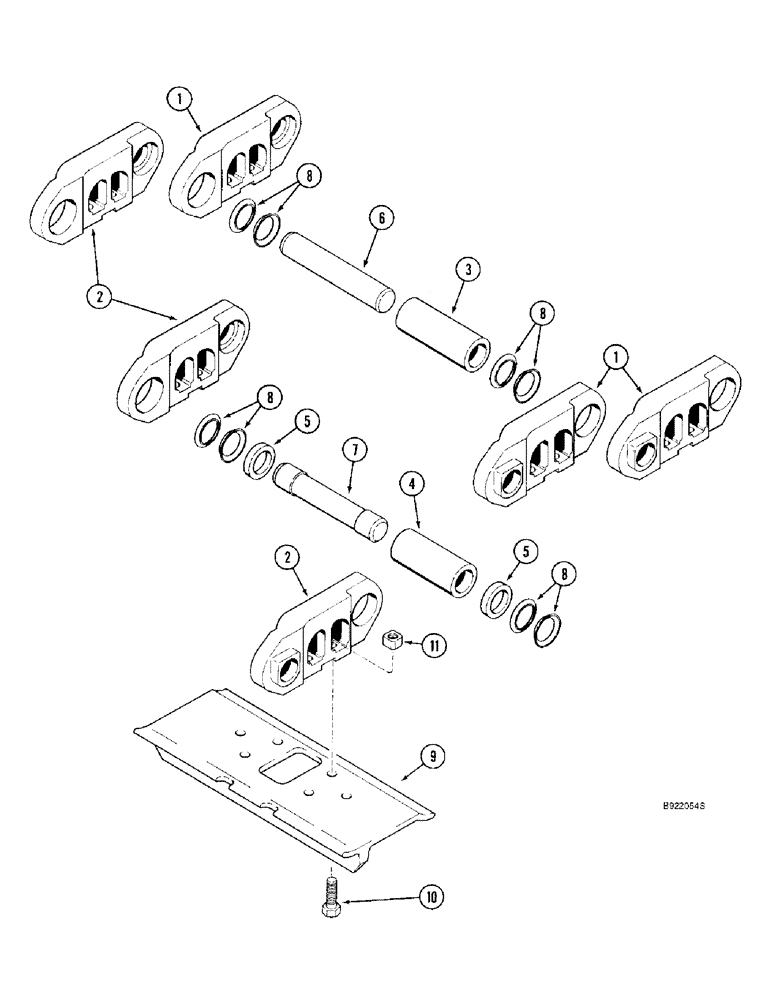

Схема запчастей Case IH 2188 - (6-76) - TRACK CHAIN (03) - POWER TRAIN
8
3
2
1
5
7
9
8
11
8
1
10
8
4
6
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1541593C1

TRACK CHAIN

CHAIN ASSEMBLY - track with shoes, no longer available, order chain assembly 1541710C1, Includes: Ref. 1 - 11

2шт.

1541710C1

TRACK CHAIN

CHAIN ASSEMBLY - track without shoes, Includes: Ref. 1 - 8

1шт.

1

R57403

CHAIN LINK

LINK, CHAIN, Track, LH

39шт.

2

R57404

CHAIN LINK

LINK, CHAIN, Track, RH

39шт.

3

R57378

BUSHING

- link, 4-3/4 inch long

38шт.

4

R57379

BUSHING

- master link, 4 inch long

1шт.

5

R57411

SPACER

- master bushing

2шт.

6

R57367

PIN

- 1-1/8 inch (29 mm) diameter, chain link

38шт.

7

R57366

PIN,28.24mm OD x 167mm L

- master link

1шт.

8

R52291

SEAL

- Belleville spring

156шт.

9

R57420

TRACK SHOE

SHOE - track, single grouser, 20 inch

39шт.

10

R57374

BOLT

BOLT - hex, special, 9/16 NF x 1-25/32 inch

156шт.

11

R57375

SQUARE NUT

- square, special

156шт.
