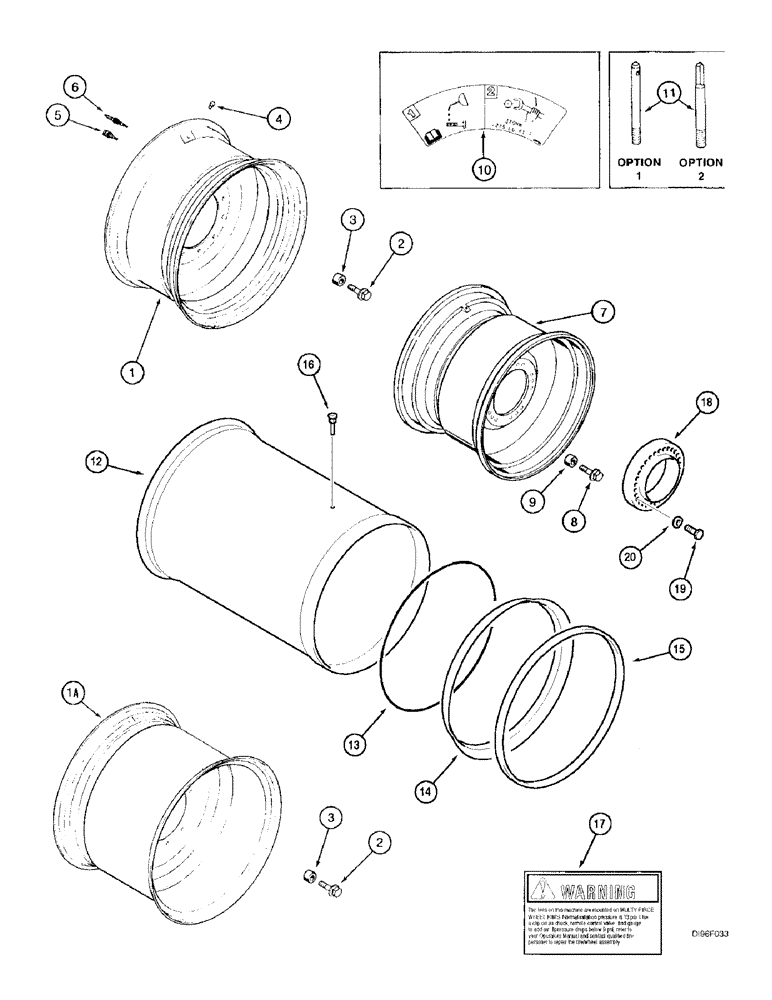

Запчасти Case IH 2188 (6-68) - DRIVE WHEELS, SINGLE (03) - POWER TRAIN

1

184482C4

WHEEL

- drive, 24.5 x 32 inch tire, used with standard and heavy duty final drives with 10 bolt mounting

2шт.

1a

184480C4

WHEEL

- drive, 30.5L x 32 inch tire, used with standard and heavy duty final drives with 10 bolt mounting

2шт.

2

130965A1

FLANGE BOLT,Hex, M20 x 1.5 x 70mm, Cl 10.9

BOLT - hex flange, 20 - 1.5 x 70 mm, class 10.9, wheel mounting

20шт.

3

130871A2

SPACER

- wheel mounting bolt

20шт.

4

417194C1

PLUG

- valve hole, used with tubeless tires

2шт.

4

383697R1

PLUG

- valve hole, used with tube type tires

2шт.

5

179482C1

VALVE STEM

VALVE - inflation, 7/16 inch diameter, used with tubeless tires

2шт.

6

407184R1

VALVE

- inflation, used with tubeless tires

2шт.

7

132694A1

RIM

WHEEL - drive, 35.5L x 32 inch tube type tire, used with heavy duty final drive with 15 bolt mounting

2шт.

8

130965A1

FLANGE BOLT,Hex, M20 x 1.5 x 70mm, Cl 10.9

BOLT - hex flange, 20 - 1.5 x 70 mm, class 10.9, wheel mounting

1шт.

9

130871A2

SPACER

- wheel mounting bolt

1шт.

10

135780A2

DECAL

- single drive wheel bolt torque

2шт.

11

131443A1

BOLT,M20 x 1.5 x 210mm, Cl 8.8

BOLT - special, drive wheel starter, wheel mounting

2шт.

12

237825A1

RIM

WHEEL - drive, 68 x 50 inch, 32 x 16PR HF3 hi flotation tire

2шт.

13

184473C1

O-RING,7mm Thk x 757mm ID, 65 Duro

M29.8 ID x .30 Thk, Wheel ring sealing

2шт.

14

237824A1

BACK-UP RING

RING - side, wheel

2шт.

15

184472C1

RING

- wheel, locking

2шт.

16

1984006C2

VALVE STEM

VALVE - inflation

2шт.

17

238030A1

DECAL

- Warning, multi piece rims, see Figure 9H-38

2шт.

18

135171A1

SPACER

- wheel, 76 mm

2шт.

19

514-1224

BOLT,Hex, M20 x 1.5 x 125mm, Cl 10.9

- hex, 20 - 1.5 x 125 mm, class 10.9

20шт.

20

137339A2

WASHER,21mm ID x 33.5mm OD x 4mm Thk

- flat, special, 22 x 34 x 3.4 mm

20шт.
