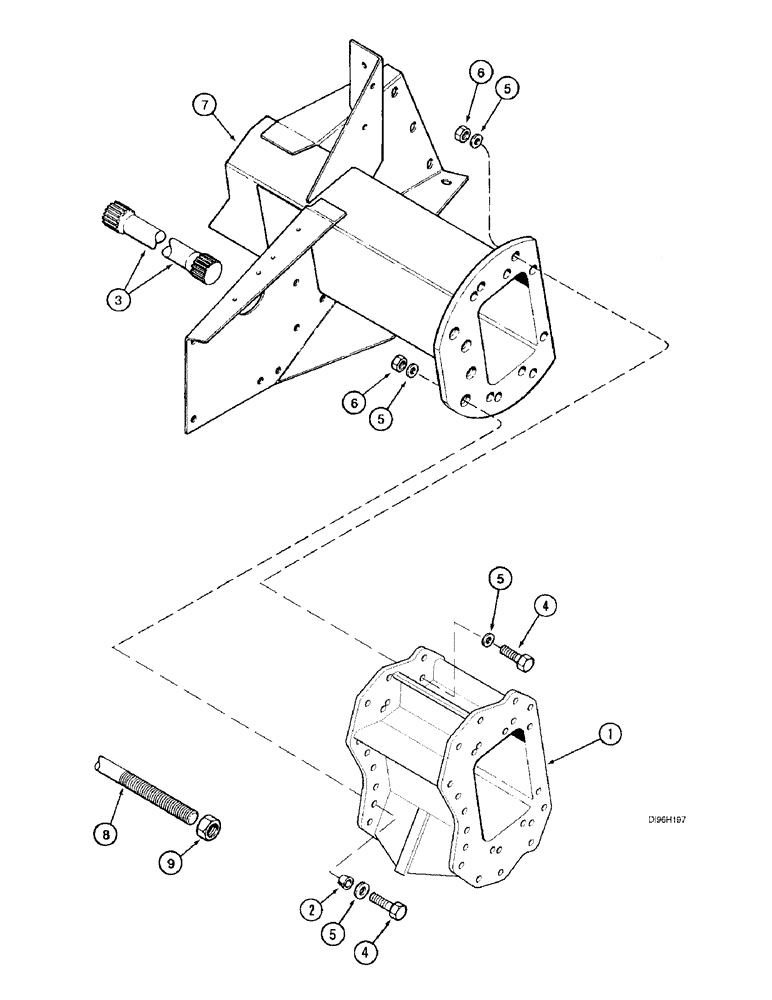

Запчасти Case IH 2188 (6-64) - AXLE EXTENSION, DUAL AND FLOTATION WHEELS (03) - POWER TRAIN

1

240851A1

EXTENSION

- drive axle, 12 inch (Replaces extension 184353C2)

2шт.

2

135314A1

BUSHING,20.1mm ID x 21.75mm OD x 12.7mm L

- tapered

1шт.

3

135977A1

SHAFT

- axle drive, 1046 mm, prior to combine P.I.N. JJC0193725

2шт.

3

242859A1

SHAFT

- axle drive, 1046 mm JJC0193725 to

1шт.

4

627-20060

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

- hex, full threads, 20 - 2.5 x 60 mm, class 10.9

1шт.

If the bolts are not long enough when installing the axle extension order p/n 827-20070 as required.

1шт.

5

137339A2

WASHER,21mm ID x 33.5mm OD x 4mm Thk

- flat, special, 22 x 34 x 3.4 mm

1шт.

6

832-41320

NUT,M20 x 2.5, Cl 10

NUT - hex, self-locking, 20 mm - 2.5, class 10.9

1шт.

7

REF

INSTRUCTION

AXLE - drive, see item 1, Figure 6-60 for correct axle

1шт.

8

184358C1

ROD

- reinforcement, extension

1шт.

9

232-41320

LOCK NUT,1 1/4"-7, GC

NUT, LOCK, 1 1/4"-7, GC

4шт.
