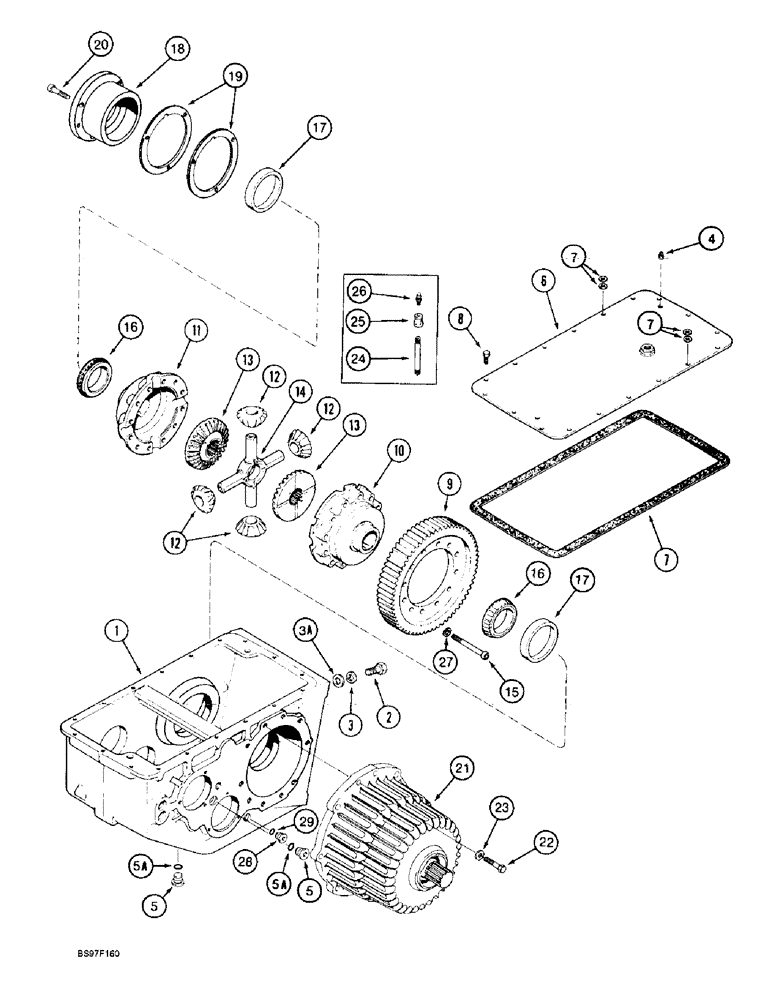

Запчасти Case IH 2188 (6-54) - TRANSMISSION, HOUSING AND DIFFERENTIAL, PRIOR TO COMBINE S/N JJC0193725 (03) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1997995C1
TRANSMISSION
TRANSMISSION ASSEMBLY - 34/38 change gears, rice, parts list Figures 6-54, 6-56 and 6-58, Includes: Ref. 1 - 29, Serial Range: -JJC0193725
1шт.
1997995C1R
REMAN-TRANSMISSION
Reman for New PN 1997995C1
1шт.
1997995C1C
CORE-TRANSMISSION
Return number
1шт.
84168421R
REMAN-TRANSMISSION
Reman for New PN 1997995C1
1шт.
84168421C
CORE-TRANSMISSION
Return Number
1шт.
1997996C1
TRANSMISSION
TRANSMISSION ASSEMBLY - 37/35 change gear, corn, grain, parts list Figures 6-54, 6-56, 6-58, Includes: Ref. 1 - 29, Serial Range: -JJC0193725
1шт.
1997996C1R
REMAN-TRANSMISSION
Reman For New P/N 1997996C1
1шт.
1997996C1C
CORE-TRANSMISSION
Return number
1шт.
1
1997955C1
HOUSING
HOUSING - transmission
1шт.
2
627-16050
BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd
BOLT, Hex, M16 x 50, 10.9
4шт.
3
892-16016
LOCK WASHER,M16, Hvy
WASHER - lock, 16 mm
4шт.
3a
896-11016
WASHER,17.5mm ID x 30mm OD x 4mm Thk
WASHER - flat, 17.5 x 30 x 4 mm, hardened
4шт.
4
217-433
PLUG,Hex Soc, 1/4" - 18 NPTF
PLUG - square, 1/4 inch PT
2шт.
5
9841223
PLUG,1-1/16" - 12 ORB
PLUG, , Incl. Ref. 5A Hex Soc, 1 1/16"-12 ORB
2шт.
5a
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
O-RING, 12-1, 90 Duro, .924 ID x .116" Thk
1шт.
6
1997577C2
COVER
COVER - transmission housing, use Loctite 596, see below
1шт.
Part of P/N 345-132 Sealant
1шт.
7
WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk
WASHER - flat, 13/32 x 13/16 x 3/32 inch, hardened
4шт.
8
613-10020
BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd
BOLT - hex, full threads, 10 - 1.5 x 20 mm
18шт.
9
1997997C1
PINION
GEAR - differential driven, 66 teeth
1шт.
1997406C1
HOUSING
HOUSING ASSEMBLY - differential, Includes: Ref. 10 and 11
1шт.
10
NSS
NOT SOLD SEPARAT
HOUSING - differential, right-hand
1шт.
P/N 1997406C2 is comprised of only the Refs. 10 and 11. The insides must be ordered separately.
1шт.
11
NSS
NOT SOLD SEPARAT
HOUSING - differential, left-hand
1шт.
13
404084R2
PINION
GEAR - bevel, 28 teeth
2шт.
15
963-16080
HEX SOC SCREW,M16 x 80mm, Cl 10.9
BOLT - hex socket, 16 - 2.0 x 80 mm, class 10.9, use Loctite 516, see below
12шт.
Part of P/N 345-181 Sealant
1шт.
Please always sub for this application part No. 230447A1 BOLT (Hex socket, 16-2.0 x 90, 10.9 loctite type patch)
1шт.
16
ST2096
BEARING ASSY,73.03mm ID x 25.4mm W
CONE - tapered roller bearing, differential
2шт.
18
1997956C1
BALL RACE
HOUSING - bearing
1шт.
19
1997957C1
SHIM
SHIM - bearing housing, 0.813 mm thick
1шт.
19
1997958C1
SHIM
SHIM - bearing housing, 0.127 mm thick
1шт.
19
1997947C1
SHIM
SHIM - bearing housing, 0.076 mm thick
1шт.
20
863-10025
HEX SOC SCREW,M10 x 25mm, Cl 12.9
SCREW, Hex Soc Hd, M10 x 25, 12.9
3шт.
21
1997983C1
BRAKE ASSY.
BRAKE ASSEMBLY - master, transmission, parts list Figure 7-6
2шт.
21
1997983C1R
REMAN-BRAKE ASSY.
Reman for New PN 1997983C1
2шт.
21
1997983C1C
CORE-BRAKE ASSY.
Return Number
2шт.
22
963-12040
HEX SOC SCREW,M12 x 40mm, Cl 10.9
BOLT - hex socket, 12 - 1.75 x 40 mm, class 10.9, use Loctite 516, see below
20шт.
Part of P/N 345-132 Sealant
1шт.
23
896-11012
WASHER,13.5mm ID x 24mm OD x 3mm Thk
WASHER, M13.5 x 24.5 x 3, HT
20шт.
24
221-1114
LUBE NIPPLE,1/8" NPT x 4 1/2"
NIPPLE, LUBE, , Straight 1/8" NPT x 4 1/2"
1шт.
25
144098
REDUCER
COUPLING - reducing, 1/4 to 1/8 PT
1шт.
26
219-434
BREATHER,1/8" - 27 NPT, Short, W/ Washer
VALVE - vent, includes felt washer, 1/8 PT x 1 inch
1шт.
27
892-11016
LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk
WASHER - lock, 16 mm
12шт.
Please always sub for this aplication part No. 896-12016 WASHER hardened, 16 mm
1шт.
29
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
O-RING, 10-1, 90 Duro, .755" ID x .097" Thk
1шт.
345-132
SEE PARTS MARKETING
SEALANT - Loctite 596, red, 1 ml tube
1шт.
345-181
SEALANT
SEALANT - Loctite 516, 1 ml tube
1шт.
