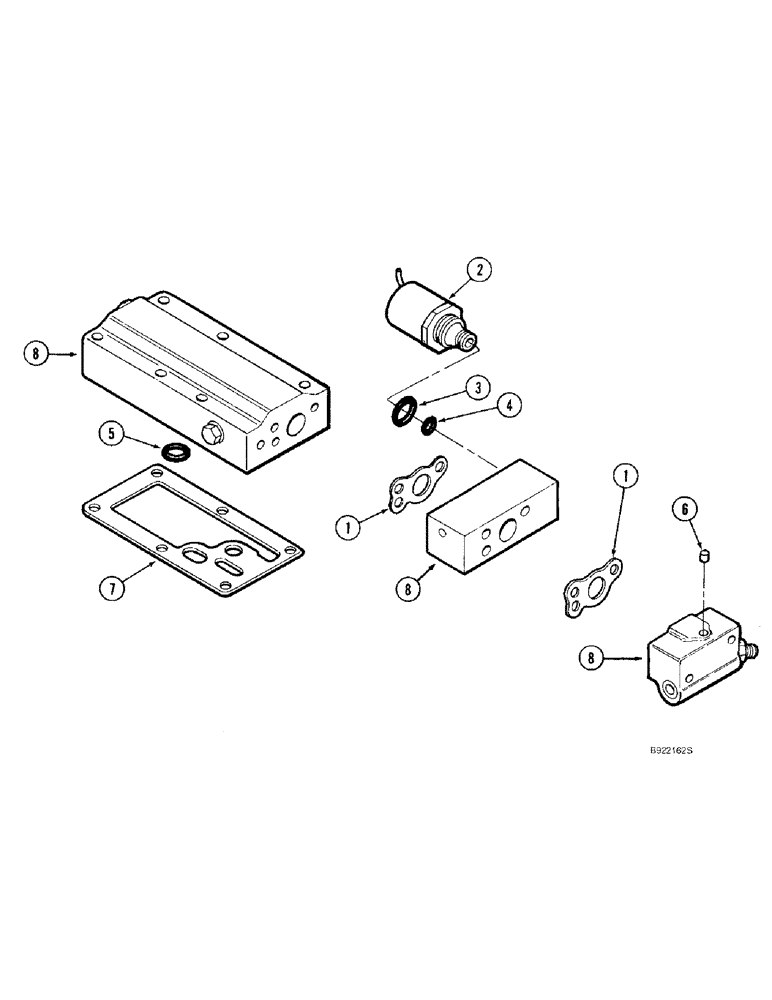

Запчасти Case IH 2188 (6-46) - HYDROSTATIC MOTOR ASSEMBLY, CONTROL VALVE, TWO SPEED, PRIOR TO COMBINE S/N JJC0193725 (03) - POWER TRAIN

192494A1

VALVE

ASSEMBLY - motor control, Includes: Ref. 1 - 8

1шт.

After S/N 19372725 THE VALVE ASSEMBLY IS 255825A1.

1шт.

1

1272954C1

GASKET,0.43mm Thk

- valve body

2шт.

Part of P/N 92649C1 Kit

1шт.

2

145338C2

SOLENOID

ASSEMBLY control valve, is replaced by 244387A1 in the higher S/N M96555-11. Parts in 145338C2 can be ordered seperately., Includes: Ref. 3 and 4

1шт.

Approximately Jan 97 production, the diode was incorporated into the solenoid assembly. Therefore diode part #226149A is not used on the later production. The late model solenoid is #244387A1. A guess of approximate pin break is JJC0194600.

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk

1шт.

5

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk, Orifice

1шт.

6

NSS

NOT SOLD SEPARAT

PLUG - valve body, removed when diagnostic coupler is installed, see Ref. 33 and 34 on Figure 6-44

1шт.

Part of P/N 92649C1 Kit

1шт.

7

145337C1

GASKET

- control valve

1шт.

8

NSS

NOT SOLD SEPARAT

BODY - valve, 3 piece, order valve assemlby 192494A1

1шт.

9

226149A1

DIODE

ASSEMBLY - motor, solenoid to lower harness, not included with valve assembly, not shown, see Figure 4-24, Ref. 19 and 20 for illustration, if used, Includes: Ref. 10

1шт.

In 1997 production the diode was incorporated into the solenoid assembly. Therefore diode P/N 226149A1 is not used on the later production. See NHE SB 014.1 98 for coil part numbers.

1шт.

10

113699A1

RECTIFIER

- locking, 2-5/8 inch long

1шт.

92649C1

KIT

- service, control valve body plug, includes Refs. 1 and 6 above

1шт.

255834A1

CARTRIDGE

valve

1шт.

298985A1

SOLENOID

2 speed

1шт.

298986A1

NUT

1/2 - 20NF - 1/4 thick

1шт.

1542831C1

SEAL KIT

KIT seals for Ref. 2, SOLENOID P/N 145338C2

1шт.
