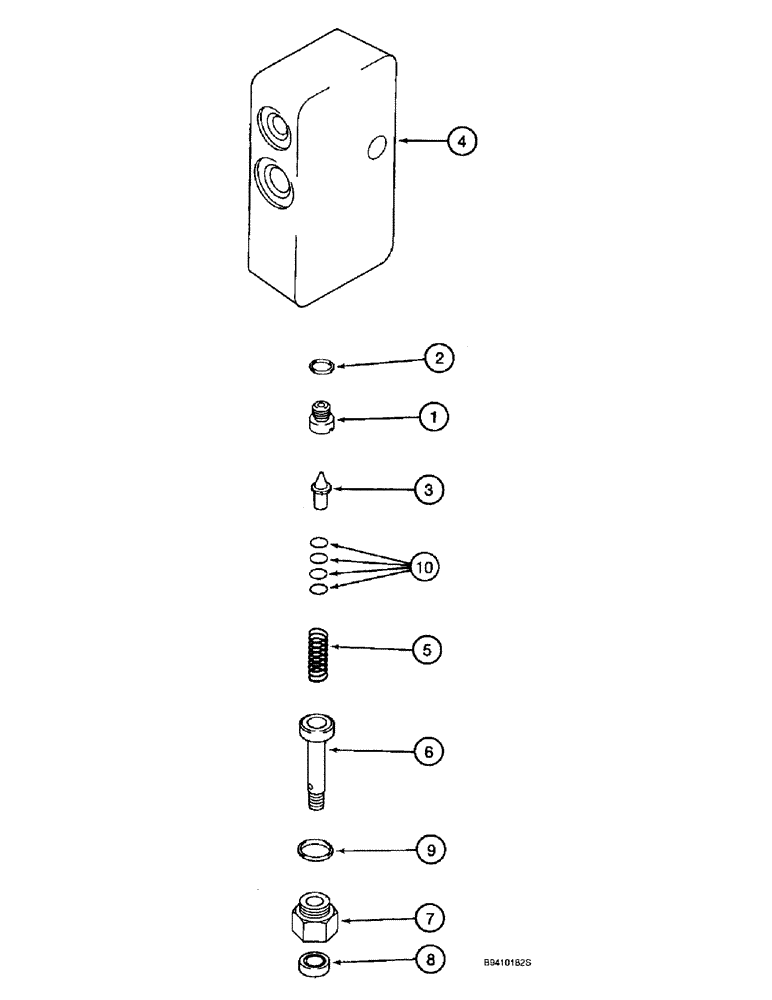

Запчасти Case IH 2166 (6-14) - FOOT-N-INCH VALVE (03) - POWER TRAIN

123973A2

VALVE

ASSEMBLY - Foot-N-Inch, 6000 psi housing stamped 60-73, used with corn and grain units, Includes; Ref. 1 - 10

1шт.

123974A2

VALVE

ASSEMBLY - Foot-N-Inch, 6500 psi housing stamped 65-74, used with rice units only, Includes: Ref. 1 - 10

1шт.

1

123595A1

SEAT, VALVE

SEAT - relief

1шт.

2

237-6002

O-RING,0.064" Thk x 0.239" ID, -902, Cl 6, 90 Duro

2-1, .239" ID x .064" Thk

1шт.

3

398710R1

VALVE POPPET

POPPET - valve

1шт.

4

NSS

NOT SOLD SEPARAT

HOUSING - valve, order valve assembly

1шт.

5

539751R2

SPRING

- poppet

1шт.

6

398708R1

STOP

ROD - poppet spring

1шт.

7

398707R1

GUIDE

RETAINER - oil seal

1шт.

8

398701R91

OIL SEAL,8.26mm ID x 19.15mm OD x 6.5mm Thk

- oil

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

530575R91

SHIM KIT

KIT - shim, poppet spring, Includes: Ref. 10

1шт.

10

NSS

NOT SOLD SEPARAT

SHIM - 0.005 inch, order kit 530575R91

4шт.

10

NSS

NOT SOLD SEPARAT

SHIM - 0.007 inch, order kit 530575R91

4шт.

10

NSS

NOT SOLD SEPARAT

SHIM - 0.020 inch, order kit 530575R91

2шт.

10

NSS

NOT SOLD SEPARAT

SHIM - 0.042 inch, order kit 530575R91

1шт.
