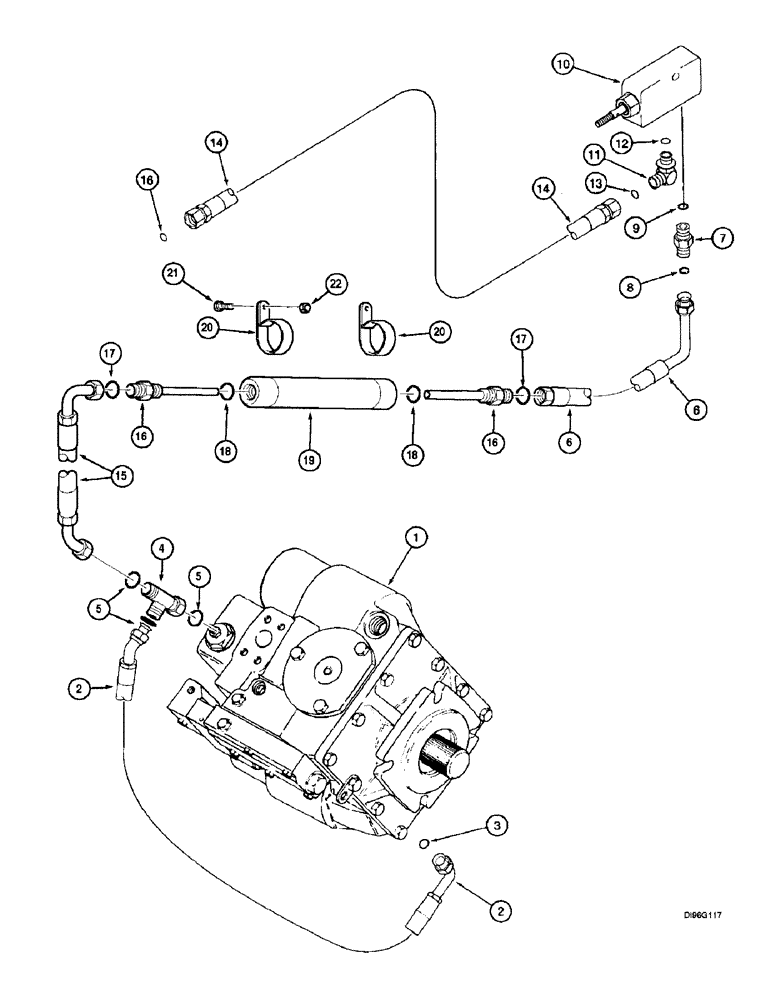

Запчасти Case IH 2166 (6-13A) - FOOT-N-INCH VALVE HYDRAULIC SYSTEM, COMBINE P.I.N. JJC0182025 & AFTER (03) - POWER TRAIN

1

REF

INSTRUCTION

MOTOR ASSEMBLY - hydrostatic, See parts list Figure 6-30or 6-36 for correct motor

1шт.

2

141127A2

HOSE

- at motor relief valve, 15-3/4 inch (400 mm) long

1шт.

3

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

4

201-421

TEE,9/16"-18 ORFS x 9/16"-18 Sw Run

- 9/16-18 inch face branch x face x swivel face, Includes: Ref. 5

1шт.

5

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

3шт.

6

141126A1

HOSE

- supply to foot-n-inch valve, 110-1/4 inch (2800 mm) long

1шт.

7

201-100

HYD CONNECTOR,9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

ADAPTER - straight, 9/16-18 face seal x 7/16-20 inch O-ring boss, Includes: Ref. 8 & 9

1шт.

8

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

9

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

10

REF

INSTRUCTION

VALVE ASSEMBLY - Foot-N-Inch, See parts list Figure 6-14 for correct valve

1шт.

11

201-332

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 9/16" - 18 Male ORB

- 90º, 13/16-16 face seal x 9/16-18 inch Adj O-ring boss, Incl Ref 12 & 13

1шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

13

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

14

141158A2

FLEXIBLE HOSE

HOSE - return, from Foot-N-Inch valve, 25-5/8 inch (651 mm) long

1шт.

15

244209A2

HOSE ASSY.,600 mm Length

HOSE - Foot-N-Inch supply to tube, 23-1/8 inch (585 mm) long

1шт.

16

243956A1

FITTING

CONNECTOR ASSEMBLY - attenuator, Includes: Ref. 17 & 18

2шт.

17

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

19

242967A1

TUBE,31.6 mm ID, 41.3 mm OD, 270 mm Length

- Foot-N-Inch supply

1шт.

20

515-23412

CLAMP,1 5/8", Insul, 3/8" Bolt

- P-type 1 5/8", Insul, 3/8" Bolt

2шт.

21

409-7612

BOLT,3/8"-16 x 1.09" OAL

2шт.

22

231-5146

FLANGE NUT,3/8"-16

2шт.
