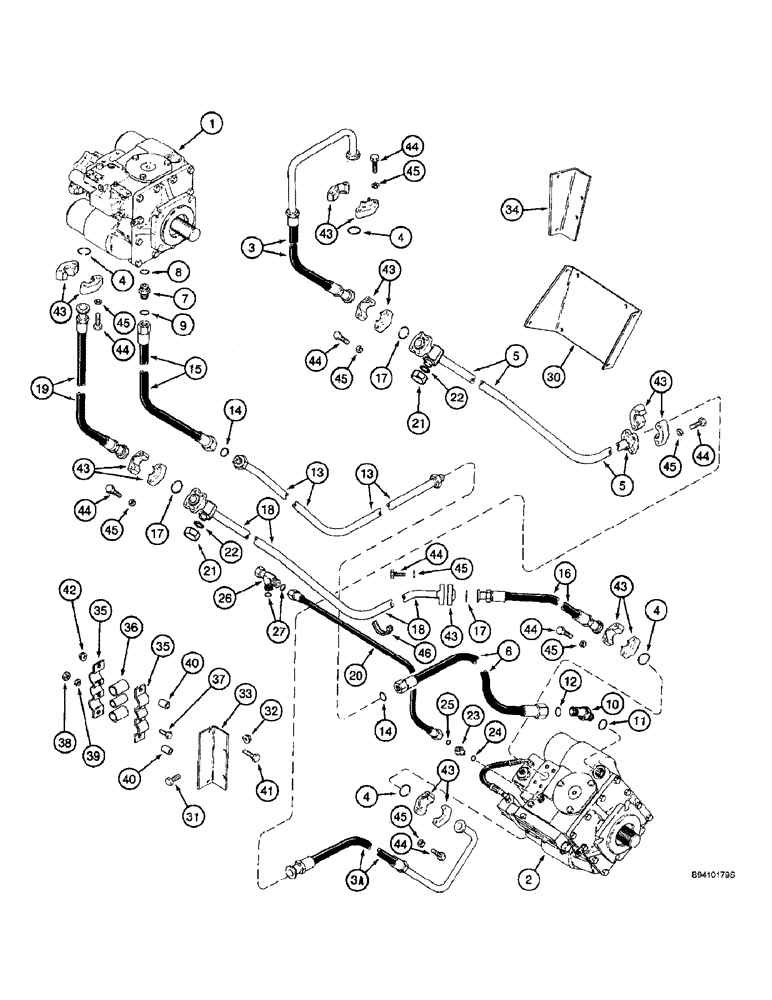

Запчасти Case IH 2166 (6-08) - HYDROSTATIC PUMP & MOTOR SYS, 2 SPEED MOTOR, PRIOR TO COMBINE P.I.N. JJC0182025 (03) - POWER TRAIN

1

1343716C4

PUMP, HYDROSTATIC

PUMP ASSEMBLY - hydrostatic, corn and grain, parts list Figures 6-19 - 6-27

1шт.

1

87659947

REMAN-HYDROSTAT PUMP

Corn And Grain

1шт.

1

400478A1C

CORE-HYDROSTAT PUMP

Return Part Number

1шт.

1

108113A2

PUMP, HYDROSTATIC

PUMP ASSEMBLY - hydrostatic, rice, parts list Figures 6-19 - 6-25 and 6-29

1шт.

1

87637529R

REMAN-HYDROSTAT PUMP

Rice

1шт.

1

87637529C

CORE-HYDROSTAT PUMP

Return Part Number

1шт.

2

127935A2

HYDROSTATIC MOTOR

MOTOR ASSEMBLY - hydrostatic, two speed, parts list Figures 6-37 - 6-45

1шт.

reference item 2, 127935a2 motor assy, HOSE PICTURED ON THE MOTOR IS 192384A1 hose assy. djo 2/18/98

1шт.

3

1979955C2

HOSE

- reverse pressure, upper, 33-7/8 inch (860 mm) long

1шт.

3a

128341A1

HOSE

- reverse pressure, lower, 38-7/16 inch (976 mm) long

1шт.

4

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

4шт.

5

1541757C2

HYD TUBE,1" OD, 2045.6, 225.2 mm Length

TUBE - reverse pressure, 1 inch OD

1шт.

6

128342A1

HOSE

- case drain, lower, 39-3/4 inch (1010 mm) long

1шт.

7

201-130

HYD CONNECTOR,1 7/16"-12 ORFS x 1 1/16"-12 ORB

Adapter - Straight, Incl Ref 8 & 9 1 7/16"-12 ORFS x 1 1/16"-12 ORB

2шт.

8

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

9

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

10

201-351

ELBOW,45 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

- 45 degree, 1-7/16-12 face seal x 1-1/16-12 inch adjustable O-ring, Includes: Ref. 11 & 12

1шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

12

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

13

1979932C1

HYD TUBE

TUBE - case drain

1шт.

14

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

15

1979936C1

HOSE

- case drain, upper, 16-1/2 inch (420 mm) long

1шт.

16

128340A1

HYDRAULIC HOSE,25.40 mm ID x 746.00 mm

- Forward lower pressure 25.40 mm ID x 746.00 mm

1шт.

17

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

4шт.

18

1541756C2

HYD TUBE

TUBE - forward pressure, 1 inch OD

1шт.

19

1347124C2

HOSE,25.4mm ID x 550mm L

- forward upper pressure, 21-5/8 inch (550 mm) long

1шт.

20

129188A1

HOSE,6.35mm ID x 1050mm L

- charge pressure, 46-1/16 inch (1170 mm) long

1шт.

21

201-907

CAP,1-3/16" - 12 ORFS

Includes Ref. 22 1 3/16"-12 ORFS

2шт.

22

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

23

201-100

HYD CONNECTOR,9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

ADAPTER - straight, 9/16-18 face seal x 7/16-20 inch O-ring boss, Includes: Ref. 24 & 25

1шт.

24

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

25

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

26

201-422

TEE,11/16"-16 ORFS x 11/16"-16 Fem Sw Run

- 11/16-16 inch face seal branch x face x swivel face, Includes: Ref. 27

1шт.

27

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

30

1979941C1

SUPPORT

- hydrostatic tube, rear

1шт.

31

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

6шт.

32

231-5146

FLANGE NUT,3/8"-16

6шт.

33

1347034C1

SUPPORT

BRACKET - tube support, rear

1шт.

34

1347033C1

SUPPORT

BRACKET - tube support, front

1шт.

35

1347156C1

SHIN

CLAMP - half, tube

6шт.

36

187935C1

STRIP

SLEEVE - pressure tube clamp

9шт.

37

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

6шт.

38

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

6шт.

39

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

40

645342C1

SPACER,10.34mm ID x 15.87mm OD x 25.4mm L

- 3/8 ID x 1 inch

6шт.

41

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

6шт.

42

231-5146

FLANGE NUT,3/8"-16

6шт.

43

S97224

CLAMP

- split flange, 1 inch

16шт.

44

413-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

32шт.

45

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

32шт.

46

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

3шт.
