(6-07A) - HYDROSTATIC PUMP & MOTOR SYS, SINGLE SPEED, COMBINE P.I.N. JJC0182025 & AFTER

Запчасти Case IH 2166 (6-07A) - HYDROSTATIC PUMP & MOTOR SYS, SINGLE SPEED, COMBINE P.I.N. JJC0182025 & AFTER (03) - POWER TRAIN

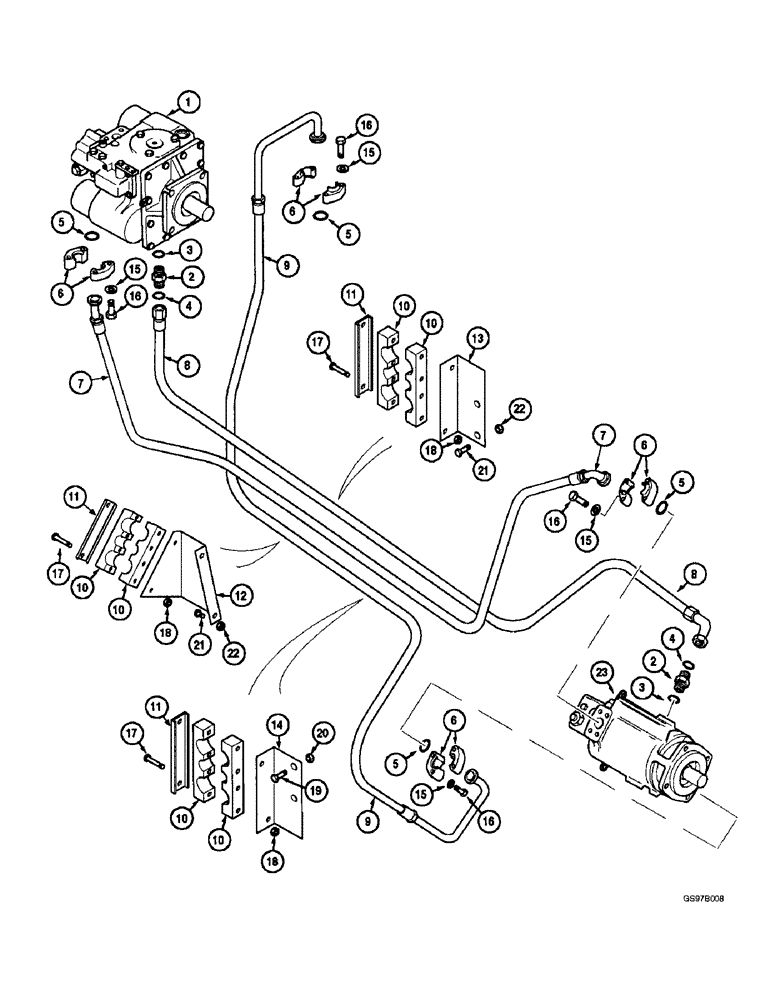

Схема запчастей Case IH 2166 - (6-07A) - HYDROSTATIC PUMP & MOTOR SYS, SINGLE SPEED, COMBINE P.I.N. JJC0182025 & AFTER (03) - POWER TRAIN
6
2
16
15
5
1
15
8
11
5
10
17
8
7
18
23
12
6
3
11
16
21
19
22
9
10
14
10
18
20
2
17
21
9
11
13
15
6
5
22
6
16
3
7
5
4
4
10
10
10
16
15
17
18
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1343716C4

PUMP, HYDROSTATIC

PUMP ASSEMBLY - hydrostatic, parts list Figures 6-19 - 6-25

1шт.

1

87659947

REMAN-HYDROSTAT PUMP

Remanufactured HYDROSTATIC PUMP

1шт.

1

400478A1C

CORE-HYDROSTAT PUMP

Return Part Number, HYDROSTATIC PUMP

1шт.

2

201-130

HYD CONNECTOR,1 7/16"-12 ORFS x 1 1/16"-12 ORB

Adapter - Straight, Incl Ref 3 & 4 1 7/16"-12 ORFS x 1 1/16"-12 ORB

2шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

4

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

5

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

4шт.

6

S97224

CLAMP

- split flange, 1 inch

8шт.

7

227640A1

HOSE,25.4mm ID x 3455mm L

- 136 inch (3455 mm) long

1шт.

8

227639A2

HOSE,25.4mm ID x 3855mm L

- 145-7/8 inch (3705 mm) long

1шт.

9

227641A2

HOSE

- reverse, pump to motor, 159-5/8 inch (4055 mm) long

1шт.

10

221145A1

CLAMP

- two piece, hose

3шт.

11

224303A1

GUIDE

CHANNEL - clamp back-up, 1-5/16 ID x 1/8 inch wide

3шт.

12

1979941C1

SUPPORT

- hydrostatic tube, rear

1шт.

13

224302A1

SUPPORT

- hose clamp, middle

1шт.

14

224301A1

SUPPORT

- hose clamp, front

1шт.

15

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

16шт.

16

413-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

16шт.

17

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

6шт.

18

231-4146

NUT,3/8"-16, GB

NUT, LOCK, 3/8"-16, GB

6шт.

19

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

2шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

21

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

4шт.

22

231-5146

FLANGE NUT,3/8"-16

4шт.

23

183296A2

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - hydrostatic, parts list Figures 6-31, 6-33, and 6-35B

1шт.

23

183296A2R

REMAN-HYD MOTOR

2166 CASE IH AXIAL-FLOW COMBINE (NA), PUMP ASSEMBLY - hydrostatic (1/95-12/97)

1шт.

23

183296A2C

CORE-MOTOR HYDRAULIC

Return Part Number

1шт.

24

515-23333

CLAMP,1 5/16", Insul, 3/8" Bolt

P-type, Used to Separate Reverse Hydrostatic and Case Drain Hoses, (Not Shown) 1 5/16", Insul, 3/8" Bolt

1шт.

25

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

P-type, Used to separate reverse hydrostatic and case drain hoses, Not shown 1 1/2", Insul, 3/8" Bolt

1шт.
