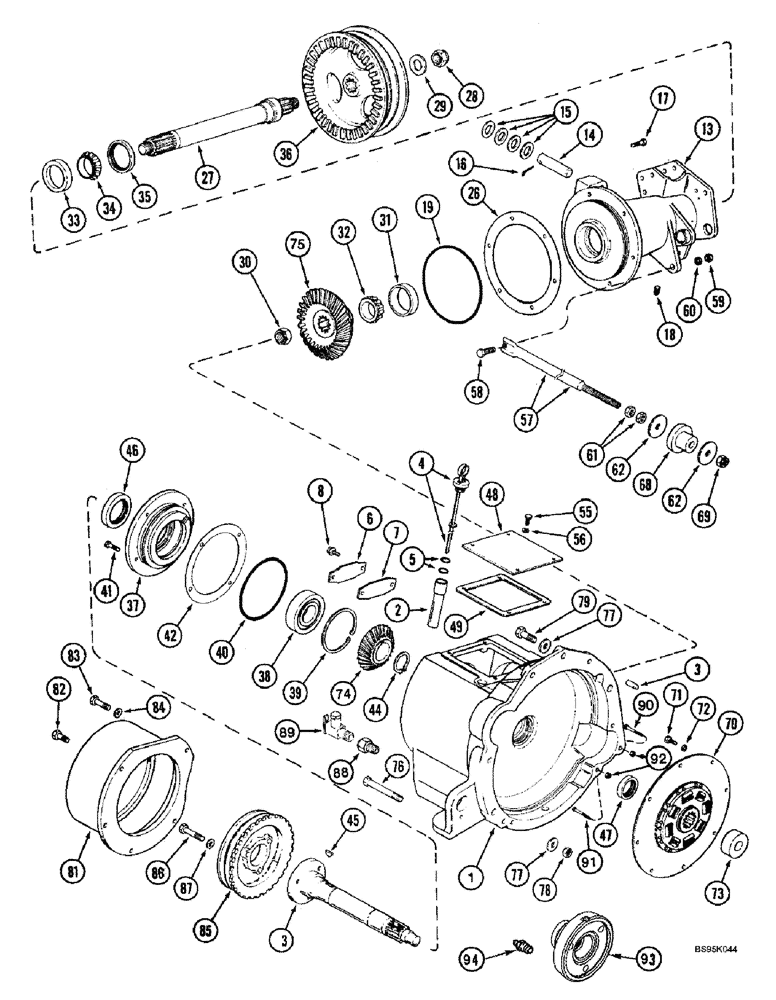

Запчасти Case IH 2166 (6-02) - POWER TAKEOFF DRIVE (03) - POWER TRAIN

1

184433C4

HOUSING

ASSEMBLY - power takeoff drive, Includes: Ref. 2 & 3

1шт.

2

188072C1

TUBE,25.4 mm OD, 127 mm Length

- dipstick, oil

1шт.

3

1330136C1

DOWEL

PIN - dowel, locating

2шт.

4

186019C91

DIPSTICK

ASSEMBLY - PTO housing oil, Includes: Ref. 5

1шт.

5

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

2шт.

6

185056C1

COVER

- bolt access hole

1шт.

7

185057C2

GASKET,0.91mm Thk

- access cover

1шт.

8

1327763C1

SCREW,Hex Wshr Hd, 3/8" - 16 x 3/4"

- hex washer head, 3/8 NC x 3/4 inch

2шт.

13

1329747C1

HOUSING

ASSEMBLY- separator drive, Includes: Ref. 14

1шт.

14

195439C2

PIN,25.29mm OD x 101.6mm L

- clutch housing

1шт.

15

495-81073

WASHER,1-1/32" x 1-3/4" x .060" Thk

- flat, 1-1/32 x 1-3/4 x 1/16 inch

4шт.

16

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

1шт.

17

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

6шт.

18

50057K

PLUG

- separator housing

1шт.

19

188279C1

O-RING,0.139" Thk x 7.984" ID, -266, Cl 6, 90 Duro

- 8 ID x 1/8 inch wide, separator housing

1шт.

188195C1

SHIM KIT

KIT - shim, separator drive housing, Includes: Ref. 26

1шт.

26

NSS

NOT SOLD SEPARAT

SHIM - 0.005 inch, separator housing

1шт.

26

NSS

NOT SOLD SEPARAT

SHIM - 0.007 inch, separator housing

1шт.

26

NSS

NOT SOLD SEPARAT

SHIM - 0.010 inch, separator housing

1шт.

26

NSS

NOT SOLD SEPARAT

SHIM - 0.030 inch, separator housing

1шт.

27

1329745C1

SHAFT

- pulley, separator drive

1шт.

28

18521R1

LOCK NUT,1"-14, G8

NUT - hex, self-locking, 1 inch NF

1шт.

29

396-31106

WASHER,1.06" ID x 2" OD x 0.22" Thk

- flat, 1-1/16 x 2 x 7/32 inch, hardened

2шт.

30

194737C1

LOCK NUT

- hex, special, 1 inch NF

1шт.

31

130503H

BEARING CUP

CUP - tapered roller bearing, 3-17/64 inch OD, separator housing rear

1шт.

32

300426R91

BEARING ASSY,45.618 mm ID x 25.4 mm

BEARING - tapered roller, 1-25/32 inch ID, separator housing rear

1шт.

33

376463C1

BEARING CUP

CUP - tapered roller bearing, 3-15/64 inch OD, separator housing front

1шт.

34

533729R91

ROLLER BEARING,1.968" ID x 3.2283" OD x 0.8465"

- tapered roller, 2 inch ID, separator housing front

1шт.

35

194051C1

SEAL,63.42mm ID x 82.8mm OD x 11mm Thk

- oil, separator housing

1шт.

36

191461C1

PULLEY,110mm OD

- drive, 11 inch OD

1шт.

37

192817C2

FLANGE,92.02 mm ID x 241.249 mm OD x 54.61 mm

HUB - drive shaft bearing housing

1шт.

38

1541765C1

BEARING, BALL,55 mm ID x 120 mm OD x 29 mm

BEARING - ball, 4-23/32 inch OD, drive shaft, standard

1шт.

38

1541766C1

BEARING, BALL,55 mm ID x 120 mm OD x 29 mm

BEARING - ball, 4-23/32 inch OD, drive shaft, optional

1шт.

39

100-22475

SNAP RING,4.78", Int, #475

Ring, Snap, 4.78", Int, #475

1шт.

40

238-8260

O-RING,0.139" Thk x 6.48" ID, -260, Cl 8, 90 Duro

1шт.

41

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

4шт.

188196C1

SHIM KIT

KIT - shim, PTO drive shaft housing, Includes: Ref. 42

1шт.

42

NSS

NOT SOLD SEPARAT

SHIM - bearing hub, 0.030 inch

1шт.

42

NSS

NOT SOLD SEPARAT

SHIM - bearing hub, 0.010 inch

1шт.

42

NSS

NOT SOLD SEPARAT

SHIM - bearing hub, 0.007 inch

1шт.

42

NSS

NOT SOLD SEPARAT

SHIM - bearing hub, 0.005 inch

1шт.

43

192816C2

SHAFT

- drive, PTO

1шт.

44

100-12200

SNAP RING,#200, Ext

Ring, Snap, #200, Ext

1шт.

45

126-176

WOODRUFF KEY,#128, 5/16" x 2-1/8", HT

5/16" x 2 1/8", HT, Drive shaft

1шт.

46

173133C91

OIL SEAL,64.26mm ID x 92.15mm OD x 11mm Thk

- 3-5/8 inch OD, pump housing end

1шт.

47

173559C92

SEAL,45.59mm ID x 66.73mm OD x 11mm Thk

- shaft, 2-5/8 inch OD, drive plate end

1шт.

48

192275C1

COVER

- housing

1шт.

49

191830C2

GASKET

- PTO cover

1шт.

55

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

56

492-11038

LOCK WASHER,3/8"

4шт.

57

1315648C1

ROD

- snubber

1шт.

58

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

59

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

60

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

61

425-1510

JAM NUT,Jam, 5/8"-18, G5

- hex, jam, 5/8 inch NF

2шт.

62

107813R1

WASHER

- flat, 21/32 x 2-1/2 x 11/64 inch

2шт.

68

194915C2

ISOLATOR,13.72mm ID x 45.97mm OD x 50.04mm L

INSULATOR - engine snubber

1шт.

69

232-46110

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

70

184429C2

CLUTCH DISC,352.4mm OD

PLATE - PTO drive

1шт.

184429C2R

REMAN-CLUTCH DISC

2166 (1/95-12/97)

1шт.

184429C2C

CORE-CLUTCH DISC

Return Number

1шт.

71

326-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

8шт.

72

392-21038

LOCK WASHER,3/8"

3/8"

8шт.

73

1324896C2

BUSHING,29.99mm ID x 71.98mm OD x 27mm L

- flywheel, power takeoff

1шт.

184494C1

GEAR-SET

KIT - gear, separator drive, 41 and 31 teeth, matched set, Includes: Ref. 74 & 75

1шт.

74

NSS

NOT SOLD SEPARAT

GEAR - drive shaft, 31 teeth

1шт.

75

NSS

NOT SOLD SEPARAT

GEAR - separator drive shaft, 41 teeth

1шт.

76

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

4шт.

77

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 7/64 inch

6шт.

78

425-1010

NUT,5/8"-11, G5

4шт.

79

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch

2шт.

81

1303141C2

HOUSING

- hydrostatic pump

1шт.

82

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

3шт.

83

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

84

283856C1

WASHER

- flat, 17/32 x 1 x 3/16 inch

2шт.

85

1330488C1

PULLEY

- drive, auxiliary pump, 8.85 inch OD

1шт.

86

426-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 8

- hex, 1/2 NC x 2-1/2 inch, grade 8

3шт.

87

496-11053

WASHER,17/32" x 1 1/16" x .095", HDN

3шт.

88

217-44

REDUCER,1/2" - 14 NPT x 3/8" - 18 NPT

1шт.

89

301803R1

SHUT-OFF VALVE

VALVE - shutoff, PTO drain

1шт.

90

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

1шт.

91

413-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

- hex, 3/8 NC x 3-3/4 inch

1шт.

93

196482C3

HUB

Hub, Drive Pulley

1шт.

94

425-106

NUT,3/8"-16, Cl 5

2шт.
