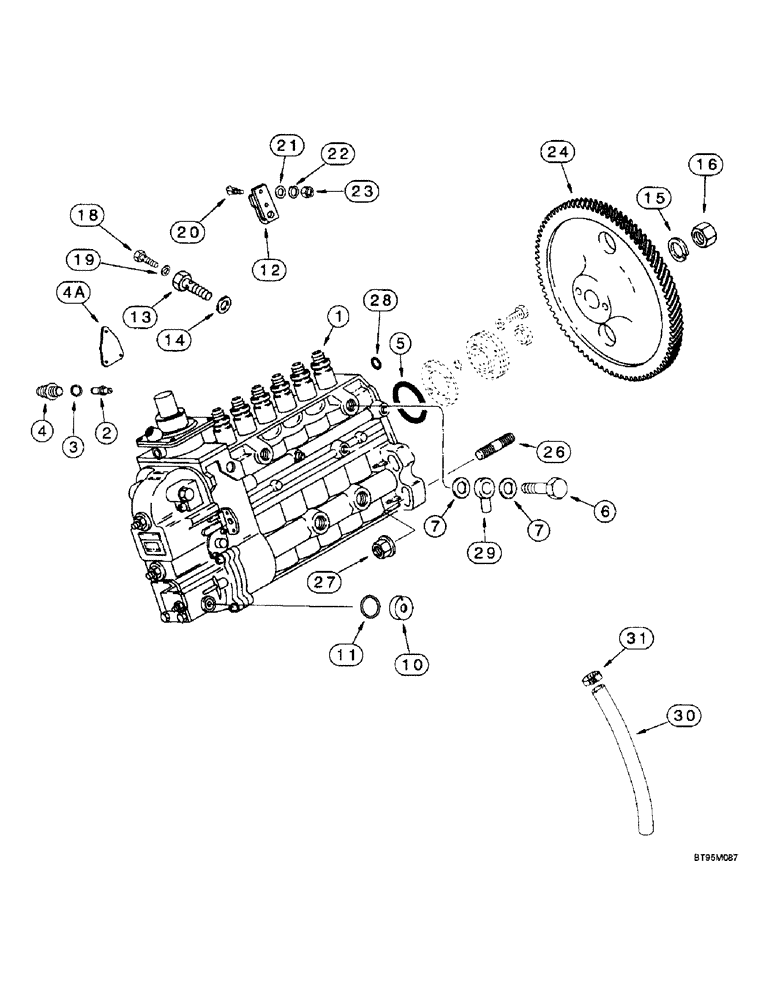

Запчасти Case IH 2166 (3-07A) - FUEL INJECTION PUMP AND DRIVE, 6TA-830 EMISSIONS CERTIFIED ENGINE, COMBINE P.I.N. JJC0180000 & AFTER (02) - FUEL SYSTEM

1

J930454

PUMP, FUEL INJECTION

PUMP, INJECTION PUMP ASSEMBLY - fuel injection, with aneroid, Includes: Ref. 2 - 23

1шт.

1

JR930454

REMAN-INJECTION PUMP

PUMP ASSEMBLY - fuel injection, remanufactured component parts shown on this Figure do not apply to the remanufactured assembly, Includes: Ref. 2 - 23

1шт.

1

JC930454

CORE-INJECTION PUMP

Return Number

1шт.

1

JC923235

CORE-INJECTION PUMP

RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly, no longer used

1шт.

2

A77720

PIN

PIN - timing

1шт.

3

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

SEALING WASHER, , Plug M18 x 24 x 1.5

1шт.

4

J912888

PLUG

PLUG - timing

1шт.

4a

A71110

GASKET

GASKET - mounting

1шт.

5

A41856

O-RING,3mm Thk x 75mm ID

O-RING - sealing

1шт.

6

J912886

VALVE

VALVE - overflow

1шт.

7

933697R1

SEALING RING,M10 x 13.5 x 1

WASHER - valve sealing

1шт.

8

J929322

LEVER

LEVER - pump shutoff, not shown

1шт.

9

J930683

LOCK NUT

NUT - hex, 5 mm - 0.8, not shown (Replaces nut J930291)

1шт.

10

691292C1

RETAINER

HOUSING - spring return

1шт.

11

680187C1

O-RING,2.5mm Thk x 9mm ID

O-RING - sealing, special

1шт.

12

1808728C1

LEVER

LEVER - throttle control

1шт.

13

J913320

SCREW

SCREW - vent

1шт.

14

691273C1

GASKET,14.2mm ID x 19.9mm OD x 1.5mm Thk

GASKET - vent screw

1шт.

15

J912897

LOCK WASHER

WASHER - lock

1шт.

16

J912896

LOCK NUT

NUT - hex, self-locking, special

1шт.

18

B41211

SCREW

SCREW - vent

1шт.

19

933696R1

SEALING RING,M6 x 10 x 1

RING - 6 x 10 mm, vent screw

1шт.

20

1808822C1

THUMB SCREW,M6 x 26mm

BOLT - throttle lever

1шт.

21

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

WASHER, M6

1шт.

22

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

23

829-1306

NUT,M6, Cl 10

NUT - hex, 6 mm - 1.0, class 10

1шт.

24

J931379

GEAR

GEAR - fuel pump (Replaces gear J912615)

1шт.

26

J915036

STUD

STUD - pump mounting, 55 mm (2-5/32 in)

4шт.

27

J902662

FLANGE NUT

NUT - hex flange, 10 mm

4шт.

28

J916284

O-RING

O-RING - sealing, fuel injection pump

1шт.

29

J911447

CONNECTOR, ELEC

CONNECTOR CONNECTOR - banjo, fuel return

1шт.

30

J918176

HOSE,7.90 mm ID x 330.00 mm

1шт.

31

A171099

HOSE CLAMP,13.2mm - 15.4mm

CLAMP - spring-type, adjustable

1шт.
