(3-05A) - FUEL FILTER AND TRANSFER PUMP, 6TA-830 EMISSIONS CERTIFIED ENGINE, COMBINE P.I.N. JJC0180000 & AFTER

Запчасти Case IH 2166 (3-05A) - FUEL FILTER AND TRANSFER PUMP, 6TA-830 EMISSIONS CERTIFIED ENGINE, COMBINE P.I.N. JJC0180000 & AFTER (02) - FUEL SYSTEM

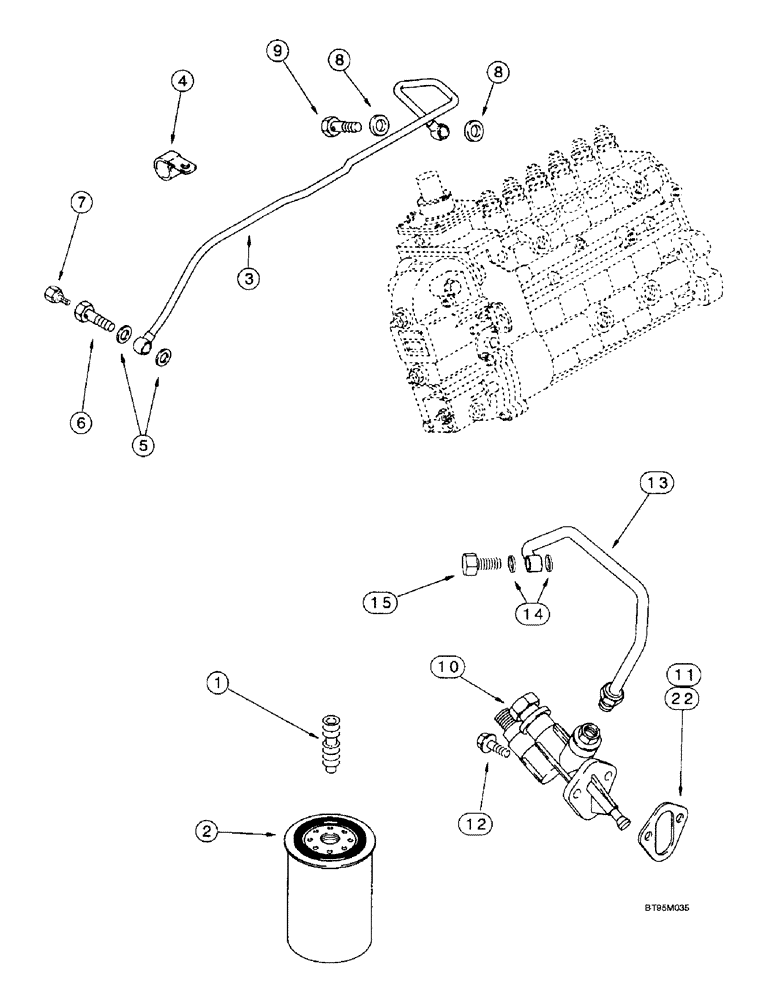

Схема запчастей Case IH 2166 - (3-05A) - FUEL FILTER AND TRANSFER PUMP, 6TA-830 EMISSIONS CERTIFIED ENGINE, COMBINE P.I.N. JJC0180000 & AFTER (02) - FUEL SYSTEM
1
10
5
8
6
15
9
3
7
8
4
13
14
12
11
2
22
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J925955

ADAPTER,M16 x 1.5 x M16 x 1.5

- fuel filter

1шт.

2

J903640

FILTER, FUEL

FILTER - fuel

1шт.

3

J918873

FUEL TUBE,8 mm OD x 531.9, 92.9 mm L

TUBE - supply, fuel

1шт.

4

J914711

CLIP

CLAMP - P-type

1шт.

5

J918191

PACKING RING

WASHER - sealing, special, 12 x 18 x 1 mm

2шт.

J905860

BANJO BOLT

BOLT ASSEMBLY -banjo hex, special, Includes: Ref. 6 & 7

1шт.

6

J911446

BANJO BOLT,M12 x 1.5 x 24mm

BOLT, BANJO, M12 x 1.5 x 24

1шт.

7

J905403

CAPTIVE WASHER SCREW,Hex, M6 x 1 x 10mm, Cl 8.8

SCREW - hex, special, vent, order bolt assembly

1шт.

8

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

WASHER - sealing, special, 14 x 20 x 1 mm

2шт.

9

J924725

BANJO BOLT,M14 x 1.5 x 26mm

BOLT - banjo connector

1шт.

10

J925709

PUMP

- fuel transfer, see J926764 repair kit below, no longer available, order J930566 pump

1шт.

item#10 & 10a per T.R. of tech, please refer to service bulletinnensb00797. j933252 is for Family11 emission engines except cotton pickers and combines. Cotton pickers and combines with emission engines all us j933253.

1шт.

10a

J930566

FEED PUMP

PUMP - fuel lift and transfer, not shown

1шт.

item#10 & 10a per T.R. of tech, please refer to service bulletinnensb00797. j933252 is for Family11 emission engines except cotton pickers and combines. Cotton pickers and combines with emission engines all us j933253.

1шт.

11

J923054

GASKET

- mounting, fuel transfer pump

1шт.

12

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- heavy hex flange, 8-1.25 x 20 mm

2шт.

13

J918539

FUEL TUBE,8 mm OD x 320.7 mm L

TUBE - supply, fuel pump to fuel filter

1шт.

14

J918191

PACKING RING

WASHER - sealing, special, 12 x 18 x 1 mm

2шт.

15

J916361

BANJO BOLT

BOLT - banjo connector, 12 - 1.5 x 24 mm

1шт.

J926764

GASKET KIT

KIT - transfer pump repair, used with J925709 pump only, not shown, Includes: Ref. 16 - 22

1шт.

16

NSS

NOT SOLD SEPARAT

VALVE - check, not shown

2шт.

17

NSS

NOT SOLD SEPARAT

GASKET - check valve, not shown

2шт.

18

NSS

NOT SOLD SEPARAT

SEAL - O-ring, not shown

1шт.

19

NSS

NOT SOLD SEPARAT

SEAL - O-ring, not shown

2шт.

20

NSS

NOT SOLD SEPARAT

SEAL - O-ring, not shown

1шт.

21

NSS

NOT SOLD SEPARAT

VALVE - check, not shown

1шт.

22

J923054

GASKET

- mounting, fuel transfer pump

2шт.
