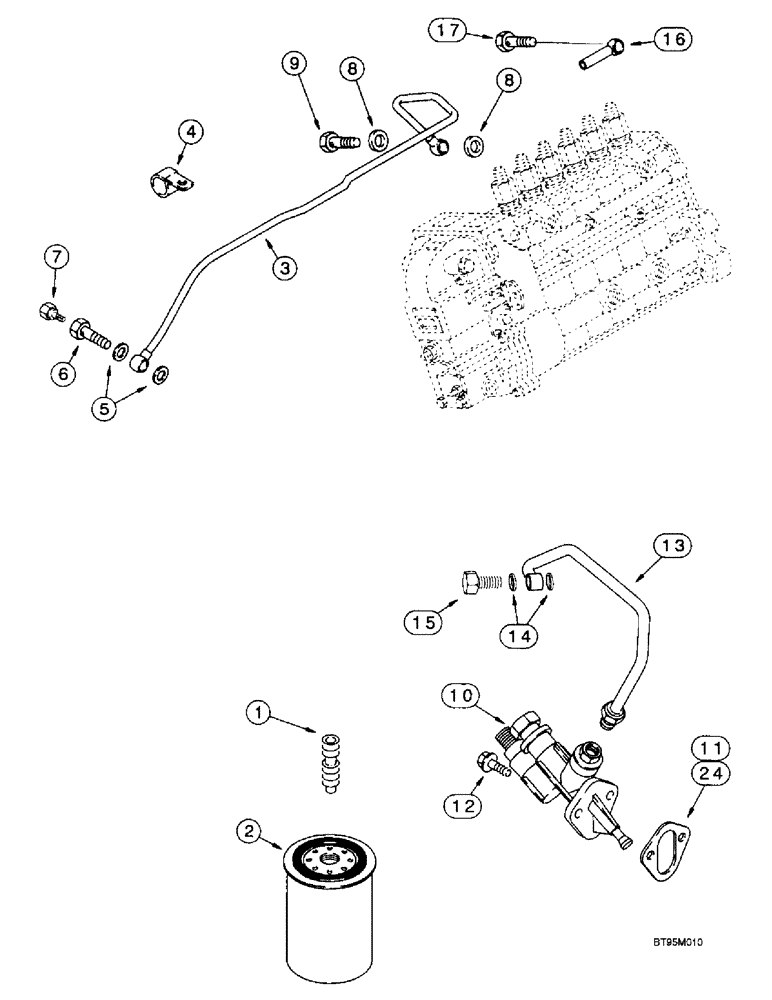

Запчасти Case IH 2166 (3-04) - FUEL FILTER AND TRANSFER PUMP, 6T-830 ENGINE, PRIOR TO COMBINE P.I.N. JJC0180000 (02) - FUEL SYSTEM

1

J925955

ADAPTER,M16 x 1.5 x M16 x 1.5

- fuel filter (Replaces adapter J903845)

1шт.

2

J903640

FILTER, FUEL

FILTER - fuel

1шт.

3

J912923

FUEL TUBE,8 mm OD x 509.8 mm L

TUBE - fuel supply

1шт.

4

J914711

CLIP

CLAMP - P-type

1шт.

5

J918191

PACKING RING

WASHER - sealing, special, 12 x 18 x 1 mm

2шт.

J905860

BANJO BOLT

BOLT ASSEMBLY - banjo hex, special, Includes: Ref. 6 & 7

1шт.

6

NSS

NOT SOLD SEPARAT

BOLT - connector, banjo hex, special

1шт.

7

NSS

NOT SOLD SEPARAT

SCREW - hex, special, vent

1шт.

8

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

WASHER - sealing, special, 14 x 20 x 1 mm

2шт.

9

J907541

BANJO BOLT

BOLT - banjo connector

1шт.

10

J917998

PUMP

- fuel lift and transfer, see J926764 repair kit below, no longer available, order J930201 pump

1шт.

Ref #10 and #10A- All 2166 combines-emissions and pre-emissions, order p/n J933252

1шт.

10a

J930201

FEED PUMP

PUMP - fuel lift and transfer, not shown

1шт.

Ref #10 and #10A- All 2166 combines-emissions and pre-emissions, order p/n J933252

1шт.

11

J923054

GASKET

- mounting, fuel transfer pump (Replaces gasket J914304)

1шт.

12

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- heavy hex flange, 8-1.25 x 20 mm

2шт.

13

J906790

FUEL TUBE,8 mm OD x 306.3 mm L

TUBE - supply

1шт.

14

J918191

PACKING RING

WASHER - sealing, special, 12 x 18 x 1 mm

2шт.

15

J916361

BANJO BOLT

BOLT - banjo connector, 12 - 1.5 x 24 mm

1шт.

16

J911447

CONNECTOR, ELEC

CONNECTOR - banjo, fuel return

1шт.

17

J912886

VALVE

- overflow, See Figure 3-06, Ref. 6

1шт.

J926764

GASKET KIT

KIT - transfer pump repair, used with J917998 pump only, not shown, Includes: Ref. 18 - 24

1шт.

18

NSS

NOT SOLD SEPARAT

VALVE - check, not shown

2шт.

19

NSS

NOT SOLD SEPARAT

GASKET - check valve, not shown

2шт.

20

NSS

NOT SOLD SEPARAT

SEAL - O-ring, not shown

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL - O-ring, not shown

2шт.

22

NSS

NOT SOLD SEPARAT

SEAL - O-ring, not shown

1шт.

23

NSS

NOT SOLD SEPARAT

VALVE - check, not shown

1шт.

24

J923054

GASKET

- mounting, fuel transfer pump (Replaces gasket J914304)

2шт.
