(2-54) - ENGINE RAILS AND SUPPORTS

Запчасти Case IH 2166 (2-54) - ENGINE RAILS AND SUPPORTS (01) - ENGINE

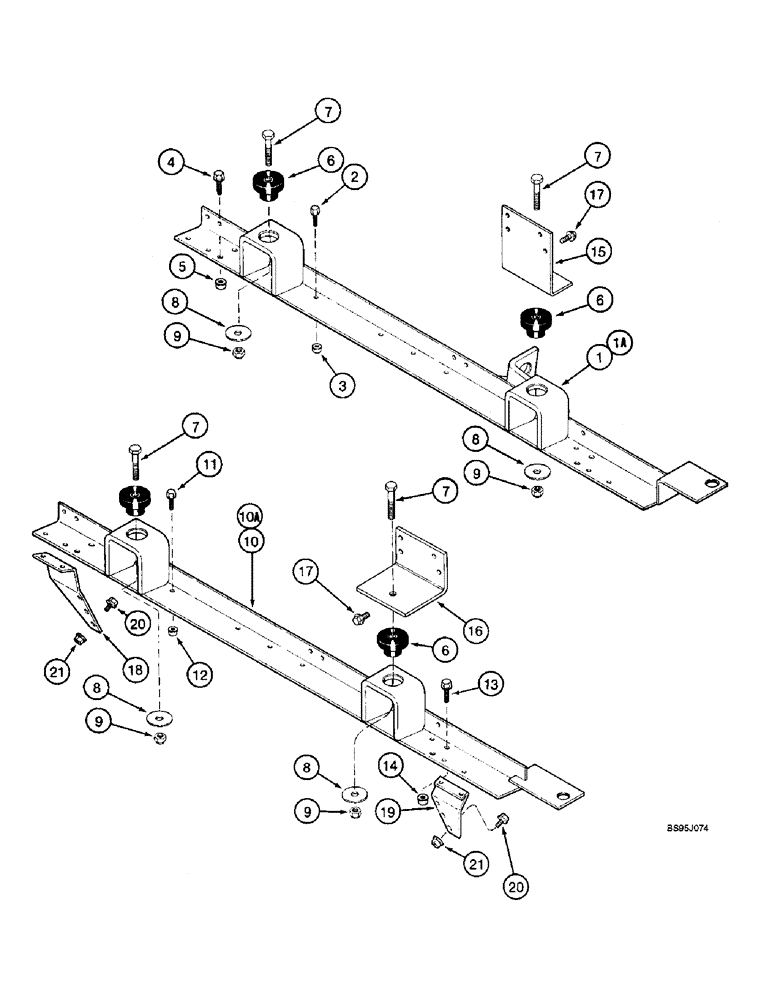

Схема запчастей Case IH 2166 - (2-54) - ENGINE RAILS AND SUPPORTS (01) - ENGINE
1a
13
17
21
10
20
14
9
8
11
18
3
2
8
7
21
16
8
9
7
4
19
20
8
9
17
9
10a
5
6
7
7
12
6
1
6
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1315653C4

RAIL ASSY.

SUPPORT - engine rail, left-hand, prior to combine P.I.N. JJC0180000

1шт.

1a

195113A1

RAIL

SUPPORT - engine rail, left-hand, combine P.I.N. JJC0180000 and after

1шт.

2

409-7612

BOLT,3/8"-16 x 1.09" OAL

6шт.

3

231-5146

FLANGE NUT,3/8"-16

4шт.

4

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

4шт.

5

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

6

194915C2

ISOLATOR,13.72mm ID x 45.97mm OD x 50.04mm L

INSULATOR - engine snubber, front and rear

4шт.

7

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

4шт.

8

107813R1

WASHER

- flat, 21/32 x 2-1/2 x 11/64 inch

4шт.

9

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

4шт.

10

1315654C4

RAIL ASSY.

SUPPORT - engine rail, right-hand, prior to combine P.I.N. JJC0180000

1шт.

10a

195116A2

RAIL

SUPPORT - engine rail, right-hand, combine P.I.N. JJC0180000 and after

1шт.

11

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

6шт.

12

231-5146

FLANGE NUT,3/8"-16

6шт.

13

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

4шт.

14

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

15

1315644C1

SUPPORT

- engine, left-hand front

1шт.

16

1315645C1

SUPPORT

- engine, right-hand front

1шт.

17

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 25 mm, class 10.9

8шт.

18

1330098C2

SUPPORT

- engine, right-hand rear

1шт.

19

1330099C2

SUPPORT

- engine, right-hand front

1шт.

21

231-5146

FLANGE NUT,3/8"-16

10шт.

20

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch

10шт.
