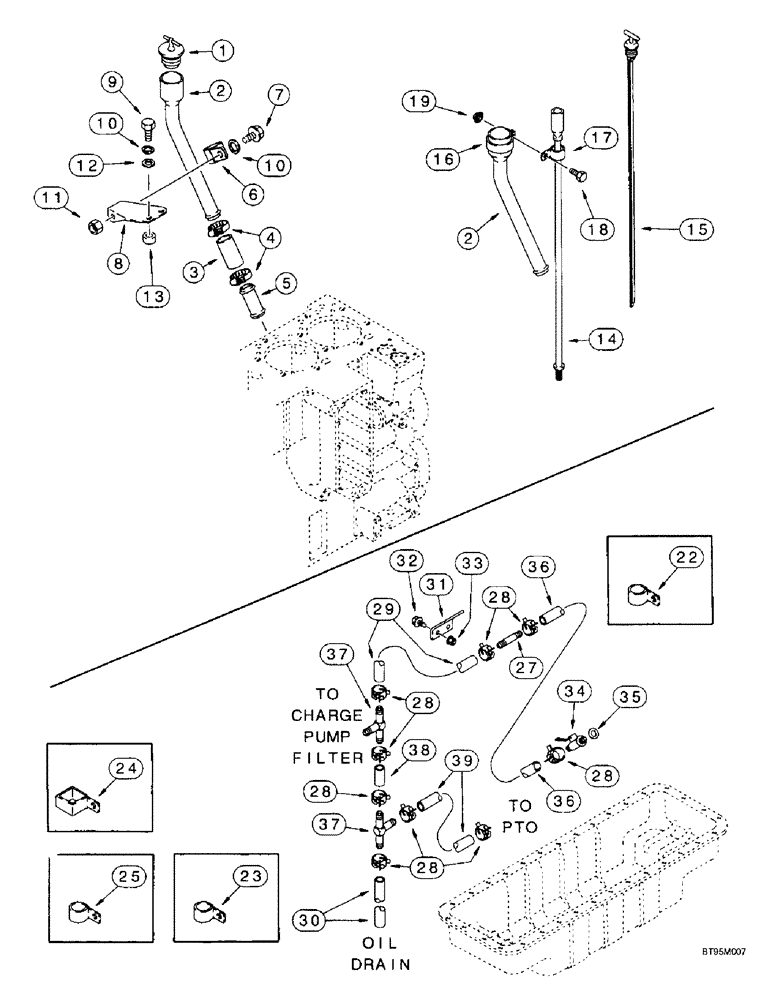

Запчасти Case IH 2166 (2-44) - ENGINE ATTACHING PARTS, OIL FILL TUBE AND DIPSTICK (01) - ENGINE

1

A77424

FILLER CAP

CAP - oil fill tube

1шт.

2

J914019

TUBE,34.92 mm OD x 59, 25 mm L

- oil fill, upper

1шт.

3

A77661

HOSE

- oil fill, 2-1/2 inch (65 mm) long

1шт.

4

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

CLAMP, HOSE, , Adjustable #28, 1.31/2.25 Type F Worm

2шт.

5

J914163

TUBE,35.23 mm OD x 90 mm L

- oil fill, lower

1шт.

6

J914022

CLAMP

- P-type, filler tube retaining

2шт.

7

613-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm

2шт.

8

J914020

BRACKET

- support

1шт.

9

613-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm

2шт.

10

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

11

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

2шт.

12

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

- flat, 9 x 17 x 2 mm, hardened

2шт.

13

102439A1

SPACER

- 13/32 x 1/2 x 3/8 inch

2шт.

14

118880A1

TUBE,9.52 mm ID, 809 mm Length

- dipstick

1шт.

15

118790A1

DIPSTICK

- oil gauge

1шт.

16

118788A1

CLAMP

- dipstick support

1шт.

17

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

P-type 1/2", Insul, 5/16" Bolt

1шт.

18

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

1шт.

19

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

22

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

P-type, Oil drain system 1 1/4", Insul, 3/8" Bolt

1шт.

23

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

P-type, Oil drain system 1 1/2", Insul, 3/8" Bolt

1шт.

24

1301387C2

CLIP

CLAMP - square, 2 inch ID, oil drain system

3шт.

25

515-25476

CLAMP,1 7/8", Insul, 1/2" Bolt

P-type, Oil drain system 1 7/8", Insul, 1/2" Bolt

3шт.

27

1301342C1

FITTING

ADAPTER - straight, special, oil drain system

1шт.

28

1954736C1

HOSE CLAMP,#24

CLAMP, HOSE, , Adjustable, Oil drain system #24

12шт.

29

1329977C2

HOSE,15.75 mm ID x 840.00 mm

Breather, Intermediate, Oil Drain System; Order1977295C1, and Cut to Required Length; See Below 15.75 mm ID x 840.00 mm

1шт.

30

1347069C1

FLEXIBLE HOSE,15.75mm ID x 1550mm L

HOSE, , Breather, Lower, Cut From 1977295CX Bulk Hose Below, Oil Drain System 15.75 mm ID x 1550.00 mm

1шт.

31

1977212C1

BRACKET

- oil drain shield, system

1шт.

32

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

Oil drain system Hex Flg, 3/8"-16 x 1", Serr

2шт.

33

231-5146

FLANGE NUT,3/8"-16

Oil drain system Flg, USR, 3/8"-16

2шт.

34

1330429C1

DRAIN VALVE

VALVE - oil drain system

1шт.

35

J920773

SEALING WASHER

WASHER - sealing, drain plug, crankcase oil drain, system

1шт.

36

1329978C3

HOSE

- oil drain, 18-1/8 inch (430 mm) long, system

1шт.

37

1977169C1

TEE

- oil drain system

2шт.

38

1347070C2

HOSE,15.75 mm ID x 75.00 mm

- drain, 3 inch (75 mm) long, cut from 1977295CX bulk hose below, oil system

1шт.

39

1977294C3

HOSE

- PTO drain, 22-7/8 inch (580 mm) long, cut from 1977295CX bulk hose below, oil system

1шт.

1977295CX

LARGE HOSE

HOSE - bulk, 5/8 (16) x 7/8 (22) x 600 inch (15240 mm) long, oil drain system

1шт.
