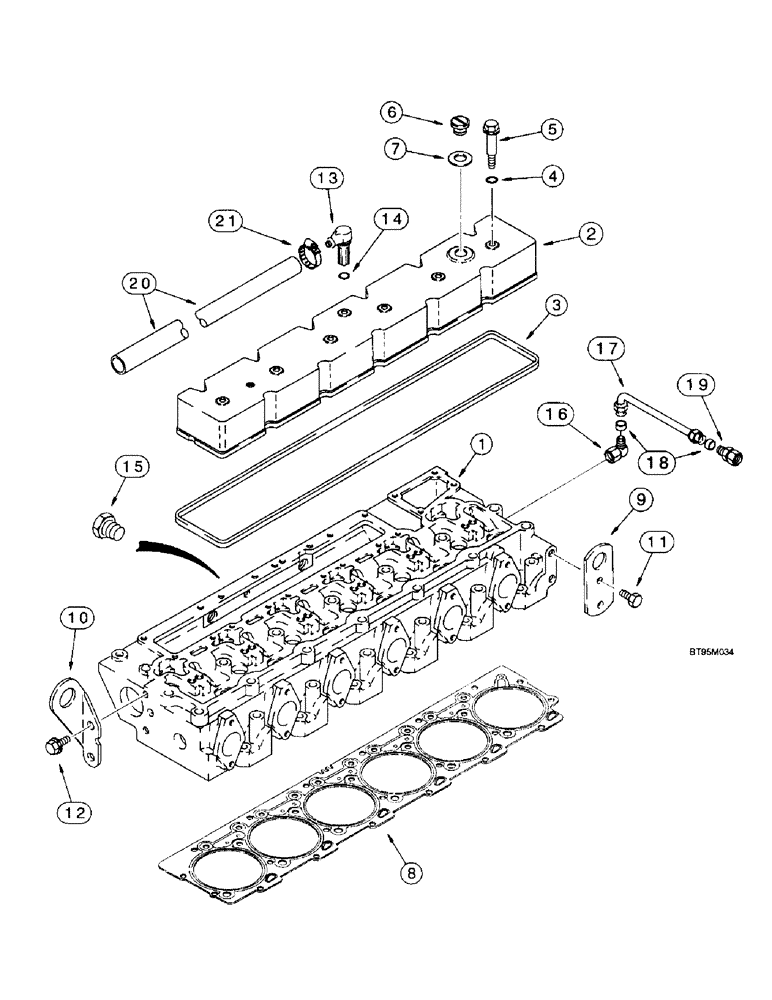

Запчасти Case IH 2166 (2-35A) - CYLINDER HEAD COVER & GASKET, 6TA-830 EMISSIONS CERTIFIED ENGINE, COMBINE P.I.N. JJC0180000 & AFTER (01) - ENGINE

1

REF

INSTRUCTION

HEAD - cylinder, parts list Figure 2-37C

1шт.

2

J927907

VALVE COVER

COVER - valve

1шт.

3

J905449

SEAL,7.179mm W x 2090mm L

SEAL - valve cover

1шт.

4

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- cover bolt

6шт.

5

J922639

STUD

- valve cover

6шт.

6

J902468

FILLER CAP,Male

CAP - oil filler

1шт.

7

J902466

SEAL,39.35mm ID x 59.35mm OD x 3mm Thk

RING - cap sealing

1шт.

8

J928168

GASKET

- cylinder head, standard

1шт.

8

J928180

GASKET

- cylinder head, 0.25 mm thicker

1шт.

8

J928181

GASKET

- cylinder head, 0.50 mm thicker

1шт.

9

J907861

LIFTING EYE

BRACKET - lifting, front

1шт.

10

J906440

LIFTING EYE

BRACKET - lifting, rear

1шт.

11

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm, Front lifting bracket to cylinder head

2шт.

12

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 25 mm, class 10.9, rear lifting bracket to cylinder head

2шт.

13

J920497

ELBOW

CONNECTOR - 90 degree, breather vent

1шт.

14

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

(Replaces J909397) -115, 70 Duro, .674" ID x .103" Thk

1шт.

15

J906619

PLUG,1/8" - 27

- hex, 1/8 inch PT

1шт.

16

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

- 90 degree, compression, 1/4 tube OD x 1/8 inch PT

1шт.

17

J924589

TUBE,6.35 mm OD x 112.6 mm L

ASSEMBLY - vent, air, to thermostat housing, Includes: Ref. 18

1шт.

18

222-153

SLEEVE,1/4" Tube

2шт.

19

222-22

FITTING,1/2"-24 x 1/8" NPTF w/Nut

ADAPTER - compression, 1/4 tube OD x 1/8 inch PT

1шт.

20

1541750C1

HOSE

- cylinder head breather, 148-1/16 inch (3760 mm) long, cut from 364360C1 bulk hose below, not part of engine assembly

1шт.

21

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

CLAMP, HOSE, , Adj., Not part of engine assembly #16, 0.81/1.50 Type F Worm

1шт.

364360C1

HOSE

- bulk, 3/4 (19) ID x 600 inch (15240 mm) long

1шт.
