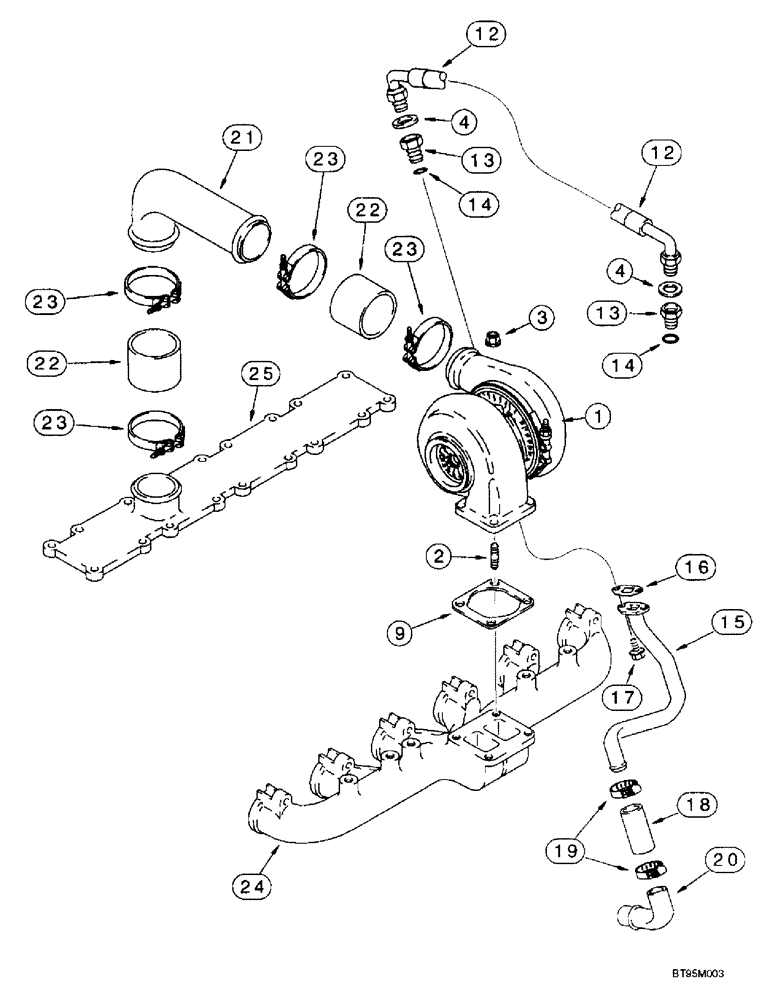

Запчасти Case IH 2166 (2-26) - TURBOCHARGER SYSTEM, 6T-830 ENGINE, PRIOR TO COMBINE P.I.N. JJC0180000 (01) - ENGINE

1

J919199

TURBOCHARGER

TURBOCHARGER ASSEMBLY - engine, new, parts list Figure 2-28

1шт.

1

JR802303

REMAN-TURBOCHARGER

2166, Reman For New P/N J919199

1шт.

1

JC528777

CORE-TURBOCHARGER

Return Part Number

1шт.

2

J818823

STUD

STUD - turbocharger mounting, M10 x 40

4шт.

3

J818824

FLANGE NUT

NUT - hex flange, special, 10 mm - 1.5, turbocharger mounting

4шт.

4

222-993

GASKET,3/8 Tube, Fl, Copper

GASKET, 3/8 Tube, Fl, Copper

2шт.

9

J911941

GASKET

GASKET - mounting, turbocharger

1шт.

12

J918562

HOSE

HOSE - oil supply, turbocharger, 21-3/16 inch (538 mm) long

1шт.

13

J919687

HYD CONNECTOR

ADAPTER - female hex, special, Includes: Ref. 14

2шт.

14

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

O-RING, -013, 70 Duro, .426" ID x .070" Thk

1шт.

15

J917936

TUBE,22.22 mm OD x 340.6, 108.7 mm L

TUBE - oil drain, upper

1шт.

16

J928919

GASKET

GASKET - turbo oil drain tube (Replaces gasket J914388)

1шт.

17

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT - heavy hex flange, 8 - 1.25 x 16 mm

2шт.

18

J903745

LARGE HOSE

HOSE,LARGE HOSE - turbocharger oil drain, 3 inch (76 mm) long

1шт.

19

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

CLAMP, HOSE, , Adj. #16, 0.81/1.50 Type F Worm

2шт.

20

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE - turbocharger oil drain, lower

1шт.

21

J906742

TUBE,63.5 mm OD

TUBE - air, crossover

1шт.

22

J916529

TRANSMISSION SLEEVE

HOSE - crossover tube, 3 inch (76 mm) long

2шт.

23

J924386

COLLAR CLAMP

CLAMP - adjustable, special

4шт.

24

J906741

MANIFOLD

MANIFOLD - exhaust, See Figure 2-24

1шт.

25

J906737

COVER ASSY

COVER - intake manifold, See Figure 2-24

1шт.
