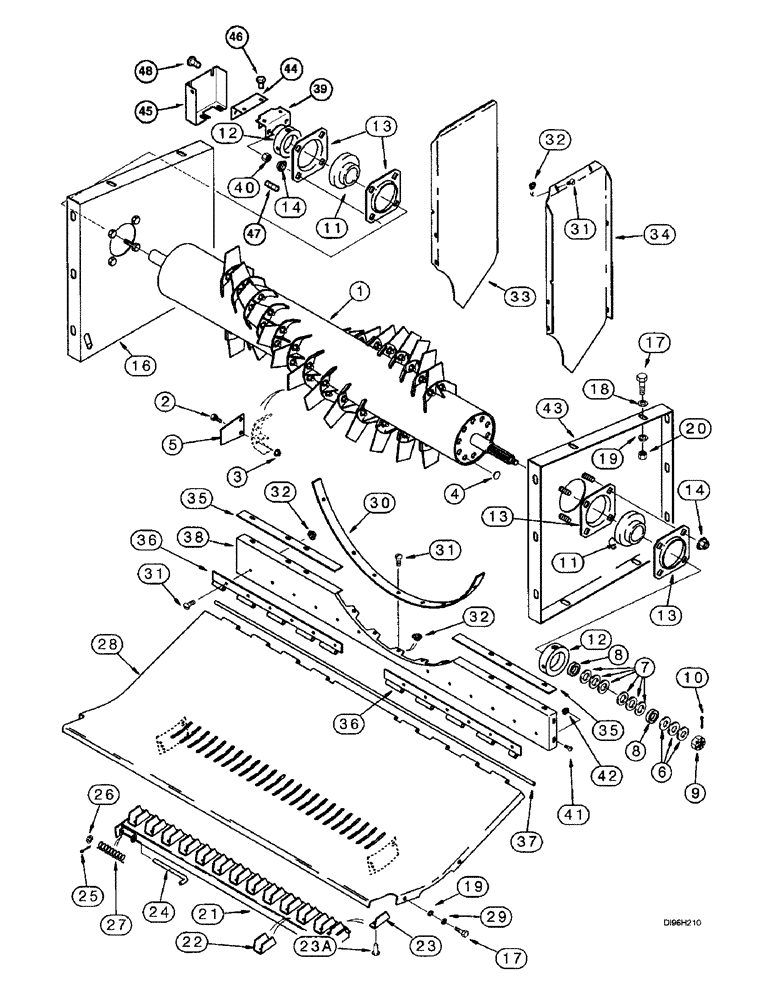

Запчасти Case IH 2166 (9F-14) - STRAW CHOPPER, ROTOR AND CONCAVE (19) - STRAW SPREADER & CHOPPER

1

185099C93

ROTOR ASSY.

ROTOR ASSEMBLY - straw chopper, Includes: Ref. 2 - 4

1шт.

2

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

56шт.

3

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

56шт.

4

1346984C1

PLUG

- plastic

18шт.

5

197124C1

PACKAGE

BLADE - straw chopper rotor, set of 2

14шт.

6

495-81063

WASHER,0.91" ID x 2" OD x 0.18" Thk

- flat, 29/32 x 2 x 5/32 inch

2шт.

6

495-81062

WASHER,0.91" ID x 2" OD x 0.12" Thk

- flat, 29/32 x 2 x 7/64 inch

1шт.

7

495-81211

WASHER,34.14mm ID x 50.8mm OD x 3.4mm Thk

- flat, 1-11/32 x 2 x 7/64 inch

6шт.

8

181156C1

SPACER

- rotor

2шт.

9

425-1314

SLOTTED NUT,7/8"-14, G5

NUT - hex, slotted, 7/8 inch NF

1шт.

10

432-828

COTTER PIN,1/8" x 1 3/4"

PIN, SPLIT (COTTER), 1/8" x 1 3/4"

1шт.

11

455111R91

BALL BEARING,38.113 mm ID x 52.25 mm OD x 24.32, 42.8 mm

BEARING - ball

2шт.

12

455112R11

COLLAR

- locking, bearing

2шт.

13

1307583C1

FLANGED BEARING

- bearing, if used

4шт.

13

663562R1

FLANGE

- bearing, if used

4шт.

13

241577A1

FLANGE

- bearing, if used

4шт.

14

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

8шт.

16

144704A1

SUPPORT

- rotor, left-hand

1шт.

17

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

19шт.

17

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

18

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

16шт.

19

492-11038

LOCK WASHER,3/8"

20шт.

20

425-106

NUT,3/8"-16, Cl 5

16шт.

21

185135C91

BAR

ASSEMBLY - straw chopper concave, Includes: Ref. 22 - 23A

1шт.

22

1302763C1

KNIFE

BLADE - double

12шт.

23

1302764C1

KNIFE

BLADE - single

1шт.

23a

104236

RIVET,4.76mm OD x 15.88mm L

26шт.

24

186736C3

ROD

PIN - latch

2шт.

25

432-616

COTTER PIN,3/32" x 1"

3/32" x 1"

2шт.

26

495-51041

WASHER,3/8"

- flat, 13/32 x 47/64 x 1/16 inch

1шт.

27

540815R2

SPRING

- latch pin

2шт.

28

185141C3

PLATE

PAN - straw chopper deflector

1шт.

REF #28- SEE PAGE 9C-6 FOR THE PARTS NEEDED FOR SPRING LOAD STRAWCHOPPER BAR ASSEMBLY COMPONENTS PER ALLEN J CASE#461760. JBEDFORD 9/11/97.

1шт.

29

496-41041

WASHER,13/32" x 1 1/8" x .134"

- flat, 13/32 x 1-1/8 x 9/64 inch, hardened

4шт.

30

182898C1

SUPPORT

PLATE - filler

1шт.

31

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

29шт.

32

231-5146

FLANGE NUT,3/8"-16

29шт.

33

182946C1

DEFLECTOR

- discharge, left-hand

1шт.

34

182947C1

DEFLECTOR

- discharge, right-hand

1шт.

35

182891C1

PLATE

- bulkhead filler, rear

2шт.

36

182894C1

HINGE

- pan

2шт.

37

182977C1

ROD

- lower hinge

1шт.

38

182929C1

SUPPORT

- cage, lower rear

1шт.

39

144706A3

SUPPORT

BRACKET - sensor mounting

1шт.

40

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

2шт.

41

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

10шт.

42

231-5146

FLANGE NUT,3/8"-16

10шт.

43

144705A1

SUPPORT

- rotor, right-hand

1шт.

44

248583A1

SUPPORT

- sensor, outer cover, Australia only

1шт.

45

181208C3

SUPPORT

COVER - sensor, Australia only

1шт.

46

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

BOLT - serrated slotted truss head, 1/4 NC x 1/2 inch, Australia only

2шт.

47

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, Australia only

2шт.

48

280-1478

SELF-TAP SCREW,HWH, 1/4-14 x 1/2"

SCREW - self-tapping, hex washer head, 1/4-14 x 1/2 inch, Australia only

2шт.
