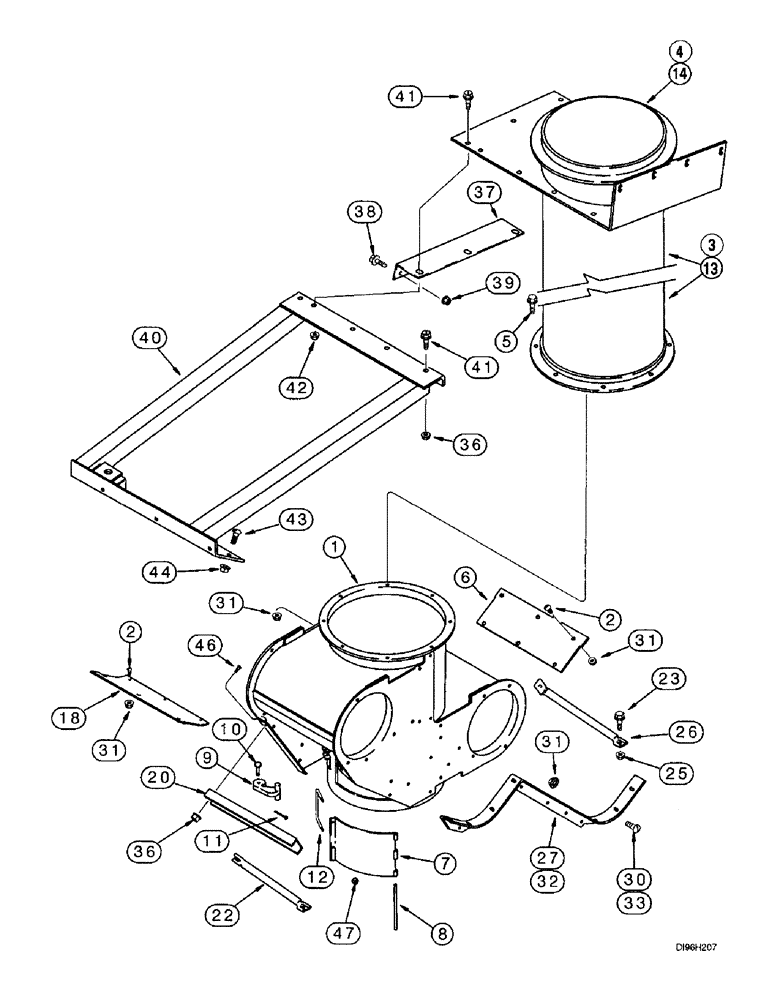

Запчасти Case IH 2166 (9E-22) - LOWER GRAIN TANK, UNLOADER HOUSING (17) - GRAIN TANK & UNLOADER

1

192475C3

HOUSING

- unloader, lower

1шт.

2

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

28шт.

3

1338394C1

TUBE

ASSEMBLY - auger, prior to combine P.I.N. JJC0182025, Includes: Ref. 4

1шт.

4

178134C2

RING

- tube

1шт.

5

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

8шт.

6

191087C1

PLATE

COVER - unloader housing, front bottom

1шт.

7

189284A1

DOOR

- auger, lower, Includes: decal, See Figure 9H-37 for decal

1шт.

8

393069R1

PIN,6.35mm OD x 147.3mm L

ROD - pivot

1шт.

9

155909C1

LATCH

- door

1шт.

10

439-1420

HEADED PIN,1/4" x 1 1/4"

PIN - headed, 1/4 x 1-1/4 inch, grade 2

1шт.

11

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

12

195332C1

U-BOLT,1/4" - 20 x 2 1/2", Low Carbon Steel

BOLT - U-type

1шт.

13

248307A1

UNLOADING TUBE,647.7 mm Length

TUBE ASSEMBLY - auger, combine P.I.N. JJC0182025 and after, Includes: Ref. 14 & 14A

1шт.

14

237009A1

RING

- tube

1шт.

14a

49-516

RIVET,Tr Hd, 5/16" x 1"

- truss head, 5/16 x 1 inch, not shown

12шт.

18

191110C1

COVER

COVER - unloader housing, rear bottom

1шт.

20

192834C1

CHANNEL

- support

1шт.

22

192848C1

ROD

SUPPORT - rear housing

1шт.

23

409-7624

BOLT,Hex Flg, 3/8" - 16 x 1 1/2", Spcl

2шт.

25

231-5146

FLANGE NUT,3/8"-16

2шт.

26

192847C1

ROD

SUPPORT - front housing

1шт.

27

192828C1

SUPPORT

- housing, left-hand

1шт.

30

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

20шт.

31

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

58шт.

32

192829C1

SUPPORT

- housing, right-hand

1шт.

33

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

2шт.

36

231-5146

FLANGE NUT,3/8"-16

9шт.

37

1338393C2

ANGLE

SUPPORT - vertical auger

1шт.

38

450-73816

SERRATED SCREW,Truss HD, 3/8" - 16 x 1"

BOLT - serrated Phillips truss head, 3/8 NC x 1 inch (Replaces screw 1319406C1)

3шт.

39

231-5146

FLANGE NUT,3/8"-16

3шт.

40

176208A1

SUPPORT

- unloader cylinder

1шт.

41

409-7612

BOLT,3/8"-16 x 1.09" OAL

10шт.

42

231-5146

FLANGE NUT,3/8"-16

3шт.

43

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

BOLT - serrated slotted truss head, 5/16 NC x 1 inch

7шт.

44

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

7шт.

46

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

2шт.

47

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

2шт.
