Запчасти Case IH 2166 (9E-08) - GRAIN TANK, LOWER AUGERS (17) - GRAIN TANK & UNLOADER

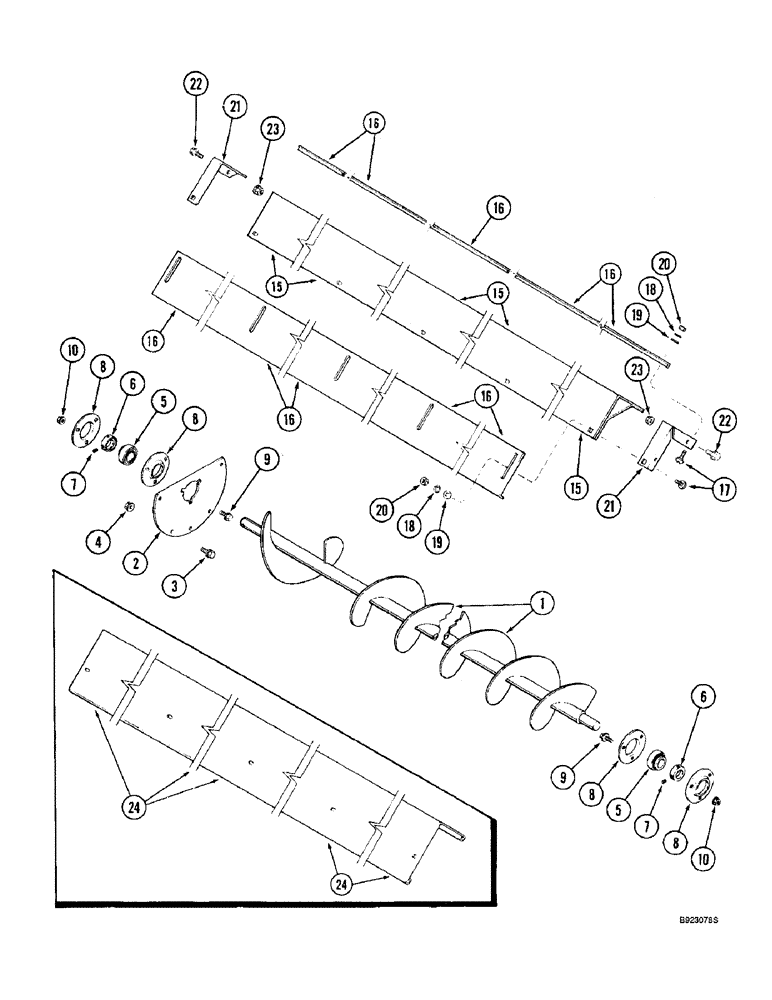

Схема запчастей Case IH 2166 - (9E-08) - GRAIN TANK, LOWER AUGERS (17) - GRAIN TANK & UNLOADER
7
15
19
23
9
10
16
20
8
15
16
22
8
4
22
18
2
3
23
5
16
19
24
1
17
18
9
20
24
21
16
7
10
16
8
8
6
16
21
15
6
5

Артикул

Название

Примечание

Количество

1

192784C2

AUGER

- grain tank, lower

2шт.

2

192789C1

RETAINER

- lower auger

2шт.

3

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

10шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

10шт.

5

204807C91

BEARING ASSY,25.4mm ID x 52mm OD x 15mm W

BEARING - ball

4шт.

6

455102R21

COLLAR

ASSEMBLY - locking, bearing, Includes: Ref. 7

4шт.

7

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - set, hex socket headless, 1/4 NC x 1/4 inch, cup point

1шт.

8

462360R1

FLANGED BEARING

- bearing

8шт.

9

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

12шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

12шт.

15

1321082C5

COVER

- auger

2шт.

16

1321089C1

PLATE

EXTENSION - auger cover

4шт.

17

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

BOLT - carriage, 5/16 NC x 1 inch

20шт.

18

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

20шт.

19

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

20шт.

20

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

20шт.

21

1321242C1

SUPPORT

- auger cover, end

4шт.

22

409-7612

BOLT,3/8"-16 x 1.09" OAL

8шт.

23

231-5146

FLANGE NUT,3/8"-16

8шт.

24

1979940C3

COVER

- rear cross auger

1шт.

Выбрано товаров: 20
